Barco EN16

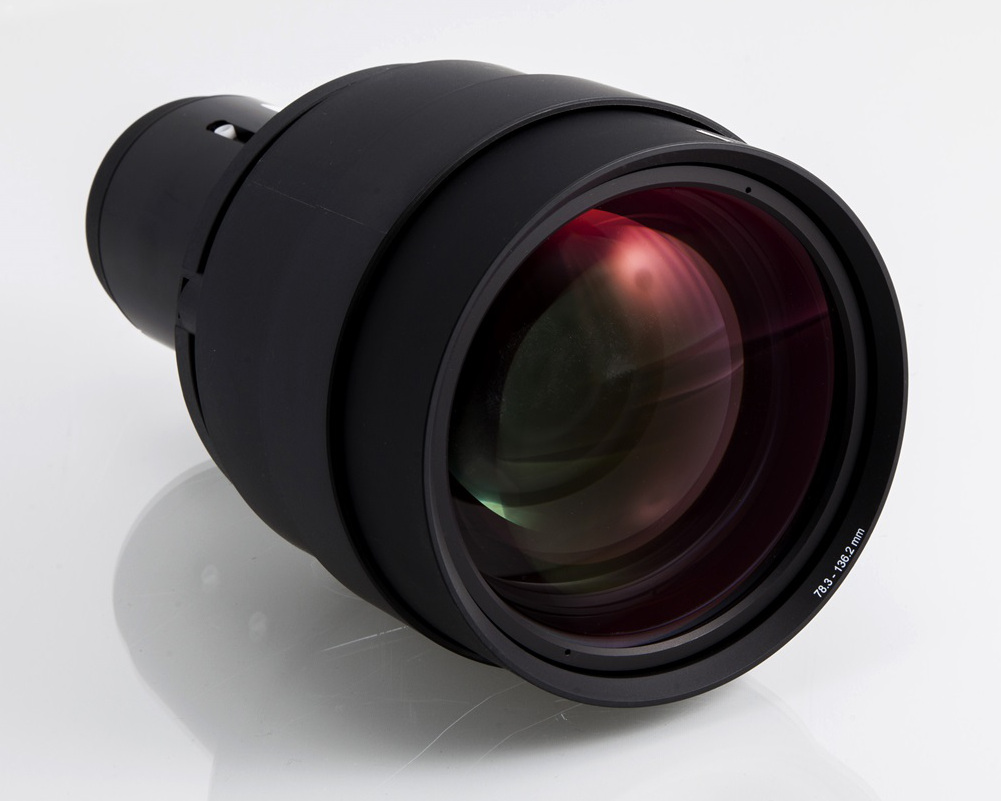

Barco/PD FLD/EN16 Super Tele Zoom Lens, 4.10-7.10:1
Part #: 0601-0695    Mfr #: R9801249

Barco EN16

Specifications

EN16 Super Tele Zoom Lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



Specifications

Working F/# F 2.1 – 2.66
Motorized Iris F# 2.1 – 6.5
Zoom Ratio 1.74
Motorized zoom and focus
Focal Length 78.3 – 136.2 mm
Focus Range Standard: 4m – 40m
Custom Focus Range Extended focus range is available, please contact sales for details
Weight 2.5 kg (5.51 lbs)
Throw Ratio DMD chip
  • 1080p/WUXGA 3.8 – 6.5:1
  • SXGA+ 4.1 – 7.1:1
  • 720p 4.5 – 7.8.1
  • XGA 5.6 – 9.7:1
Image size tolerance ±5%

Same Series Lenses

Model EN12 EN15 EN13 EN11 EN14 EN16
  Barco EN12 lens Barco EN15 lens Barco EN13 lens Barco EN11 lens Barco EN14 lens Barco EN16 lens
 D:W
WUXGA
0.74:1 1.16:1 1.24  1.6:1 1.60 – 2.32:1 2.37 – 3.79:1 3.8 – 6.5:1
 D:W
1080p
0.74:1 1.16:1 1.24  1.6:1 1.60 – 2.32:1 2.37 – 3.79:1 3.8 – 6.5:1
 D:W
SXGA+
0.81:1 1.25:1 1.34  1.74:1 1.73 – 2.51:1 2.56 – 4.1:1 4.1 – 7.1:1
 D:W
720p
0.93:1 1.37:1 1.46  1.9:1 1.89 – 2.75:1 2.8 – 4.49:1 4.5 – 7.8:1
 D:W
XGA
1.17:1 1.71:1 1.83  2.37:1 2.37 – 3.43:1 3.5 – 5.6:1 5.6 – 9.7:1
f/stop 2.10 2.10 2.10 – 2.22 2.10 – 2.52 2.10  2.72 2.10 – 2.66
