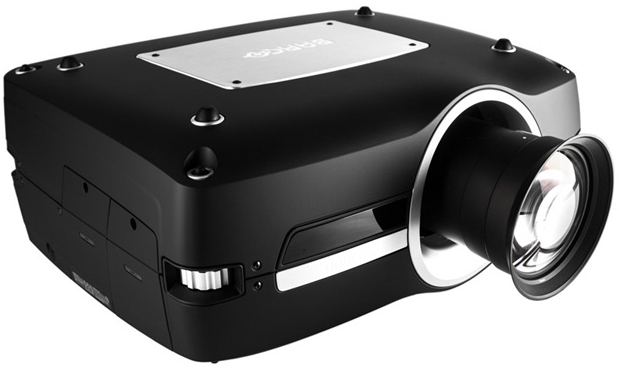

Barco F85

3-DLP Projector, 1920x1200 WUXGA 11,000 Lumens, No Lens, 3 year warranty
Part #: 0601-0738    Mfr #: F85

Features

The F85 is a compact 3-chip DLP projector that is suitable for 24/7 operation in both rental and fixed installations. Thanks to its active or passive 3D up to 120 Hz, the F85 is equally perfect for simulation applications for oil and gas, automotive prototyping and scientific research. What's more, it provides a low total cost of ownership.

High-class performance and image quality

The F85 pairs high-class performance with ultimate reliability in a compact form factor. It is available with a large range of lenses that cover different focal distances for true flexibility. Featuring high brightness levels, optical color filtering for accurate colors, 3D stereo and configurable X-PORT™ I/O and image processing, unequaled image quality is guaranteed at all times.  To tailor your F85 to your specific application, you can choose from WUXGA and 1080p resolution, as well as a special projector type that can optically switch between REC709 and DCI P7 color spaces.

Features

  • 3-chip DLP® Technology
  • Active 3D stereo at up to 120 Hz
  • Up to 11,000 lumens
  • X-PORT™ module connectivity
  • Designed for 24/7 operation
  • WUXGA or 1080p resolution
  • Dual 400W UHP™ lamps
  • Advanced Color Optical Processing (ACOP)
  • RealColor™ color management
  • Up to five years warranty
  • Wide range of Ultra High Quality projection lenses

Specifications

Specifications

Concept Three-chip, powered lens shift system with user adjustable optical colour processing filters.
3D capability Active Stereo
Resolution 1080p (1,920 x 1,080), WUXGA (1,920 x 1,200)
Brightness Up to 11,000 lumens (user-configurable through lamp power and voice coil operated IRIS adjustment)
Contrast Up to 15,000 : 1 (Fixed user-adjustable through voice coil operated IRIS F2-6 - 7.0 or user activated adapative dynamic IRIS feature)
Technology Three-chip DLP® projector with APOC optical color processing and user-selectable optical color space (sRGB, REC709 or optionally DCI). Individual color filters are available for R, G, and B channels for optimum color accuracy and full flexibility.
Aspect ratio 16:9 (1080p), 16:10 (WUXGA)
Display colors 30-bit RGB
Latency ~19 ms
Computer graphics formats 2,560 x 1,600 - 640 x 480 pixel resolution / RGBHV, RGBS, RGsB / custom formats available
Horizontal scan frequencies 10 - 150kHz
Vertical scan frequencies 48 – 190 HZ (resolution dependant)
Video formats EDTV (576p, 480p), SDTV (576i, 480i), HDTV (1080p, 1080i, 720p), NTSC, PAL, SECAM
Lens operation Motorized zoom, focus, shift, iris and mechanical shutter
Lenses
  • Standard projection lens EN21
  • Ultra Wide Angle lens EN22 lens
  • Wide Angle Zoom EN23 lens
  • Short Tele Zoom EN24 lens
  • Long Tele Zoom EN23 lens
Image width 2 - 10 m
Light source 400W UHP replacement lamp 1 / 400W UHP replacement lamp 2
Lamp lifetime Up to 1,500 hours (full power) / Up to 2,000 hours (eco mode)
Computer inputs 2 x DVI-D, 2 x HDMI 1.3a, 2 x VGA, 1 x 5-BNC
Video Input 1 x HDMI 1.3a, 1 x YPbPr, 1 x S-video, 1 x Composite
Control possibilities 1 x RJ-45 TCP/IP, 1 x 9-pin D-SUB RS232, 1 x USB, 2 x 12V programmable trigger (3.5mm mini jack)
Dimensions 604 x 250 x 462 mm (WxHxD)
Weight 24.1 kg
Shipping Dimensions 820 x 420 x 720 mm (WxHxD)
Shipping Weight from Factory 32 kg
Power requirements 100-240 V / 207 - 264 VAC, 50-60 Hz / Max 1,080 W / 4.7 A @ 230 V, 4.7 A @ 240 V, 11.3A @ 100V
Conformances CE, FCC Class A, UL and cUL
Operating temperature 10 - 40 °C
Storage temperature -20 - 60 °C
Altitude Up to 3,000 m
Color Soft touch rubber matte black
Warranty 3 years, 500 hours or 90 days on lamp (whichever comes first). Up to 5 years total warranty available. Conditions apply.
MTBF 24,184 hours
BTU per hour <3,520

Options

Lenses

Long tele zoom EN26
R9801250
Short tele zoom EN24
R9801210
Standard zoom EN21
R9801215
Ultra wide angle fixed EN22
R9801219
Wide angle zoom EN23
R9801229
Ultra wide angle zoom EN29
R9801294

Lamps

400W Replacement lamp number 2
R9801277
400W replacement lamp number 1
R9801276

Processor

WB1920 Image Processor
R9801223
WB2560 Image Processor
R9801224

Accessories

Stacking kit
R9801213
Projector Toolset
R9850559

Modules

X-PORT 3G-SDI
R9801231
X-PORT™ DCC 120 (Dual Channel Combiner, 3D)
R9801232
