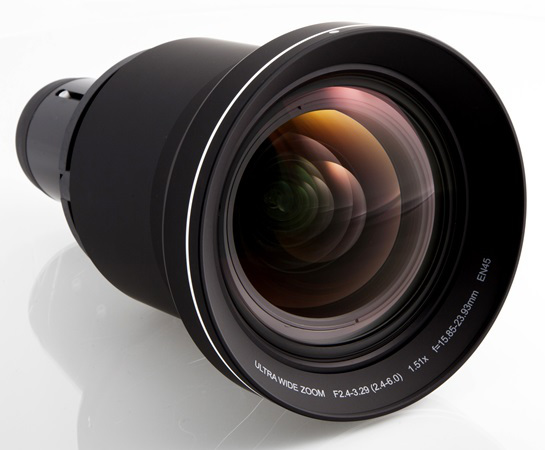

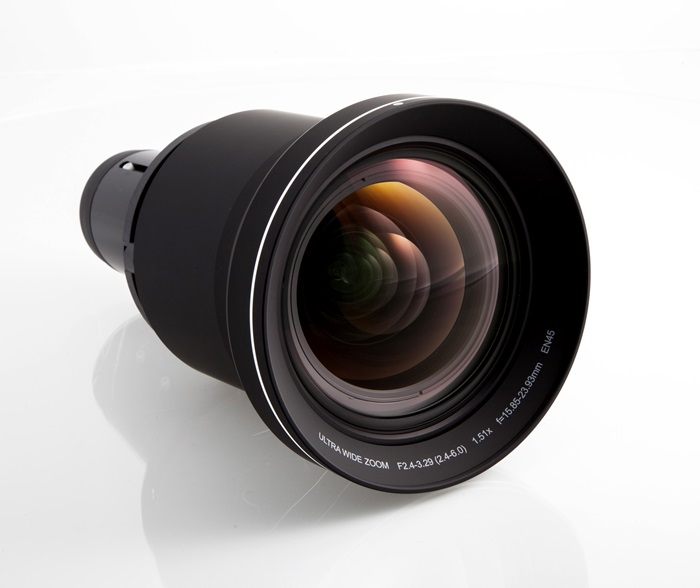

Barco EN45

FLD+ Ultra-Wide Angle High-Resolution Zoom Lens, 5-30 meter focal range
Item #0601-0785 Model #R9801220

Specifications

Barco R9801220

EN45 FLD+ Ultra-Wide Angle High Resolution Zoom Lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector. F80 Series projectors require lens adapter R9801442 to use this lens.



Throw Ratio DMD chip
  • SX+:                        0.81  1.22:1
  • 1080p/WUXGA:         0.75  1.13:1
  • WQXGA (0.89" chip): 0.80 – 1.21:1
  • WQXGA (0.64" chip): 1.12 – 1.70:1 (F80 legacy)
  • WQXGA+:                 1.06  1.60:1 (F80 new)
Image size tolerance ±2%
Working F/# F 2.43.29
Motorized Iris F# 2.46.5
Zoom Ratio 1.51
Motorized zoom and focus
Focal length 15.85 – 23.93 mm
Focus Range Optical Performance: 16.4' – 98.4' (5 – 30 m)
Custom focus range Extended focus range is available, please contact sales for details
Weight 6.70 lbs (3.04 kg)

Same Series Lenses

FLD+ Lenses

 P/N R9802232 R9801295 R9801226 R9801220 R9801221 R9801230 R9801216 R9801211
Model EN68 EN47 EN42 EN45 EN46 EN43 EN41
Std Lens
EN44
  Barco R9802232 (EN68) lens Barco EN46 lens Barco EN43 lens
D:W WUXGA 0.28:1 0.61:1 0.75:1 0.75  1.13:1 0.75  1.13:1 1.12 – 1.58:1 1.58 – 2.33:1 2.33 – 4.30:1
D:W WQXGA¹
0.90" chip
0.30:1 0.65:1 0.80:1 0.80 – 1.21:1 0.80 – 1.21:1 1.20 – 1.70:1 1.70 – 2.50:1 2.50  4.60:1
D:W WQXGA²
0.64" chip
0.91:1 1.12:1 1.12  1.70:1 1.68 – 2.38:1 2.38 – 3.51:1 3.51 – 6.45:1
D:W WQXGA+³ 0.85:1

1.06:1

1.06 – 1.60:1

1.58 – 2.25:1

2.25 – 3.30:1

3.30 – 6.08:1

f/stop 2.5 2.1 2.1 2.4–3.29 2.4–3.29 2.42.7 2.1–2.5 2.1–2.93
Notes Motorized Motorized Motorized, Long Focus Motorized, Short Focus Motorized Motorized Motorized



¹ For F70-4K4, F70-4K6, F70-4K8, F90-4K13

² For old F80 Series

³ For new F80 Series
