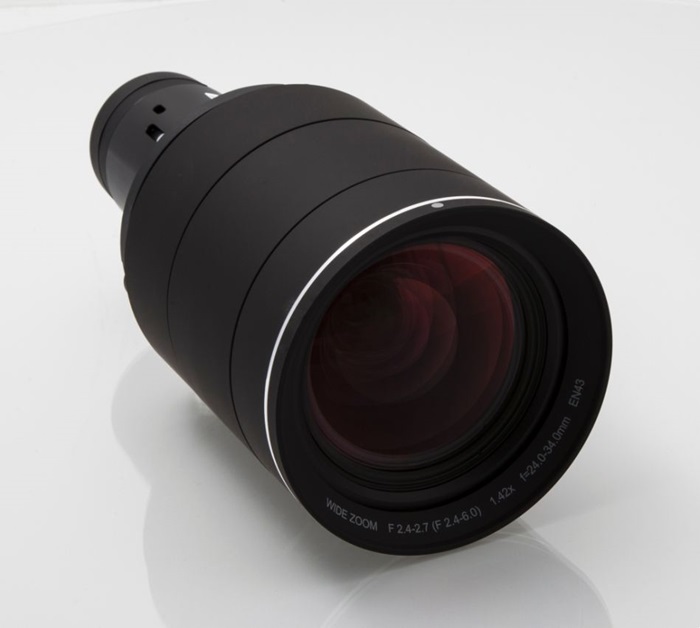

Barco EN43
Barco/PD EN43 FLD+ Wide Angle High-Resolution Zoom Lens, D:W 1.2-1.7:1
Item #0601-0797 Model #503022400
Specifications
| Working F/# | F 2.4-2.7 Motorized Iris F# 2.4-6.5 |
|---|---|
| Throw Ratio | DMD chip
|
| Zoom ratio | 1.42 Motorized zoom and focus |
| Focal length | 23.95- 34.02 mm |
| Focus Range | 1.5-15 m |
| Custom focus range | Extended focus range is available, please contact sales for details |
| Weight | 2.84 kg |
Same Series Lenses
FLD+ Lenses
| P/N | R9802232 | R9801295 | R9801226 | R9801220 | R9801221 | R9801230 | R9801216 | R9801211 |
| Model | EN68 | EN47 | EN42 | EN45 | EN46 | EN43 | EN41 Std Lens |
EN44 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA | 0.28:1 | 0.61:1 | 0.75:1 | 0.75–1.13:1 | 0.75–1.13:1 | 1.12–1.58:1 | 1.58–2.33:1 | 2.33–4.30:1 |
| D:W WQXGA¹ 0.90" chip |
0.30:1 | 0.65:1 | 0.80:1 | 0.80–1.21:1 | 0.80–1.21:1 | 1.20–1.70:1 | 1.70–2.50:1 | 2.50–4.60:1 |
| D:W WQXGA² 0.64" chip |
— | 0.91:1 | 1.12:1 | 1.12–1.70:1 | — | 1.68–2.38:1 | 2.38–3.51:1 | 3.51–6.45:1 |
| D:W WQXGA+³ | — | 0.85:1 |
1.06:1 |
1.06–1.60:1 |
— |
1.58–2.25:1 |
2.25–3.30:1 |
3.30–6.08:1 |
| f/stop | 2.5 | 2.1 | 2.1 | 2.4–3.29 | 2.4–3.29 | 2.4–2.7 | 2.1–2.5 | 2.1–2.93 |
| Notes | Motorized | Motorized | Motorized, Long Focus | Motorized, Short Focus | Motorized | Motorized | Motorized |
¹ For F70-4K4, F70-4K6, F70-4K8, F90-4K13
² For old F80 Series
³ For new F80 Series
