Barco EN69
Specifications
Barco R9802237

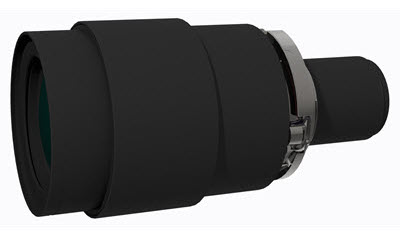

EN69 FLDX Ultra Long Throw Lens
Please check the Compatibility tab to make sure that this lens is compatible with your projector. F80 Series projectors require lens adapter R98014421 to use this lens.
| Throw Ratio | DMD chip WUXGA: 6.50 – 9.01:1 WQXGA (0.89" chip): 6.97 – 9.66:1 WQXGA (0.64" chip): 9.75 – 13.50:1 (F80 legacy) WQXGA+: 9.19 – 12.73:1 (F80 new) |
|---|---|
| Aperture | F 2.1 – 2.89 Motorized Iris F# 2.1 – 6.0 |
| Lens Memory | Yes |
| Focal length | TBD |
| Lens Offset | Vertical: ±125%; Horizontal: ±62% (FL40, F70 and F90 Series Projectors) Vertical: ±125%; Horizontal: ±53% (Legacy F80 Series Projectors) Vertical: ±125%; Horizontal: ±53% (New F80 Series Projectors) |
| Brightness | 95% (Wide Angle); 70% (Tele Photo) |
| MTF | 66 lp/mm |
Same Series Lenses
FLDX Lenses
| P/N | R9801832 | R9802244 | R9802010 | R9802243 | R9802003/R9010091 | R9802242 | R9802241 | R9802473 | R9802237 |
| Model | 0.38:1 UST 90° | EN67 | EN62 | EN66 | EN76/EN76-M | EN63 | EN61 | EN64 | EN69 |
 |
 |
 |
 |
 |
|
|
 |
.jpg){kind=small} |
|
| D:W 4K1 | 0.36:1 |
0.53:1 |
0.70:1 |
0.71–1.06:1 |
0.83–1.14:1 |
1.06–1.50:1 |
1.48–2.18:1 |
2.19–4.05:1 |
— |
| D:W WUXGA2 | 0.38:1 |
0.61:1 |
0.75:1 |
0.75–1.13:1 |
0.89–1.21:1 |
1.12–1.58:1 |
1.58–2.33:1 |
2.33–4.30:1 |
6.50–9.01:1 |
| D:W WQXGA3 0.89" chip |
0.41:1 |
0.65:1 |
0.80:1 |
0.80–1.21:1 |
0.95–1.30:1 |
1.20–1.70:1 |
1.70–2.50:1 |
2.50–4.60:1 |
6.97–9.66:1 |
| D:W WQXGA4 0.64" chip |
0.57:1 |
0.91:1 |
1.12:1 |
1.12–1.70:1 |
1.33–1.82:1 |
1.68–2.38:1 |
2.38–3.51:1 |
3.50–6.45:1 |
9.75–13.50:1 |
| D:W WQXGA+5 0.67" chip |
0.54:1 |
0.85:1 |
1.06:1 |
1.06–1.60:1 |
1.25–1.72:1 |
1.59–2.24:1 |
2.25–3.30:1 |
3.30–6.08:1 |
9.19–12.73:1 |
| f/stop | 2.40 | 2.1 | 2.1 | 2.4–3.29 | 2.1–2.32 | 2.4-2.7 | 2.1–2.5 | 2.04–2.87 | 2.10–2.93 |
| Notes | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
