Barco EN61

FLDX D:W 1.7-2.5:1 Zoom Lens (R9802241)
Item #0601-0822 Model #R9802241

Specifications

Barco R9802241

EN61 FLDX D:W 1.7-2.5:1 Zoom Lens

The EN61 lens is intended for the Fx400 (with lens adapter R9802623), as well as Fx40/Fx70/F90 series, and can also be used on the Barco F80-series (with lens adapter R98014421).

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



Throw Ratio

DMD chip

  • Native 4K (0.98" chip)1: 1.48–2.18:1
  • WUXGA (0.96" chip)2:    1.58–2.33:1
  • WQXGA (0.90" chip)3:    1.70–2.50:1
  • WQXGA (0.64" chip)4:    2.38–3.51:1
  • WQXGA+(0.67" chip)5:   2.25–3.30:1
  • Image size tolerance: ±2%
Working F/# F 2.1 – 2.5
Motorized Iris F# 2.1 – 6.5 with memory
Zoom ratio 1.47
Motorized zoom and focus with memory
Focal length 33.7 – 49.54 mm
Focus Range Standard: 4.9' – 49.2' (1.5 – 15 m)
Weight  5.7 lbs (2.6 kg)
Shipping weight  6.8 lbs (3.1 kg)

1 For Fx400 N4K (requires lens adapter R9802623)

2 For F40 W, F70 W, F90 W

3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)

4 For legacy F80 Series (requires lens adapter R98014421)

5 For new F80 Series (requires lens adapter R98014421)

Same Series Lenses

FLDX Lenses

 P/N  R9801832 R9802244 R9802010 R9802243 R9802003/R9010091 R9802242  R9802241 R9802473 R9802237
Model 0.38:1 UST 90° EN67 EN62 EN66 EN76/EN76-M EN63 EN61 EN64 EN69

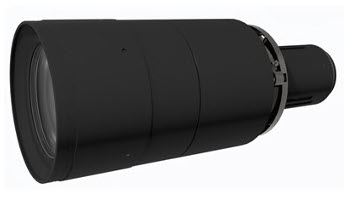

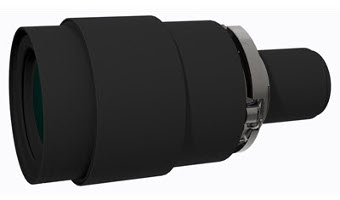

  EN67 lens EN62 lens EN76/EN76-M lenses EN64 lens EN69 lens
D:W 4K1 0.36:1

0.53:1

 0.70:1

0.71–1.06:1

 0.83–1.14:1

1.06–1.50:1

1.48–2.18:1

 2.19–4.05:1

—
D:W WUXGA2 0.38:1

0.61:1

0.75:1

0.75–1.13:1

0.89–1.21:1

1.12–1.58:1

1.58–2.33:1

2.33–4.30:1

6.50–9.01:1
D:W WQXGA3
0.89" chip 		 0.41:1

0.65:1

0.80:1

 0.80–1.21:1

0.95–1.30:1

1.20–1.70:1

1.70–2.50:1

2.50–4.60:1

6.97–9.66:1
D:W WQXGA4
0.64" chip		  0.57:1

0.91:1

1.12:1

1.12–1.70:1

1.33–1.82:1

1.68–2.38:1

2.38–3.51:1

3.50–6.45:1

9.75–13.50:1
D:W WQXGA+5
0.67" chip		 0.54:1

0.85:1

1.06:1

1.06–1.60:1

1.25–1.72:1

1.59–2.24:1

2.25–3.30:1

3.30–6.08:1

9.19–12.73:1
f/stop 2.40 2.1 2.1 2.4–3.29 2.1–2.32 2.4-2.7 2.1–2.5 2.04–2.87 2.10–2.93
Notes Motorized Motorized Motorized Motorized Motorized Motorized Motorized Motorized



1 For Fx400 N4K (requires lens adapter R9802623)

2 For F40 WU, F70 W, F90 W

3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)

4 For legacy F80 Series (requires lens adapter R98014421)

5 For new F80 Series (requires lens adapter R98014421)
