Barco EN62
Overview

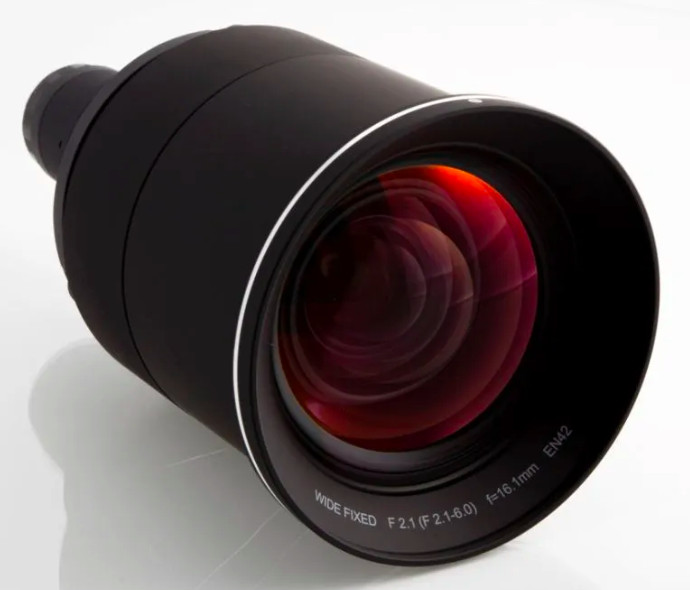

Barco R9802010
EN62 FLDX D:W 0.8:1 Wide Angle Fixed Lens
The Barco EN62 (R9802010) is a new, high-resolution all-glass lens replacing the EN42 and NV42. It comes with motorized and index-based iris and focus to allow for an accurate set/get value. It is also optimized for night vision and IR transmission for training using NVGs.
The EN62 lens is intended for the Fx400 (with lens adapter R9802623), as well as Fx40/Fx70/F90 series, and can also be used on the Barco F80-series (with lens adapter R98014421 and specific software).
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Specifications
| Lens type | Wide angle lens (on-axis) with indexing encoders |
|---|---|
| Throw Ratio |
DMD chip
|
| Working F/# | F 2.1 Motorized Iris F# 2.1-6.5 |
| Zoom ratio | N/A |
| Focal length | 16.12 mm |
| Focus Range | Optical Performance: 2.3–23.0 ft (0.7–7 m) Mechanical: 1.6–32.8 ft (0.5–10 m) |
| Dimensions (WxHxD) | 10.2" x 10.6" x 16.1" (260 x 270 x 410 mm) |
| Weight | 6.0 lb (2.7 kg) |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
Same Series Lenses
FLDX Lenses
| P/N | R9801832 | R9802244 | R9802010 | R9802243 | R9802003/R9010091 | R9802242 | R9802241 | R9802473 | R9802237 |
| Model | 0.38:1 UST 90° | EN67 | EN62 | EN66 | EN76/EN76-M | EN63 | EN61 | EN64 | EN69 |
 |
 |
 |
 |
 |
|
|
 |
.jpg){kind=small} |
|
| D:W 4K1 | 0.36:1 |
0.53:1 |
0.70:1 |
0.71–1.06:1 |
0.83–1.14:1 |
1.06–1.50:1 |
1.48–2.18:1 |
2.19–4.05:1 |
— |
| D:W WUXGA2 | 0.38:1 |
0.61:1 |
0.75:1 |
0.75–1.13:1 |
0.89–1.21:1 |
1.12–1.58:1 |
1.58–2.33:1 |
2.33–4.30:1 |
6.50–9.01:1 |
| D:W WQXGA3 0.89" chip |
0.41:1 |
0.65:1 |
0.80:1 |
0.80–1.21:1 |
0.95–1.30:1 |
1.20–1.70:1 |
1.70–2.50:1 |
2.50–4.60:1 |
6.97–9.66:1 |
| D:W WQXGA4 0.64" chip |
0.57:1 |
0.91:1 |
1.12:1 |
1.12–1.70:1 |
1.33–1.82:1 |
1.68–2.38:1 |
2.38–3.51:1 |
3.50–6.45:1 |
9.75–13.50:1 |
| D:W WQXGA+5 0.67" chip |
0.54:1 |
0.85:1 |
1.06:1 |
1.06–1.60:1 |
1.25–1.72:1 |
1.59–2.24:1 |
2.25–3.30:1 |
3.30–6.08:1 |
9.19–12.73:1 |
| f/stop | 2.40 | 2.1 | 2.1 | 2.4–3.29 | 2.1–2.32 | 2.4-2.7 | 2.1–2.5 | 2.04–2.87 | 2.10–2.93 |
| Notes | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
