Barco EN67
Overview

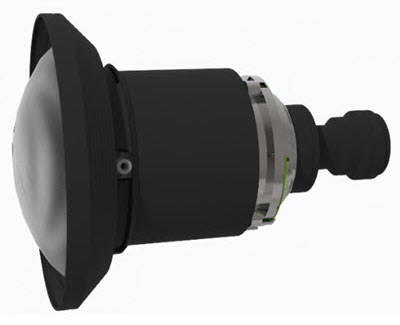

Barco R9802244
EN67 FLDX D:W 0.61:1 Fixed Lens
The Barco EN67 (R9802244) lens is optimized for WQXGA resolution and comes with encoders for accurate positioning of focus and iris.
The EN67 lens is intended for the Fx400 (with lens adapter R9802623), as well as Fx40/Fx70/F90 series, and can also be used on the Barco F80-series (with lens adapter R98014421 and related software).
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Specifications
| Lens type |
Fixed lens with encoders |
|---|---|
| Throw Ratio | DMD chip
|
| Working F/# | F 2.1 Motorized iris F# 2.1–6.0 with memory |
| Zoom ratio |
|
| Focal length | 12.6 mm |
| Focus Range |
1.6–13.1 ft (0.5–4.0 m) |
| Dimensions (WxHxD) |
14.2" x 14.6" x 17.3" (360 x 370 x 440 mm) |
| Weight | 13.2 lb (6.0 kg) |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 W, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
Same Series Lenses
FLDX Lenses
| P/N | R9801832 | R9802244 | R9802010 | R9802243 | R9802003/R9010091 | R9802242 | R9802241 | R9802473 | R9802237 |
| Model | 0.38:1 UST 90° | EN67 | EN62 | EN66 | EN76/EN76-M | EN63 | EN61 | EN64 | EN69 |
 |
 |
 |
 |
 |
|
|
 |
.jpg){kind=small} |
|
| D:W 4K1 | 0.36:1 |
0.53:1 |
0.70:1 |
0.71–1.06:1 |
0.83–1.14:1 |
1.06–1.50:1 |
1.48–2.18:1 |
2.19–4.05:1 |
— |
| D:W WUXGA2 | 0.38:1 |
0.61:1 |
0.75:1 |
0.75–1.13:1 |
0.89–1.21:1 |
1.12–1.58:1 |
1.58–2.33:1 |
2.33–4.30:1 |
6.50–9.01:1 |
| D:W WQXGA3 0.89" chip |
0.41:1 |
0.65:1 |
0.80:1 |
0.80–1.21:1 |
0.95–1.30:1 |
1.20–1.70:1 |
1.70–2.50:1 |
2.50–4.60:1 |
6.97–9.66:1 |
| D:W WQXGA4 0.64" chip |
0.57:1 |
0.91:1 |
1.12:1 |
1.12–1.70:1 |
1.33–1.82:1 |
1.68–2.38:1 |
2.38–3.51:1 |
3.50–6.45:1 |
9.75–13.50:1 |
| D:W WQXGA+5 0.67" chip |
0.54:1 |
0.85:1 |
1.06:1 |
1.06–1.60:1 |
1.25–1.72:1 |
1.59–2.24:1 |
2.25–3.30:1 |
3.30–6.08:1 |
9.19–12.73:1 |
| f/stop | 2.40 | 2.1 | 2.1 | 2.4–3.29 | 2.1–2.32 | 2.4-2.7 | 2.1–2.5 | 2.04–2.87 | 2.10–2.93 |
| Notes | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
