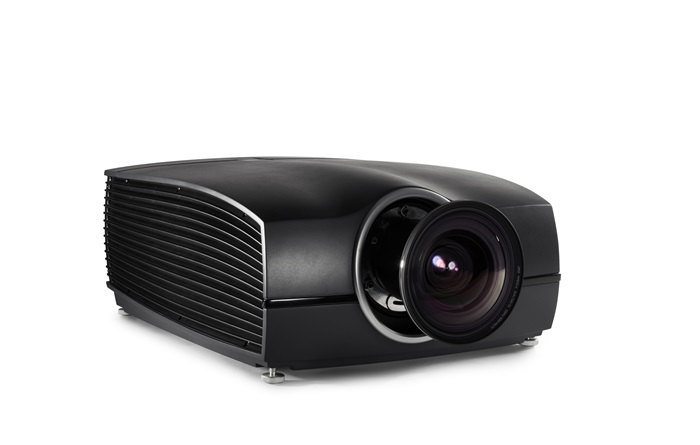

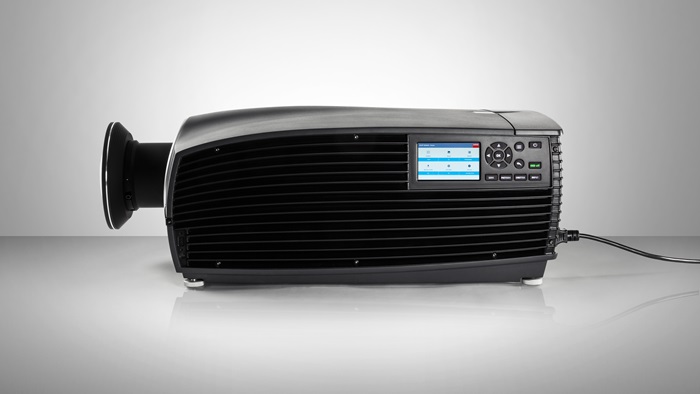

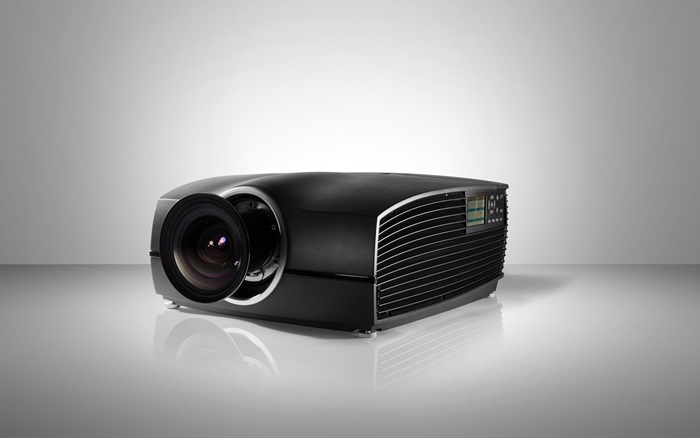

Barco F90-W13

Features

The excellent image quality and laser phosphor light source of Barco's F90 projectors enable you to provide stunning experiences while saving both time and money. The Barco F90-W13 is designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation. The reliable F90-W13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums. Thanks to its 3D functionality, the Barco laser projector is also perfectly fit for theme park dark rides and interactive experiences.

Excellent image quality

Thanks to its advanced optical design and WUXGA resolution, the F90-W13 Barco projector delivers excellent image quality. What's more, this reliable projector also offers images with constant light output, for long-term, worry-free operation.

Unprecedented business value

The F90-W13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes, resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

This 13,000-lumen projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses — from ultra-short throw (0.28:1) to long throw (9.75:1), each providing a wide lens shift range — the F90-W13 accommodates almost any projector configuration.

Specifications

Projector type Single chip DLP laser phosphor projector
Resolution 1,920 x 1,200 (WUXGA)
Brightness 13,000 center lumens
Contrast ratio 1,800:1 sequential
Brightness uniformity 90%
Aspect ratio 16:10
Lens type FLD
Optical lens shift Up to 134% lens shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift, iris and shutter.
Color correction P7 RealColor™
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime 20,000 / 60,000 hours, brightness mode dependent
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI, 2x DP, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12v out
Input resolutions Up to 2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,600 W Max.
BTU per hour Max 6,000 BTU/h
Noise level (typical at 25°C/77°F) 38 dB(A)
Operating temperature 10 - 45 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in
Weight 44.5 kg / 98 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 3 years parts and labor. Extendable up to 5 years
24-7 documentation This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
Notes * SW upgradable. Please contact an authorized Barco representative for details.

Options

Model EN47 EN42 EN46 EN45 EN43 EN41 EN44
D:W 0.65:1 0.80:1 0.80-1.21:1 0.80-1.21:1 1.20-1.70:1 1.70-2.50:1 2.50-4.60:1
f/stop 2.1 2.1  2.4-3.29  2.4-3.29  2.4-2.7  2.1-2.5  2.1-2.93
Focus Range 0.5-4.0 m 0.5-10 m 0.7-7.0 m 5.0-30 m 1.5-15 m 1.5-15 m 2.0-40 m

Downloads

B-stock

Qty: 1

Barco F90-W13 R9023466 Laser/Phosphor Light Source Projector, 1920x1200 WUXGA, 12,500 Lumens, No Lens, B Stock, 3 Year Warranty

Item #0601-1230-UA Model #R9023466
Add to Quote
