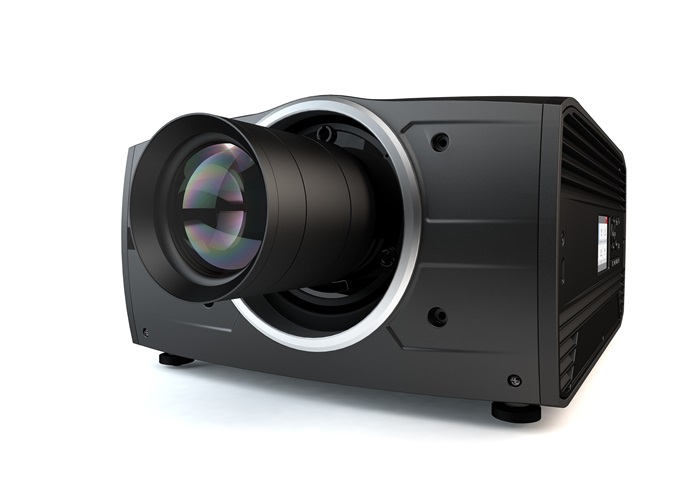

Barco F70-4K6

Laser/Phosphor up to 3840x2400 displayable, 2560x1600 native, up to 7500 Lumens, No Lens, 3 year warranty
Item #0601-1240 Model #R9023463

Overview

Barco F70-4K6

4K UHD laser-phosphor projector for simulation

Discover the Barco F70-4K6. The ultimate simulation experience mixes true-to-life images with challenging scenarios, creating a training environment that goes beyond reality. Only in this way, trainees can truly prepare for all challenges they can face during their jobs. Barco's F70 series, including the F70-4K6, offers the needed image quality, the necessary reliability, and the dedicated extra features to fully immerse trainees into the simulated environments—no matter if this is on land, on sea, or in the air.

Razor-sharp images with highly saturated colors at 4K UHD resolution

The Barco F70-4K6 provides stunning visual clarity with its 4K UHD phosphor projector technology. As a single-chip DLP projector, it ensures that the images remain crisp and detailed, making it ideal for simulation and training applications.

Considerable cost-savings and worry-free operation

This laser phosphor projector in the F70 series delivers cost-effective performance thanks to laser phosphor illumination. It provides up to 60,000 hours of operating time (depending on operation mode) without needing frequent maintenance, as well as constant light output.

Motion platform compatibility

The Barco projector is also compatible with motion platforms, making it versatile for various simulation environments.

Specifications

Projector type 1DLP laser phosphor
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
Brightness 5,000 – 7,500 lumens (5,400 Typical ANSI Lumens)
Contrast ratio 1800:1 sequential, 50,000:1 dynamic
IR for NVG yes
Brightness uniformity 90%
Aspect ratio 16:10
Lens type FLD/FLD+
Optical lens shift Up to 134% lens shift, depending on lens.
Motorized zoom, focus, vertical and horizontal shift, iris* and shutter.
Color correction P7 RealColor
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000* hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI
2x DP1.2
2x dual link DVI-I
HDBaseT upgradable
HDMI2.0 upgradable
RJ 45 Ethernet
DMX in/out*(upgradable)
RS232 in
2x USB
12v out
Input resolutions Including and up to:
3,840 x 2,400 @ 60Hz
3,840 x 2,160 @ 60Hz
4,096 x 2,160 @ 60Hz
2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection IR, RS232, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,100 W Max.
BTU per hour Max 4,000 BTU/h
Noise level (typical at 25°C/77°F) 36 dB(A)
Operating temperature 10 - 40 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
Weight 37 kg / 81,5 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 3 years parts and labor. Extendable up to 5 years
