Barco G100-W16

Laser 1-DLP Projector, WUXGA, 16K Lumens, No Lens, 3-Year Warranty
Part #: 0601-1450    Mfr #: R9009901

Barco G100-W16

Features

Barco G100-W16

17,200 lumens, WUXGA, single-chip laser phosphor projector

  • Single-chip high-brightness projections
  • Up-to-date input capabilities & future-proof design
  • Full operational flexibility through wide lens range

100% image performance

The G100 series opens up the possibilities of our single-chip offering with higher brightness levels than before. It brings great image quality with an impressive lumens power for bright projections indoor and outdoor. What's more, the G100 supports all the latest input sources, including HDMI 2.0, to ensure deep color palettes and qualitative projections.

Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer with the intuitive user interface. In addition, the Ptoolset blending and warping capabilities make these projectors a perfect fit for multi-channel media-based attractions like planetariums, domes, theatres and projection mappings.

100% flexibility

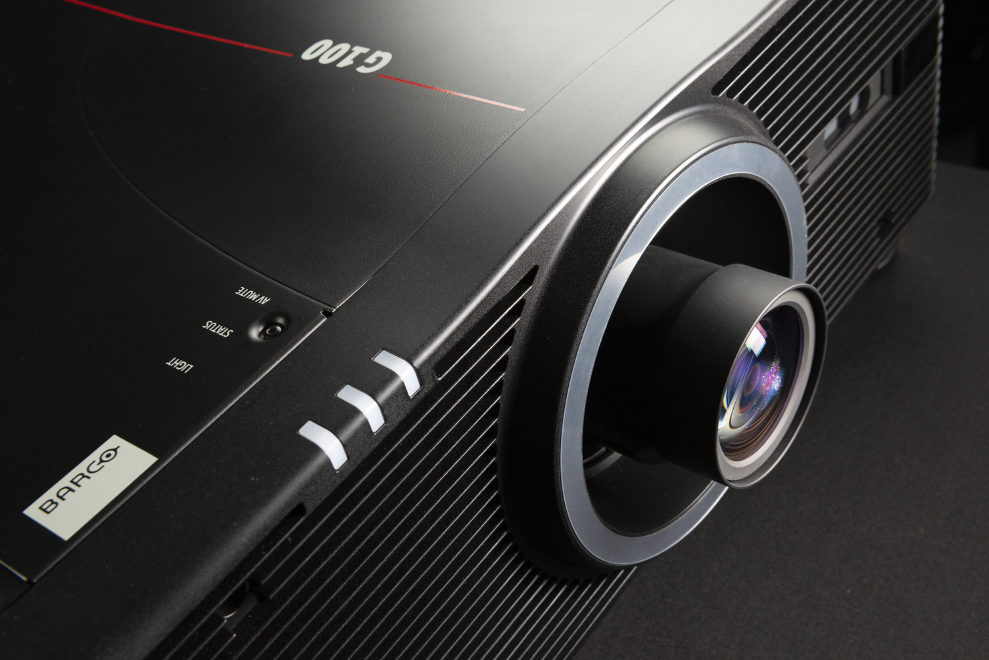

To enable full operational versatility and effortless implementation in different project designs, the G100 comes with a stable lens holder to guarantee reliable blending and non-moving images in multi-channel set-ups, and a new extensive GC-lens range supporting throw ratios from 0.38:1 up to 10.8:1. It gives you flexibility to shoot from long and/or short distances, and to play with 360° orientation possibilities. The projector and its peripherals deliver the best outcomes for any creative project.

With the excellent onboard cooling, the G100s can withstand a maximum ambient operating temperature of 50°C (122°F), at a maximum of only 42 dB noise levels.

100% reliability

Through its laser-phosphor light source and advanced cooling design, the G100 provides a long operating time (>20.000 hrs) without need for lamp changes, resulting in considerable cost-savings on maintenance and consumables.

With its up-to-date and future-proof design, the G100 is built to meet all your requirements in terms of image quality, reliability and sustainability.

A-rating ecoscore

The G100-W16 ecoscore is mainly attributable to the overall energy efficiency of the device. With an improved power supply, carefully selected components and low power standby mode, the projector limits its energy consumption. In addition, the product design and packaging design are both optimized in terms of weight which is beneficial for the transport and logistics of the units, positively impacting the eco footprint. Other highlights include the modularity and future-proof upgradeability of the projector, contributing to an extension of the lifetime.

Specifications

Projector type Single chip DLP laser phosphor projector
Resolution 1,920 x 1,200 (WUXGA) – 0.96" DLP chip
Brightness 17,200 ISO lumen / 16,200 center lumen / 14,500 ANSI lumen
Contrast ratio 1,100:1 sequential; 5,500:1 dynamic; 100,000:1 extreme black
Brightness uniformity 90%
Aspect ratio 16:10
Lens type

FLDX-lens: 0.38:1
GC-lenses: 0.65–0.75:1 / 0.84–1.02:1 / 1.02–1.36:1 / 1.2–1.5:1 / 1.5–2.0:1 / 2.0–4.0:1 / 4.0–7.2:1 / 7.2–10.8:1

Lens is not included

Optical lens shift Vertical: up to 120%, depending on lens
Horizontal: up to 50%, depending on lens
Motorized zoom and focus
Motorized lens shift
Color correction Yes
CLO (constant light output) Yes
Light source Laser phosphor
Light source lifetime Up to 20,000 hours
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active and passive stereoscopic 3D
Image processing Embedded warp & blend. Also possible via Ptoolset
Keystone correction Yes

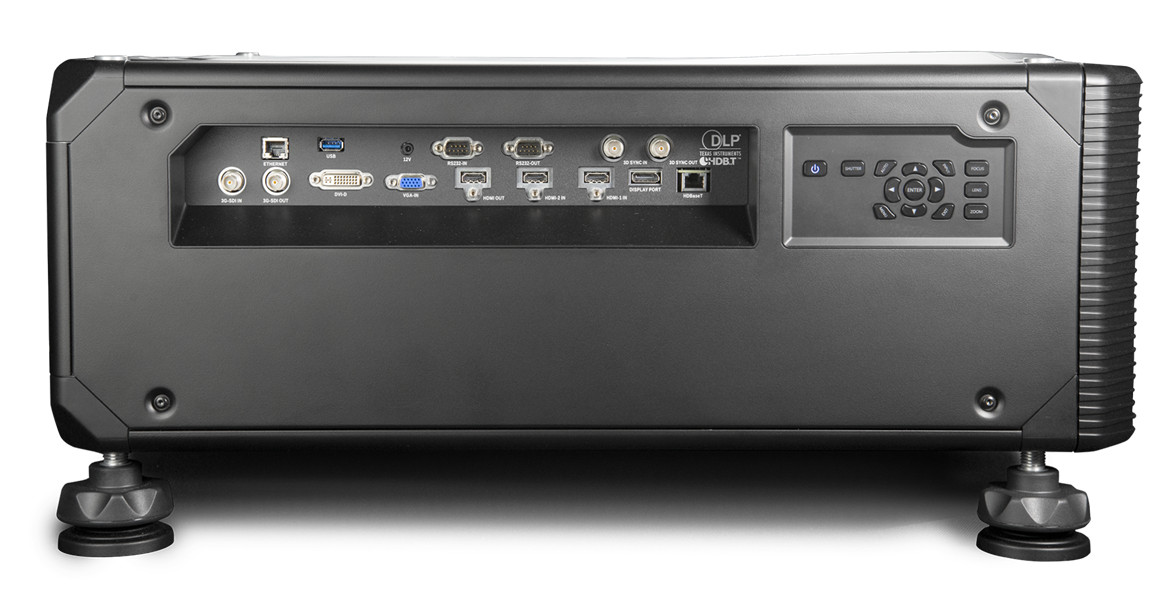

Inputs 2x HDMI 2.0b / DisplayPort 1.2a / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin)
Input resolutions Up to 1,920 x 1,200 @ 60 Hz
Refresh rates: 24 Hz to 120 Hz for 720p (1280x720) / 24 Hz to 60 Hz for WUXGA (1920x1200) / 24 Hz to 60 Hz for 3840x2160 and 24 Hz to 30 Hz for 4196x2160
Software tools Projector Toolset
Control IR, RS232, RJ45, USB type A
Network connection 10/100 Ethernet, RJ45
Power requirements 100–240 V / 50–60 Hz
Power consumption 855 W nominal, 985 W maximum (@220 V)
BTU per hour 2920 BTU/h nominal, 3365 BTU/h maximum (@220 V)
Standby power less than 0.5 W
Noise level (typical at 25°C/77°F) 36 dB(A) – 40 dB(A) depending on the mode used
Operating temperature 0 – 50 °C (32 – 132 °F) at sea level
Storage temperature -10 to 60 °C (14 – 140 °F)
Operating humidity 10 – 85% RH, non-condensing
Storage humidity 5 – 90% RH, non-condensing
Dimensions (WxLxH) without feet: 650 x 710 x 251 mm / 25.6 x 27.9 x 9.9 in
Weight without lens: 50.0 kg / 110.2 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
Warranty Limited 3 years parts and labor

Accessories

Optional Lenses

Model R9801832* R9802188 R9802181 R9802182 R9802183 R9802184
Std Lens
R9802185 R9802186 R9802187
  R9801832 lens R9802188 Barco R9802181lens R9802182 R9802183 R9802184 R9802185 R9802186 R9802187
D:W
WUXGA
0.38:1 0.65 – 0.75:1 0.84 – 1.02:1 1.02 – 1.36:1 1.2 – 1.5:1 1.5 – 2.0:1 2.0 – 4.0:1 4.0 – 7.2:1 7.2 – 10.8:1
f/stop 2.40 2.2 – 2.6 2.0 – 2.3 2.0 – 2.3 2.2 – 2.6 2.0 – 2.2 2.2 – 2.8 2.2 – 2.6 2.3 – 3.1

Requires the R9802360 lens adapter to mount on the G100 Series projectors.



Other Accessories

Ceiling mounts for G100-W16 Ceiling mounts
R9802360 Lens Adapter Lens Adapter for UST (R9802360)
