Barco R98565062

HC 1.13-1.72:1 (1.38" DMD) Zoom Lens
Item #0601-1482 Model #R98565062

Overview

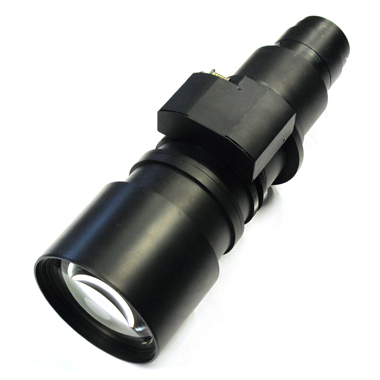

Barco R98565062

XLD HC (1.13-1.72:1) Zoom Lens

This High Contrast motorized lens from the XLD Series fits 1.38" DMD projectors such as the XDX-4K40 and XDM-4K25B.



Throw ratio 1.13–1.72 (1.38" DMD)
F/stop 2.5
Focal length 35.2–53.6 mm

Same Series Lenses

XLD HB (High Brightness) Lenses

Model R9802580* R9852945 R9852950 R9856506 R9856527 R9856529 R9855947 R9852920
  R9802580 Barco lens R9852945 Barco lens R9852950 R9856506 R9856527 R9856529 R9855947 Barco lens R9852920
D:W
4K (1.38")
0.38:1 0.72:1 1.01:1 1.13–1.72:1 1.46–2.10:1 2.00–3.35:1 2.53–4.98:1 4.98–7.68:1
F/stop 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5



* Requires UST lens bracket (R9802714), sold separately



XLD HC (High Contrast) Lenses

Model R98529502 R98565062 R98565272 R98565292
  R98529502 R98565062 R98565272 R98565292
D:W
4K (1.38")
1.01:1 1.13–1.72:1 1.46–2.10:1 2.00–3.35:1
F/stop 2.5 2.5 2.5 2.5
