Ricoh UHL3660-B
Overview

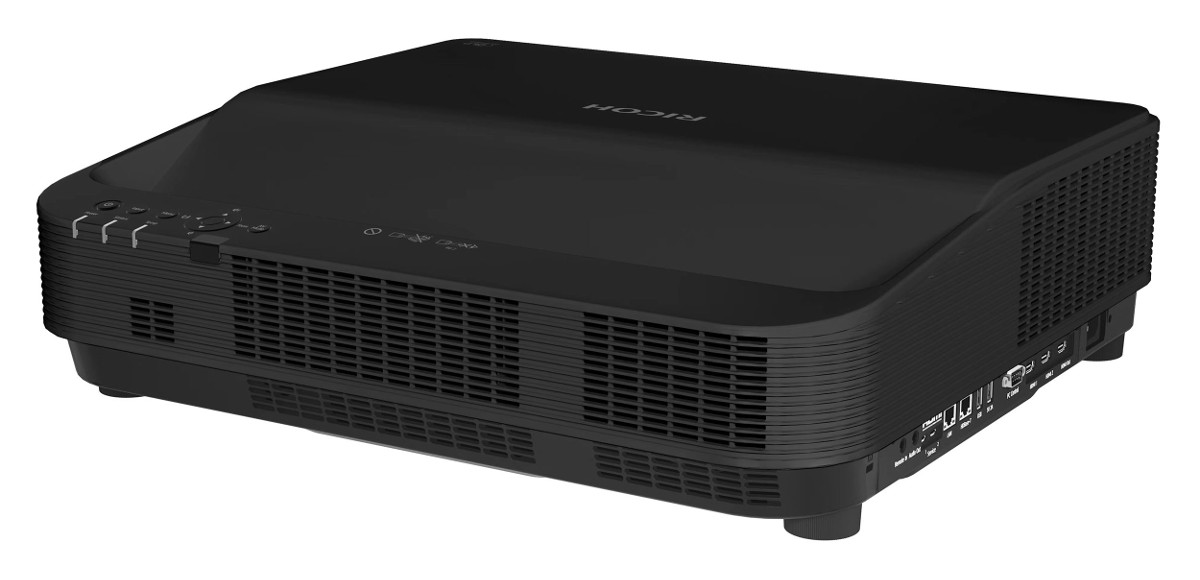

Ricoh PJ UHL3660-B
Ultra-Short Throw Laser Projector with Highly Adaptable 4K Quality (black)
The Ricoh PJ UHL3660-B UST laser projector (ultra-short throw) delivers a premium viewing experience in every environment, even where space is limited.
With 6,500 lumen brightness, 4K Ultra HD resolution and unique OptiBright technology, the UHL3660-B produces visibly sharper, clearer images with rich colors for enhanced realism, even in brightly lit spaces.
This ultra-short throw projector can be mounted in multiple ways, including portrait and 360-degree rotation to achieve a range of projection effects. It also incorporates a host of keystone and geometric image correction features to deal with uneven, angled or unusual projection surfaces. This Ricoh projector can also be operated wirelessly from a PC or smartphone, by using its IP address.
Need to project somewhere with limited space? That’s no problem for this 4K UST projector. It offers an incredible 0.24:1 ultra short-throw ratio, creating an 85-inch image from just 0.4" (1 cm) away from the unit's edge, and a maximum projection size of 160 inches.
Capable of operating constantly in temperatures up to 113°F (45°C) and with its IP6X dust-proof design, this professional projector is built to handle hot or dusty environments such as entertainment and covered outdoor venues. With its range of safety functions, including eye-safety shut-off, it can be used in spaces such as stores, conference halls and museums — anywhere the public is in close proximity.
Efficiency and economy are also core to the Ricoh UHL3660-B's design. Ownership and replacement costs are reduced thanks to an extra-long 40,000-hour operational lifespan in Long-Life Mode, with no need to replace filters or lamps. With an application to operate up to 100 projectors simultaneously and with software included, the UHL3660-B ultra-short throw projector delivers a highly adaptable, 4K quality solution in one package.
Note: The UHL3660-B is a black projector. For a white model, see the UHL3660.
Features
- 6,500-lumen brightness: One of the most powerful projectors in its category, featuring 6,500 lumens of brightness for visibly clearer, sharper image quality, even in brightly lit or large spaces.
- 4-way pixel shift delivers 4K Ultra High Definition resolution: High Dynamic Range and High Contrast mode enable enhanced realism and a more dynamic, lifelike viewing experience. Bring your content to life and experience the clarity of 4K UHD resolution, delivering razor-sharp images and vibrant, lifelike detail in every frame.

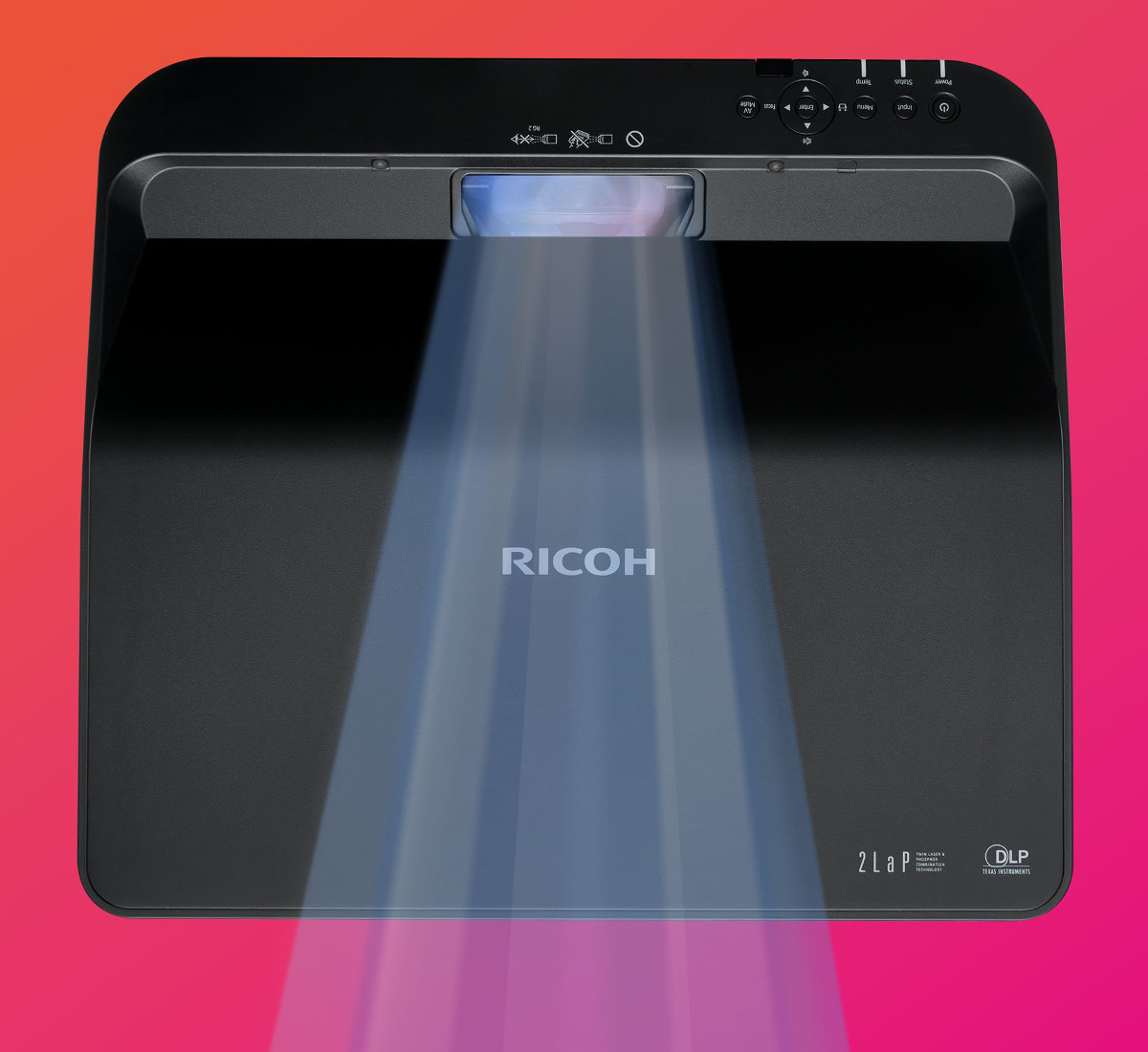

- Higher brightness from a compact unit: The unique OptiBright* technology has two laser lights beamed through two phosphor wheels. And with increased green levels within these wheels, the result is higher brightness with lower power consumption and a longer product life.
- Greater color richness than comparable projectors: This projector offers 1,073 million color reproduction. RICOH's unique NCE (Natural Color Enhancement) technology creates an extremely rich and vivid color range beyond the capabilities of most other projectors in this class.
- UST lens creates exceptionally large images in limited spaces: With a throw ratio of 0.24:1, the ultra-short throw lens is capable of projecting an 85-inch image from just 0.4" (1 cm) away from the unit's edge, up to a maximum image size of 160 inches (just over 4 meters). From small rooms to expansive spaces, Ricoh's ultra-short throw lens creates large, captivating displays from just centimeters away.
-
HDR and advanced image adjustments: Enhance color depth and contrast with HDR support, and optimize content with preset display modes and advanced image adjustments.

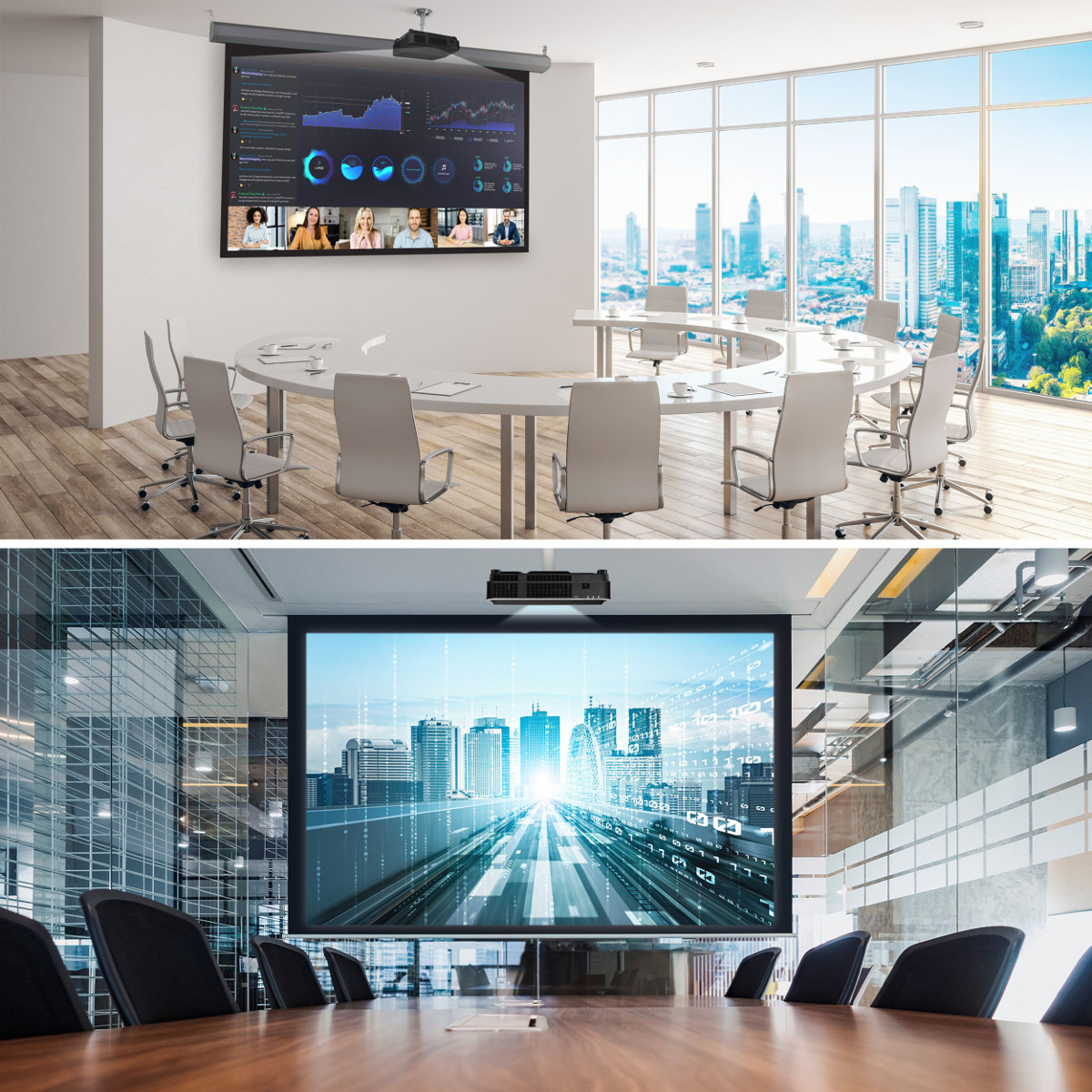

- Highly adaptable projection effects: Whether rotated through 360 degrees or mounted on its side, the UHL3660-B delivers peak projection performance suitable for floors, ceiling or walls, making it more than a simple meeting room projector.
- Adjusts to challenging projection surfaces: With a range of keystone and geometric image correction features including vertical, horizontal, four corners and six-point correction, plus up to 1,891-point grid adjustment, it’s perfect for uneven, angled and unusual projection surfaces.
- Unrestricted connectivity and ease of use: Offers HDMI 2.0 and HDBaseT wired connectivity, and wireless projection via Miracast™ for Windows & Android. Where space is limited, simply key in the projector's IP address to control it wirelessly from a PC or smartphone. Its remote controller lets you easily adjust the motorized focus.
- Schedule events automatically: Using the device's scheduling function, the projector can be pre-programmed to execute a series of events at specific times, or dates, automatically.
- Constant use in challenging environments: This robust projector is ideal for constant use in tough environments. Designed to operate in ambient temperatures of up to 113°F (45°C) and dust-proofed to IP6X, it's perfect for entertainment and covered outdoor venues.
- Safe for public spaces: Minimal space is required between the device and its projection surface, ideal for store signage, display or in conference halls with large crowds. If someone gets close an eye safety shut-off feature temporarily powers the unit down.
- Combine multiple projectors: Built-in Multi Projection software with edge blending enables projectors to be combined to achieve larger images or displays along walkways, in exhibitions or around conference venue walls.
- Immersive sound: With two 3-watt speakers and a 5-watt bass speaker built in, the projector delivers immersive audio, ideal for public events.
- Up to 40,000 operational hours: In long-life mode, the OptiBright* technology sends power to each of the laser light modules alternatively. This enables the UHL3660-B to operate for up to 40,000 hours — the equivalent of almost 5,000 8-hour working days — reducing the cost of ownership and replacement.
- Seamless compatibility with AV control systems: from both Ricoh and third-party.
- No parts to replace: Dust-proofed to IP6X, the projector is designed for constant 24/7 use without the need to replace filters or lamps, meaning uninterrupted image display with lower running costs.
- Everything you need in one package: Up to 100 projectors can be managed simultaneously via the operational management application, with functions such as monitoring, geometric correction, remote control and network camera display. All the software required is included.
*OptiBright: Ricoh’s Twin Laser & Phosphor Combination Technology
Specifications
| Projection system | DLP | ||
|---|---|---|---|
| Chip size | 0.65" | ||
| Brightness | 6,500 lumens | ||
| Contrast ratio | 5,000,000:1 | ||
| Aspect ratio | Auto (16:9, 16:10, 4:3) | ||
| Resolution | 4K (3840 x 2160 pixels)*1 | ||
| Light source | Laser | ||
| Light source lifetime | 20,000 hours (Constant Power mode) 26,000 hours (Constant Luminance mode) *2 30,000 hours (Eco mode) *2 40,000 hours (Long Life mode) *2 |
||
| Image size (diagonal) | 85" – 160" (2.16 – 4.1 m) | ||
| Projection distance (projector body to screen) | 0.39" – 14.96" (1 – 38 cm) from edge of unit | ||
| Throw ratio | 0.241:1 | ||
| Color reproduction | Up to 1.07 billion colors | ||
| Focus | Powered | ||
| Keystone | Horizontal: ±15° / Vertical: -20° to +5° | ||
| 4 corner correction | Supported | ||
| 6 point correction | Supported | ||
| Grid adjustment | Max. 61 x 31 points | ||
| Portrait & 360-degree projection | Supported | ||
| Multi-projection/ edge blending | Supported | ||

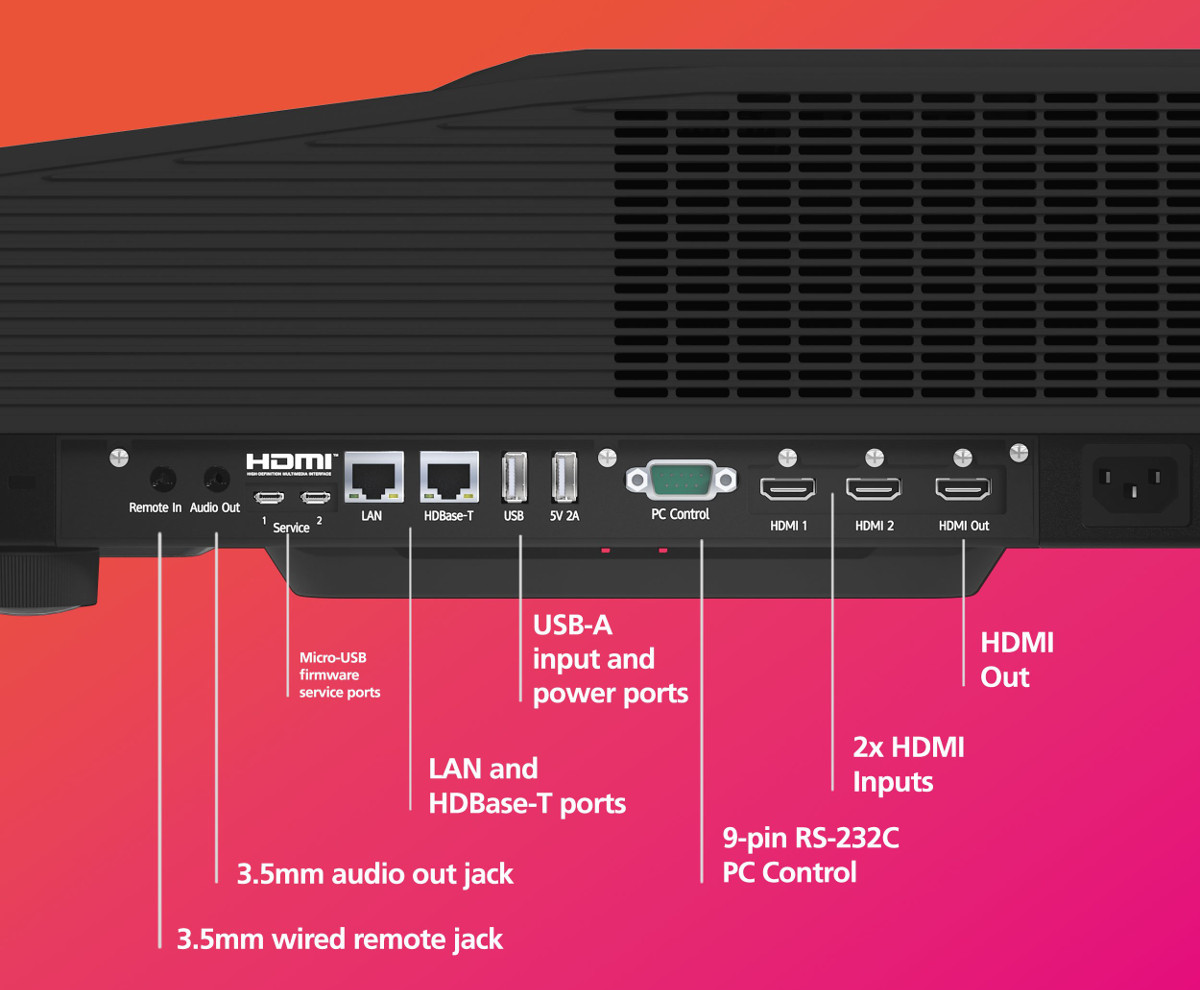

| Interfaces | Input | HDMI | 2 x Type-A (HDMI 2.0 / HDCP 2.2) |
| HDBaseT | 1 x RJ45 *3 | ||
| USB | 1 x Type-A | ||
| Output | HDMI | 1 x Type-A (HDMI 2.0 / HDCP 2.2) | |
| Audio | 1 x 3.5 mm Mini jack | ||
| Control | Wired LAN | 1 x RJ45 (for PJ control and firmware updates) | |
| RS-232C | 1 x D-Sub 9 pin | ||
| USB | 2 x Micro-B | ||
| Wired Remote | 1x 3.5 mm Mini jack | ||
| Other | USB | 1 x Micro-B (for service) | |
| USB | typeA 5V 2A (for USB memory and power) | ||
| Wireless projection | Supports Miracast™ (2.4 GHz / 5 GHz) for Windows & Android | ||
| Noise | Constant Power / Constant Luminance / Long Life mode : 36 dB Eco mode : 32 dB |
||
| Dimension (W x D x H) | 20.87 x 18.50 x 5.47 inches (530 x 470 x 139 mm) without feet | ||
| Weight | 25.4 lb (11.5 kg) | ||
| Dust proof | IP6X | ||
| 24/7 operation | Supported | ||
| Environmental conditions | Operating temperature | Constant Power | 32~104°F (0~40°C) at 0–5000 ft (0–1,524 m) altitude 32~95°F (0~35°C) at 5000–10000 ft (1,524–3,048 m) with High Altitude mode |
| Eco | 32~113°F (0~45°C) up tp 5000 ft (1,524 m) altitude 32~95°F (0~35°C) at from 5,001 to 10,000 ft (1,524–3,048 m) with High Altitude mode |
||
| Humidity | 20%~85% (non-condensing) | ||
| Power supply voltage | 100–240 V, 50/60 Hz | ||
| Power consumption | Constant Power: 460 W (100 V) /460 W (110 V) / 445 W (220 V) / 445 W (240 V) Eco: 225 W (100 V) / 225 W (110 V) / 220 W (220 V) / 220 W (240 V) Standby: < 0.5 W |
||
| Audio | 3W×2, 5W×1 stereo speakers (Total output power: more than 10 W) | ||
What's in the Box
- PJ UHL3660-B projector
- Power cable
- Remote control (with 2x AAA batteries)
- 6' HDMI cable
- Setup and warranty guides
Warranty
3 years
Notes:
*1 4K UHD Resolution achieved using 4-way pixel-shifting technology with a native 1080p DMD chip.
*2 In this mode, brightness is lower compared to Constant Power mode. Lifetime varies depending on usage conditions and environment.
*3 Supports HDMI and UART. For control only. Ethernet not supported.
