Overview

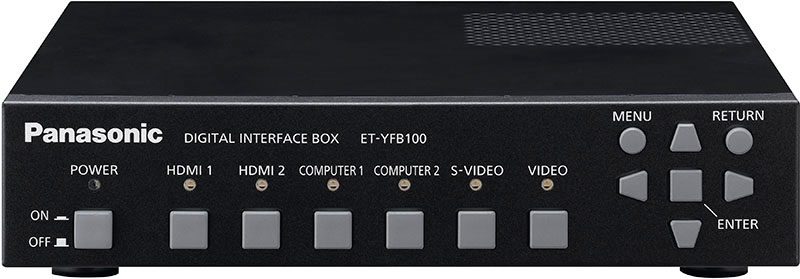

Digital Interface Box

ET-YFB100G

All-inOne Connectivity

By combining the ET-YFB100G with a DIGITAL LINK-ready projector, video, audio and control signals can be transmitted over a single cable. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

  • Transmits digital signals with a single cable

  • Outputs high-quality images in their optimal form

  • Convenient functions expand system configuration potential

Features

Transmits digital signals with a single cable

  • Equipped with a DIGITAL LINK output terminal. Allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS -232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.
  • Abundant input terminals, including two sets of HDMI and RGB inputs.
  • A separate audio output enables sound to be output when the projector power is turned off.
  • ET-YFB100G input can be selected with the remote control of a Panasonic projector with DIGITAL LINK compatibility.

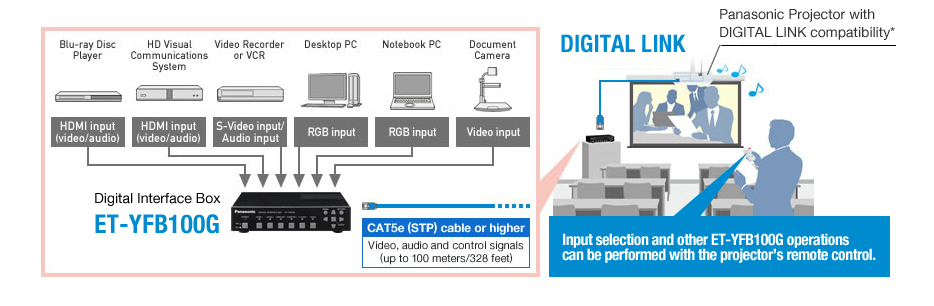

Image showing the DIGITAL LINK in useET-YFB100G in use

Outputs high-quality images in their optimal form

  • Digital transmission allows clear image and sound quality without any degradation even over long distances.
  • Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images.
  • PC signals are automatically resized and output in the optimal resolution to match the projector panel resolution.1
  • The Auto Setup function automatically distinguishes the input signal and adjusts it to output the optimal angle of view.
  • 3D video format transmission is supported (Pass Through mode only).

Convenient functions expand system configuration potential

  • DIGITAL LINK is an original function added to HDBaseT™ technology. Signals from the ET-YFB100G can also be relayed to a non-DIGITAL LINK-ready projector by using another manufacturer's equipment based on the same technology.
  • Brackets included for various installation needs, including server rack (EIA standards) mounting.

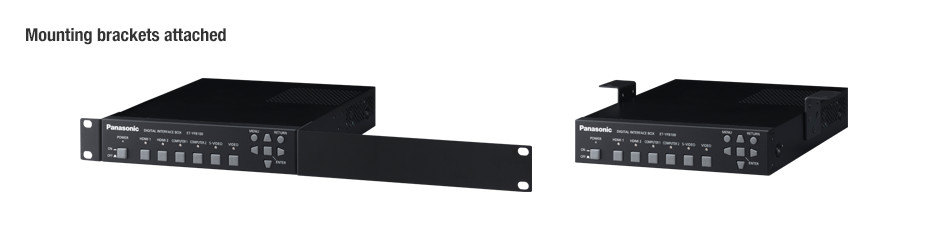

ET-YFB100G with mounting brackets

  • Eco mode2 automatically stops the DIGITAL LINK output when no input signal is detected
  • Closed caption compatible

Notes:

 The output setting for the ET-YFB100G should be set to AUTO. This scaling/resizing function does not support some formats.

When using Eco mode, time and other menu settings must be made.

HDBaseT™ is a trademark of the HDBaseT Alliance.

Specifications

Power supply DC 16 V (DC input terminal)
Power consumption
(use with supplied AC adaptor)
16 W [0.2 W with the power off] (including power consumption of the AC adaptor)
AC ADAPTER
Input 100–240 V AC, 50/60 Hz
Output DC 16 V, 3.75 A
SCANNING FREQUENCY
HDMI fH: 27–99 kHz, fV: 24–119.8 Hz, dot clock: 25.2–162 MHz
RGB (analog) fH: 15.6–99 kHz, fV: 24–119.8 Hz, dot clock: 13.5–162 MHz
YPBP(YCBCR)
  • fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
  • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
  • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
  • fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
  • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
  • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
  • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
  • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
  • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
  • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
  • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
  • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
TERMINALS
HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p, 1080/60p,
1080/50p, VGA (640 x 480)–WUXGA*1 (1,920 x 1,200),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN D-sub HD 15-pin (female) x 2 (RGB/YPBPR/YCBCR x 2)
VIDEO IN Pin jack x 1 (Composite VIDEO)
S-VIDEO IN Mini DIN 4-pin x 1 (S-VIDEO)
AUDIO IN M3 (L-R) x 1
AUDIO OUT M3 (L-R) x 1 (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1, for network connection, 10Base-T/100Base-TX

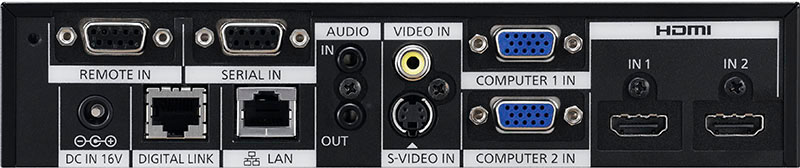

DIGITAL LINK RJ-45 x 1, for DIGITAL LINK connection (video, audio and control signals)
OTHER
Dimensions (W x H x D) 210 x 44 x 250 mm (8-9/32” x 1-23/32” x 9-27/32”) (not including protruding parts)
Weight Approximately 1.15 kg (2.54 lbs)*2 (not including AC adaptor)
Operating environment Operating temperature: 0–40 °C (32–104 °F), Operating humidity: 20 %–80 % (no condensation)
Supplied accessories AC adaptor x 1, power cords (2 m) x 3, AC power cord holder x 1,
AC power cord holder screw x 1, mounting brackets for rack or countertop installation x 2, mounting bracket for rack installation x 1, countersunk screws x 6, legs x 4, screws for installing legs x 4

Notes:

*1 Supported only when the signals are compliant with VESA CVT-RB.

*2 Average value. May differ depending on models.
