Panasonic PT-EW730ZU

LCD Projector, 1280x800, 7000 Lumens, Digital Link, Corner Keystone, Standard Lens, 3 year warranty
Part #: 0601-2645    Mfr #: PTEW730ZU

Panasonic PT-EW730ZU

$2,775.00
Price

Overview

Panasonic PT-EW730ZU

High Brightness, Low TCO, and Flexible Installation

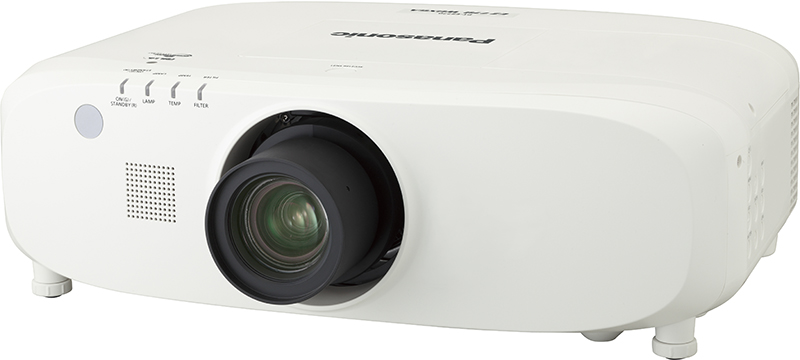

The new sleek and compact PT-EW730ZU LCD projector with WXGA resolution (1,280 X 800) produces a brightness of up to 7,500 lumens. The iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of 5,000:1. The PT-EW730ZU offers a versatile solution for numerous applications including university lecture rooms, engineering or art classes, and large company meeting rooms.

Key Features:

  • LCD, 7000 lumens, WXGA
  • Daylight View Basic function ensures clear and vivid image quality in bright environments
  • Integrated DIGITAL LINK and Displayport connection
  • Eco filter enables up to 15000 hours of air filter replacement cycle

Other projectors in the PT-EZ770 series include the PT-EZ770Z (WUXGA, 6500 lm) and EX800Z (XGA, 7,500 lm).

[ Compare to Similar Projectors ]

Features

High brightness and superb image quality

  • 7,000 lumens of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions.
  • Daylight View Basic function ensures clear images even in brightly lit rooms.
  • Color Adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection.

Flexible installation and system integration

  • DIGITAL LINK transmits digital signals up to 100 m (328 ft) with a single cable.
  • Wide adjustment range of the powered horizontal/vertical lens shift and 360-degree rotation assure convenience and versatility during installation.
  • Wide selection of optional lenses that attach and detach with one-touch ease

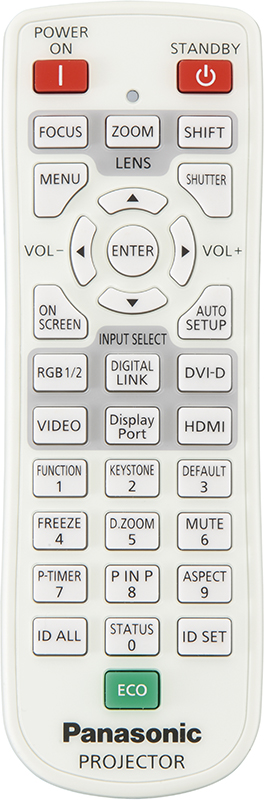

  • Easy remote monitoring and control over a LAN
  • Built-in AMX Device Discovery technology, compatible with Crestron Connected™ software
  • Corner keystone correction enables angled projection.

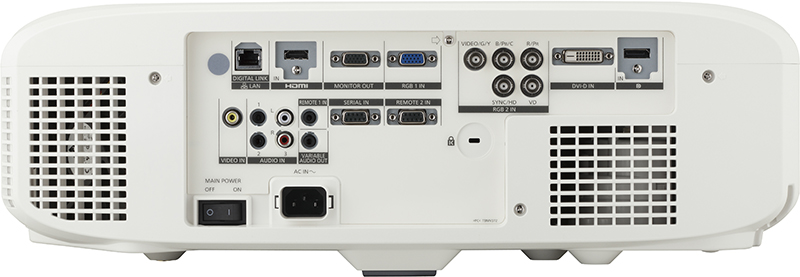

  • Abundant terminals including HDMI, DVI-D input, and DisplayPort
  • Built-in 10 W speaker

Lower maintenance and running costs

  • Highly durable optical engine with inorganic LCD panels and polarizers provide up to 10,000 hours of service without maintenance.
  • Dust-resistant cabinet design and washable Eco filter that needs no replacement for up to 15,000 hours1
  • Long lamp replacement cycle of up to 4,500 hours2
  • Intelligent lamp control system reduces power consumption.
  • Easy lamp and air filter replacement
  • Quiet 29-dB design does not interrupt meetings or classes3.

Notes:

1 The usage environment affects the duration of the filter.

This is the maximum value when the lamp power is set to Eco2. Increases in the lamp on-cycle or extended use with the lamp continuously turned on will shorten the lamp replacement cycle. When the lamp power is set to Eco1, the lamp replacement cycle is 4,000 hours and 3,000 hours when setting to Normal. The usage environment affects the lamp replacement cycle.

With the lamp power set to Eco2. 31 dB with lamp power set to Eco1. 37 dB with lamp power set to Normal.

Specifications

Brightness 7,000 lumens (LAMP POWER: AUTO/NORMAL, Dynamic mode, Standard lens)
Resolution 1,280 x 800 pixels
Power supply 100-240 V AC, 50/60 Hz
Power consumption 575 W (0.3 W with STANDBY MODE set to ECO, 10 W with STANDBY MODE set to NORMAL, 37 W with STANDBY MODE of Audio Setting set to on.)
Optical system Dichroic mirror separation/prism synthesis system
LCD panel Panel size 19.0 mm (0.75 inches) diagonal (16:10 aspect ratio)
LCD panel Display method Transparent LCD panel (x 3, R/G/B)
LCD panel Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
LCD panel Pixel configuration Stripe
LENS Powered zoom/focus lens (1.7-2.8:1), F=1.7-2.3, f=26.9-45.4 mm
Optional powered zoom/focus lenses and fixed-focus lens
Lamp 400 W UHM lamp
Screen size 1.02 - 10.16 m (40 - 400 inches), 16:10 aspect ratio
1.52 - 10.16 m (60 - 400 inches) with the ET-ELW22 (16:10 aspect ratio)
Center-to-corner uniformity 90%
Contrast 5,000:1 (full on/full off, LAMP POWER: AUTO, Iris on, Dynamic mode)
Scanning Frequency
(Display Port/HDMI/DVI-D)
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25 MHz-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant, compatible with HDCP)
Scanning Frequency (RGB) fH: 15-100 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
Scanning frequency YPBPR (YCBCR) 480i(525i): fH 15.73 kHz; fV 59.94 Hz, 576i(625i): fH 15.63 kHz; fV 50 Hz, 480p(525p): fH 31.47 kHz; fV 59.94 Hz, 576p(625p): fH 31.25 kHz; fV 50 Hz, 720(750)/60p: fH 45.00 kHz; fV 60 Hz, 720(750)/50p: fH 37.50 kHz; fV 50 Hz, 1080(1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080(1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080(1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080(1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080(1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080(1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080(1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080(1125)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency (Video/YC) fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60]; fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical:     ±60% (±50% with the ET-ELW22) (powered)
Horizontal: ±10% (powered)
NOTE: Optical axis shift function cannot be operated when used with the ET-ELW21.
Keystone correction range Vertical:     ±40° (with vertical correction only)
Horizontal: ±30° (with horizontal correction only)
Installation Ceiling/floor, front/rear
Built-in Speaker Size 3.7 cm (1-15/32 inches) (round) x 1
Built-in Speaker Output power 10 W (monaural)
Terminals Display Port In DP-20P x 1, HDCP compatible; 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) - WUXGA(1,920 x 1,200); Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals HDMI IN HDMI 19-pin x 1, Deep Color, HDCP compatible; 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) - WUXGA(1,920 x 1,200); Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,32 kHz)
Terminals DVI-D IN DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, compatible with single link only 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) - WUXGA(1,920 x 1,200)
Terminals RGB 1 IN D-sub HD 15-pin (female) x 1
Terminals RGB 1 IN R, G, B R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative)
Terminals RGB 1 In Y, PB (CB), PR (CR) Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms; NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals RGB 2 IN BNC x 5 (RGB/YPBPR/YCBCR x 1)
Terminals RGB 2 IN R, G, B R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms ; HD/VD, SYNC: high impedance, TTL (positive/negative); NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals RGB2 IN Y, PB (CB), PR (CR) Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
Terminals RGB 2 In S-Video In Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms
Terminals VIDEO IN PIN Jack x 1, 1.0 Vp-p, 75 ohms
Terminals MONITOR OUT D-sub HD 15-pin (female) x 1 R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative)
Terminals Monitor Out Y, PB (CB), PR (CR) Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
Terminals AUDIO IN M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more; M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more; PIN Jack (L, R) x 2, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals VARIABLE AUDIO OUT M3 (L, R) x 1 (monitor out: 0 - 2.0 Vrms, variable)
Terminals SERIAL IN D-sub 9-pin (female) x 1, for external control (RS-232C compliant)
Terminals Remoter 1 In M3 jack x 1 for wired remote control
Terminals Remoter 2 In D-sub 9-pin (female) x 1, for external control (parallel)
Terminals LAN/DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink™ (class 1), Deep Color, compatible with HDCP, 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) - WUXGA(1,920 x 1,200), dot clock: 25 MHz – 162 MHz; NOTE: Compatible with non-interlaced signals only.
Power cord length 3.0 m (9 ft 10 in)
Cabinet materials Molded plastic
Dimensions (WxHxD) 530 x 177 x 445 mm (20-7/8 x 6-31/32 x 17-17/32 inches) with supplied lens
530 x 177 x 385 mm (20-7/8 x 6-31/32 x 15-5/32 inches) without lens
Weight Approx. 10.6 kg (23.4 lbs) with supplied lens
Approx. 9.8 kg (21.6 lbs) without lens
Operation noise 37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1), 29 dB (LAMP POWER: ECO 2)
Operating temperature 0°C - 45°C (32°F - 113°F)
Operating humidity 10% - 80% (no condensation)
Technology LCD Projector

Warranty

3-Year PASS Limited Warranty; 90 Days Lamp

Accessories

Same Series Lenses

Model ET-ELW21 ET-ELW22 ET-ELW20 ET-ELS20
Standard Lens
ET-ELT22 ET-ELT23
Price $1,549.00
Add to Cart
$2,799.00
Price
$1,499.00
Add to Cart
$475.00
Add to Cart

Add to Cart

Add to Cart
  etelw21 etelw22  etelw20 Standard Lens ET-ELT20 ET-ELT21
D:W 0.79:1  0.78 - 0.98:1 1.24 - 1.70:1 1.64 - 2.81:1 2.82 - 4.60:1 4.55 - 7.26:1
f/stop  2.0 2.0 - 2.4  1.8 - 2.3 1.7 - 2.3 1.8 - 2.3 1.8 - 2.3



Other Accessories

Ceiling mounts for PT-EW730ZU Ceiling Mounts
Original Replacement Lamp ET-LAE300 $566.00
Add to Cart
Replacement Air Filter ET-RFE300   $109.00
Add to Cart
