Panasonic ET-MDNDP10

Display Port Input Board
Item #0601-2659 Model #ETMDNDP10

Overview

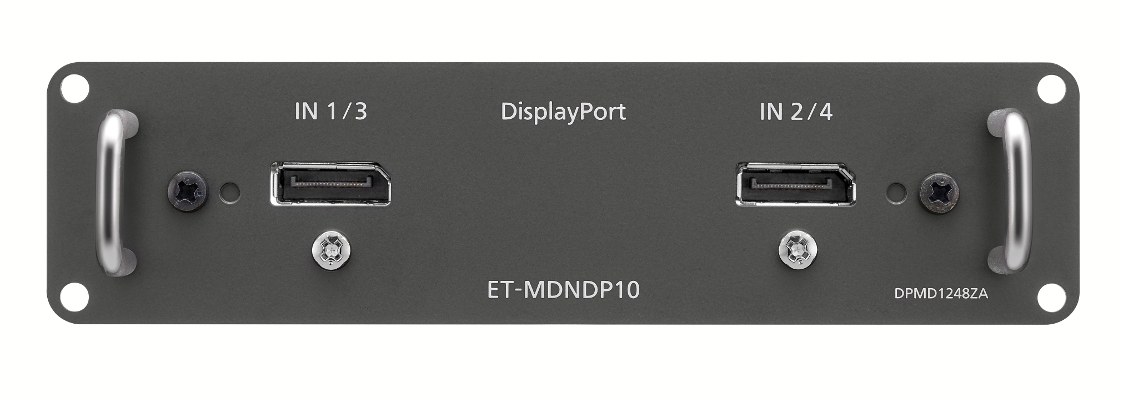

Panasonic ET-MDNDP10

Interface Board for DisplayPort 2 input

This is an input board for mounting to select 3-chip DLP™ projectors, which allows input of two DisplayPort signals.

This unit does not operate as a stand-alone unit. Use it by mounting to a compatible 3-chip DLP™ projector (sold separately). Please check the Compatibility tab to determine if this accessory will work with your projector.

It is recommended that installation and removal of the interface board for the main projector unit should be carried out by a qualified technician. Please contact the place of purchase.

Specifications

Compatible slot SLOT NX specifications
Connection terminals DisplayPort 2 lines
HDCP2.2 compatible. SST (Single-Stream Transport) mode compatible
Supported signals Resolution Moving image signal: 480/60p to 4096 x 2160/60p
Still image signal: 640 x 480 to 3840 x 2400 (non-interlaced)
Dot clock frequency 25 MHz to 594 MHz
Dimensions (WxHxD) 5-15/16 x 1-17/32 x 5-19/32 in (151 x 38.5 x 142 mm)
Weight 13.4 oz (380 g)

Notes:

  • "SLOT NX" is a name of the slot unique to Panasonic supporting the signal input for the 4K image.

  • The video signal that can actually display will vary depending on the projector on which the interface board is installed. For details, refer to the Operating Instructions of your projector.
