Panasonic PT-JX200FWU

Space Player, XGA, 2000 Lumens, Direct Mounting, White
Item #0601-2674 Model #PTJX200FWU


Panasonic PT-JX200FWU

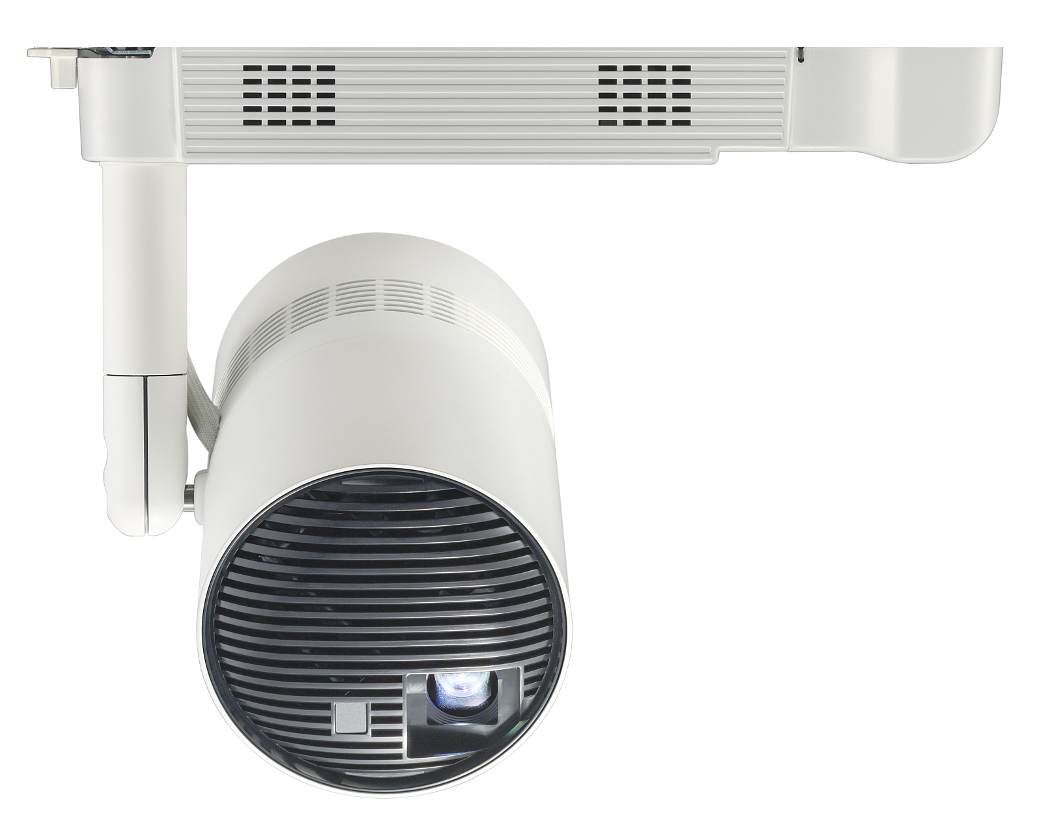

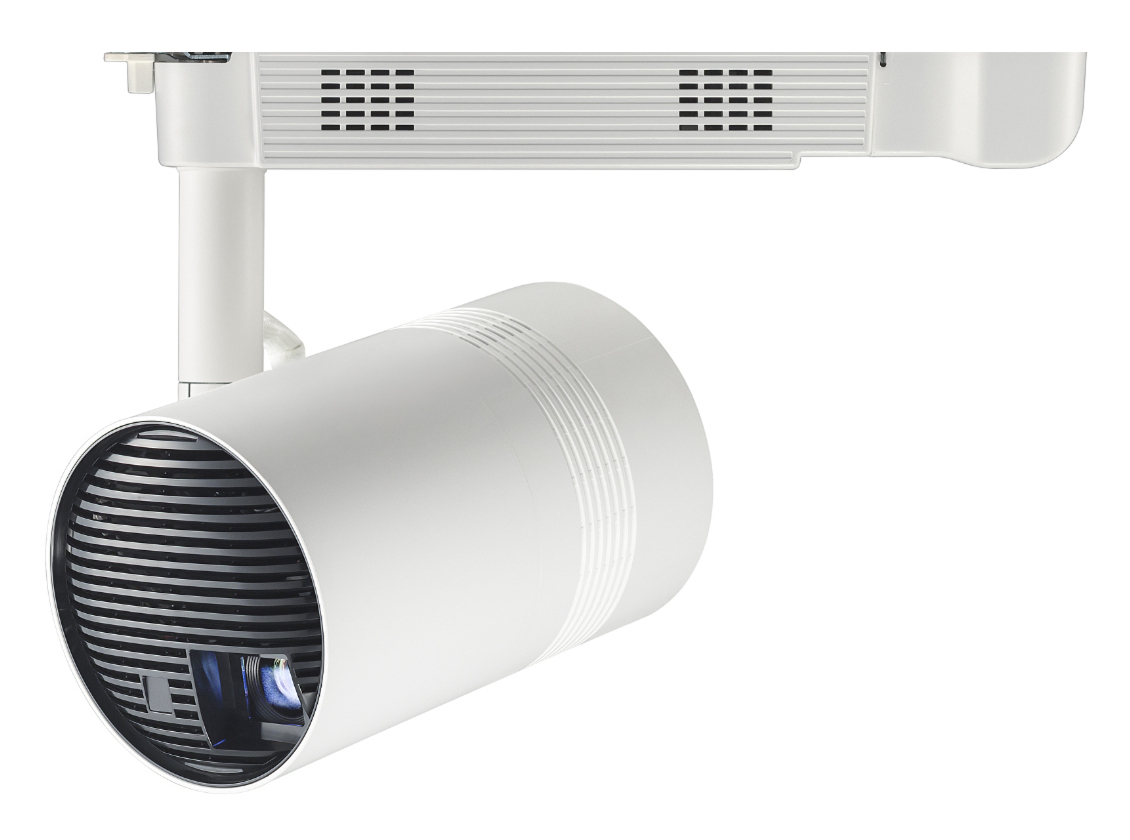

1-Chip DLP™ SOLID SHINE Laser Space Player Projector (white model)

The PT-JX200FWU Space Player projector provides a hybrid illumination and image-projection solution to enhance displayed objects or create vivid signage in a variety of locations and applications.

The ability to combine customized spotlighting and ambient illumination, still images, and moving pictures grabs attention in retail environments, while harnessing brightness and resolution to deliver text-and-image information clearly in exhibition spaces.

With the freedom to project a variety of media, and in-browser control for networked units, it's never been easier to transform your display.

Note: Mount not included.

Key Features:
  • Projection with a laser light source (20,000 hours with limited maintenance)
  • Spotlight-shaped to fit any space requiring high-level design
  • Compact and easy to install
  • Automatic image/movie playing via SD memory card, Wi-Fi from a PC/tablet or using an HDMI connection
  • Adjustable structure to deliver light in wide direction


  • Sleek Spotlight-type Design: Inspired industrial design results in a lighting and projection device not much larger than a conventional spotlight, but with loads of extra onboard functionality.
  • Easy to Install: Three setup options are available: an easily removable lighting track1 mounting, direct mounting on the ceiling or wall, or on-floor installation.
  • Shoot From Almost Any Angle: Flexible mount gimbal lets you light or project onto tabletops and floors from any angle through 360° horizontal and 180° vertical, as well as in portrait orientation.
  • Bright and Vivid Picture Quality: The PT-JX200FWU Space Player is powered by 1-Chip DLP™ technology with original SOLID SHINE Laser light source featuring a hybrid wheel. The laser drive serves exceptionally vivid colors at 2,000 lumens brightness in XGA resolution.
  • 20,000 Hours Maintenance-free: Filterless, dust-resistant SOLID SHINE Laser drive and optical engine means you can project for about 20,000 hours2 without downtime for maintenance.
  • Choice of Inputs: Space Player supports standard video and still media formats via HDMI terminal, SD Card, and wired/wireless LAN (although video playback is not supported via Wi-Fi).
  • Wireless Projection Capability: compatible with Panasonic wireless apps for select mobile devices and PC, which offer a variety of remote control and media casting options. The PT-JX200FWU also supports Miracast screen mirroring of certain media from compatible devices.
  • Customizable Lighting Patterns: Choose a custom spotlight template via remote control and illuminate select areas (such as retail items) within a projected background. Size, position, and number of these spotlights are easily configurable.
  • Playback Scheduling: Configure media to play at certain times of day, on specific days, up to 12 weeks in advance using the playback scheduling function. Content playback changes automatically as desired.
  • Content Manager Software: create scheduling data and media playlist on a PC and save it to one or more SD Cards. Insert the card into Space Players to execute the schedule. The software reduces complexity for temporary installations or where the device is frequently moved from place to place.
  • Network LAN Control: In-browser control for smart devices and support for PJ Link™ (Class 1), Crestron Roomview™ Connected, and Art-Net (DMX512) simplifies control integration into an existing AV network.
  • Multi Monitoring & Control Software: This free software controls up to 2,048 units over LAN network from a single PC — ideal for large AV networks, such as museums, houses of worship, and exhibition spaces. For monitoring, individual device status can be listed in groups, with more detailed information shown separately. Control functions include power ON/OFF, input switching, scheduling, and command inputs.
  • Keystone Screen Adjustment: Easily correct picture distortion via remote control without external equipment using vertical and horizontal independent correction or four-corner correction.
  • 2.2x Powered Zoom Lens: Space Player’s 2.2x powered zoom lens generates big pictures from close up or from far away, granting you the flexibility to adjust projection to suit venue layout with a wide range of throw distances.
  • Direct Playback: Cue content using buttons 1–6 on the remote controller. Playback is matched to key presses, making it easy to achieve surprise effects. (Content takes 1–3 seconds to appear.)
  • Simultaneous Playback: Multiple units can play the same or different content simultaneously over network for impressive spatial enhancements of larger venues.
  • Memory Viewer Function: offers a variety of effects, functions, and enhancements, including:
    • Image wipe, split, fade, and more
    • Power ON/Start
    • Sort by name, type or time stamp
    • Interval time setting


Track not included. PT-JX200/JW130 Series cannot be used with lighting-track-connecting light dimmers. For information on installing a track system, please refer to manufacturer's instructions and precautions.

2 Panasonic recommends cleaning or checkup at point of purchase after 20,000 hours (approximately). Light source lifetime may be reduced depending on environmental conditions. Dustproof tests are conducted to confirm operational effectiveness under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Measurements are made using acceleration tests.


Power supply AC 120 V, 50/60 Hz, 2.3 A
Power consumption 240 W
Standby Mode set to Eco: 0.4 W
Standby Mode set to Network: 0.5 W
Standby Mode set to Normal: 12 W (with fan stopped)
Panel display method 0.55 inch DLP™ chip x 1, DLP™ projection system
Pixels 786,432 pixels (XGA equivalent)
1024 x 768 pixels
Lens Powered zoom (1.0x–2.2x), powered focus, F 2.0–2.7, f=15.2–32.7 mm
Electric zoom 1.3–2.9:1
Light source Laser diode (Maximum output: 36 W x 2, Wavelength: 452–458 nm)
Laser class: Class 1 (Class 3R for North America)
Light-source life: 20,000 hours (At this time the brightness will have decreased to approximately half of its original level)
Brightness*1 2,000 lm
80 %
Contrast ratio*1 1,000:1 (Full white/Full black)
Screen size  30–200 inches (0.76–5.08 m), 4:3 aspect ratio
Scanning frequency HDMI IN: 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60
Optical axis shift
(from center of screen)
Vertical: 17 % (fixed)
Keystone correction
Vertical: Max. ±40°, Horizontal: Max. ±40° (Max. values in each direction only) (For corner keystone function, correction available within described range)
HDMI IN HDMI 19-pin x 1, compatible with HDCP, audio signal: linear PCM
(sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
LAN RJ-45 x 1 for network connection, 100Base-TX, 10Base-T, compatible with PJLink™ (Class 1)
AUDIO OUTPUT M3 × 1 (monitor out, stereo)
DC OUT USB connector (Type A) x 1 for power supply (DC 5 V, maximum 2.0 A)
Card slot SD Card slot*2 x 1 (Supports SDHC memory card)
Wireless LAN IEEE802.11a/b/g/n, compatible with Miracast
Cabinet materials Molded plastic (white)
Weight Approx. 10.1 lb (4.6 kg)
Operation noise*1 30 dB (Eco Mode), 33 dB (Normal Mode)
Temperature*3 32–104 °F (0–40 °C) at altitude up to 3,281 ft (1,000 m)
32–95 °F (0–35 °C)  at altitude 3,281 ft to 8,858 ft (1,000 m to to 2,700 m)
Humidity 10% to 80% (No condensation)
Supplied accessories
  • Wireless remote control unit
  • Batteries for remote control (R03/LR03/AAA type x 2)
  • Software CD-ROM (Multi Monitoring & Control Software for Windows, Wireless Manager ME6.3 for Windows/Mac)
  • Card slot cap
  • HDMI terminal cap
  • LAN terminal cap
  • Allen wrench
  • Connector secure lock
Compatible track


*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards.

*2 Operation of Panasonic SD memory cards of up to 2 GB capacity and Panasonic SDHC memory cards of up to 32 GB capacity is confirmed.

*3 If ambient temperature exceeds 35 °C (95 °F) when used in locations from 0 m to 1,000 m (0 ft to 3,281 ft) above sea level, or if it exceeds 30 °C (86 °F) when used in locations from 1,000 m to 2,700 m (3,281 ft to 8,858 ft) above sea level, light output may be reduced to protect the projector.


ET-JPC200WU Ceiling/wall mount (ET-JPC200WU)
projector not included
