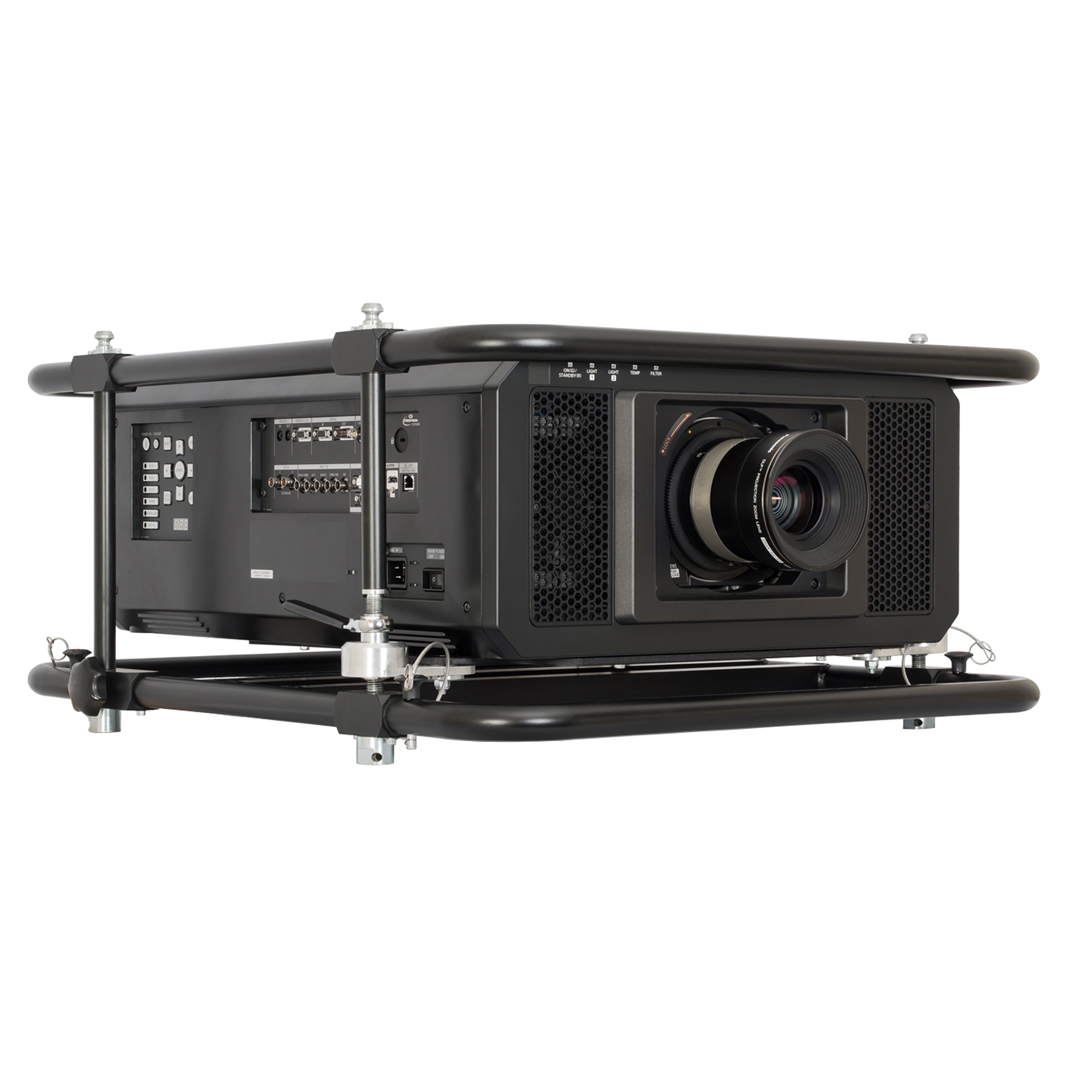

Panasonic ET-PFD565
Stacking Frame, B-Stock
Item #0601-2707-UB Model #ETPFD565
Features
| Dimensions [mm / inch] | 883 x 720 x 434.95 mm / 34.8 x 28.4 x 17.12 inches |
| Weight [kg / lbs] | 18.5 kg / 39.68 lb |
| Angle Adjustment | · Pitch: ±3° |
| · Yaw: ±3° | |
| · Roll: ±3° | |
| Accessories | ET-PFD550TMS2 |
| Rigging Compatibility | ET-PFD550TMS2 |
| · Clamps (ex:Doughty Clamps) | |
| Distance Between Frames [mm / inch] | 48 / 1.88 |
| Frame Installation Possibilities | · Landscape Mode |
| · Portrait Mode | |
| · Vertical Down | |
| Maximum Stacking | · Ceiling mount: 2 |
| · Table mount: 3 | |
| BGV-C1 Certificate | Yes |
| Characteristics | · Possibility of adjustment on 3 axis |
| · Quick set-up | |
| · Tool free installation | |
| · Appealing design | |
