Panasonic ET-D3LES250
Overview

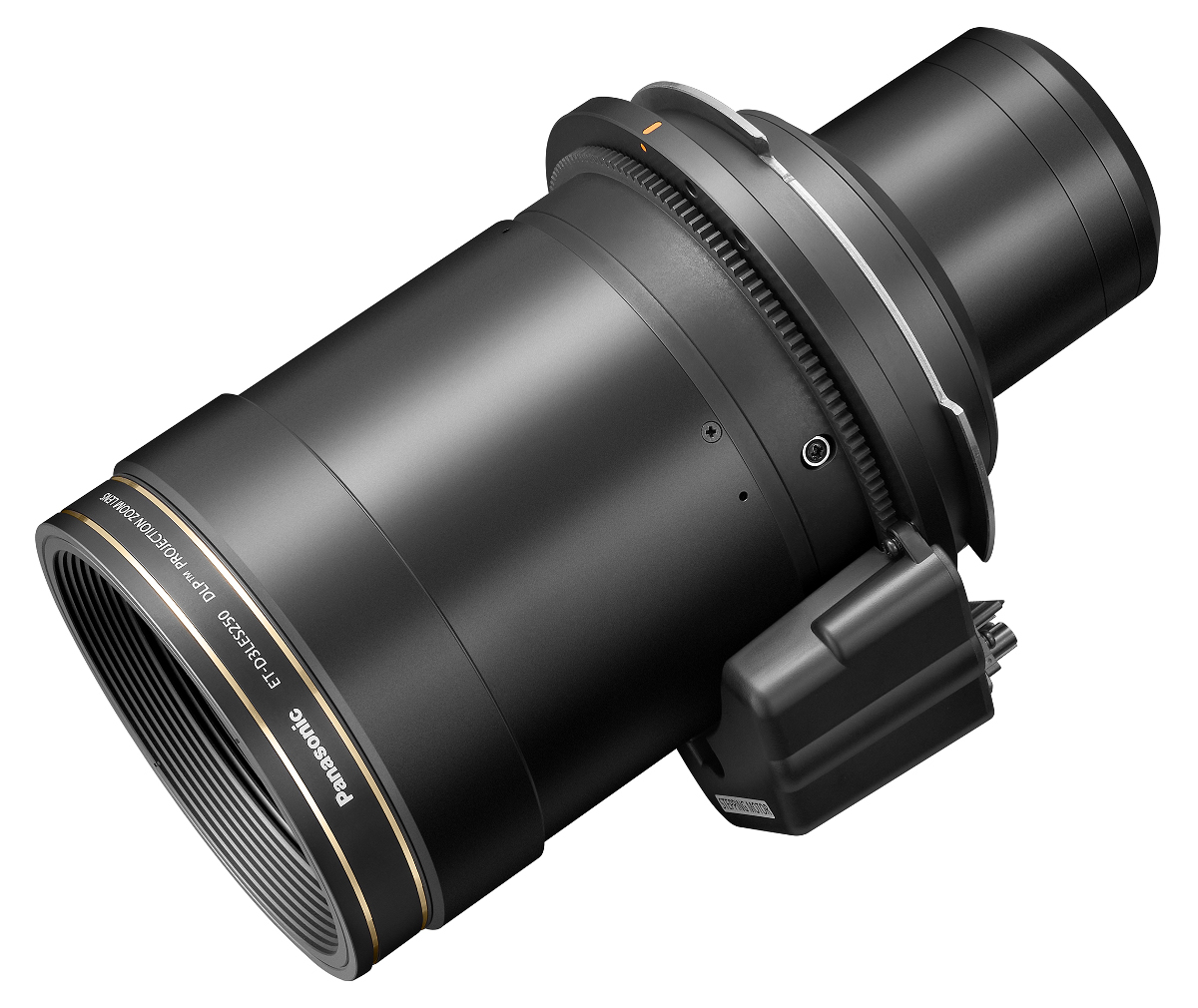

Panasonic ET-D3LES250
3-Chip DLP™ Projector Zoom Lens
The Panasonic ET-D3LES250 lens is a high-performance, standard-to-tele zoom lens designed for 3-Chip DLP™ projectors. It features motorized zoom, focus, and lens-shift, allowing for remote adjustments and preset recall. It also supports auto lens identification functions and is optimized for high-end, large-venue, or immersive applications.
This lens is typically used in demanding environments where precise, high-brightness projection is required. The throw ratio ranges from 1.67:1 to 2:90:1, depending on the projector model. (Set for release in Q2 2026.)
Key Features:
- Bring out the best image reproduction
- Support efficient workflow
- Maintains stable image quality
Note: Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Specifications
| Throw Ratio (D:W): | 1.67–2.41:1 (4K/WUXGA, 0.96" chip) 2.00–2.90:1 (4K/WUXGA, 0.80" chip) 1.79–2.59:1 (4K+) 1.80–2.61:1 (SXGA+) |
| Aperture (f-stop): | 2.5 |
| Zoom Ratio: | x1.45 |
| Focal Distance: | 35.0–50.9 mm |
| Screen Size: | 70–1000 inches |
| Dimensions (WxHxD): | 177 × 154 × 270 mm (6 31/32 × 6 1/16 × 10 5/8 inches) |
| Weight: | 5.2 kg (11.5 lb) |
Same Series Lenses
The D3 Series supports lens memory when used with a projector that also supports this feature. Lens identification is also supported, so that the projector can read the model lens that is installed on it.
| Model: | ET-D3LEF70 | ET-D3LEU100* ET-D3LEU101 |
ET-D3LEW200* ET-D3LEW201 |
ET-D3LEW50 | ET-D3LEW300 | ET-D3LEW60 | ET-D3LEW600 | ET-D3LEW10 | ET-D3LES20 ET-D3LES250* Std Lens |
ET-D3LET30 | ET-D3LET40 | ET-D3LET80 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA (0.80") |
— | 0.444:1 | 0.774–1.02:1 | 0.833:1 | 0.924–1.12:1 | 1.11–1.32:1 | 1.12–1.55:1 | 1.51–2.06:1 | 2.00–2.89:1 | 2.88–5.59:1 | 5.53–8.89:1 | 8.81–16.56:1 |
| D:W WUXGA (0.96") |
— | 0.370:1 | 0.645–0.850:1 | 0.694:1 | 0.770–0.933:1 | 0.924–1.10:1 | 0.924–1.28:1 | 1.26–1.72:1 | 1.67–2.41:1 | 2.40–4.66:1 | 4.61–7.41:1 | 7.34–13.8:1 |
| D:W 1080p |
— | 0.364:1 | 0.634–0.836:1 | 0.682:1 | 0.757–0.917:1 | 0.908–1.08:1 | 0.908–1.26:1 | 1.24–1.69:1 | 1.64–2.37:1 | 2.36–4.58:1 | 4.53–7.29:1 | 7.22–13.6:1 |
| D:W 1366x768 |
— | 0.407:1 | 0.709–0.934:1 | 0.763:1 | 0.846–1.03:1 | 1.02–1.21:1 | 1.02–1.41:1 | 1.38–1.89:1 | 1.83–2.65:1 | 2.64–5.12:1 | 5.07–8.14:1 | 8.06–15.2:1 |
| D:W SXGA+ |
— | 0.396:1 | 0.691–0.910:1 | 0.743:1 | 0.834–1.01:1 | 0.990–1.18:1 | 1.01–1.39:1 | 1.35–1.84:1 | 1.79–2.58:1 | 2.57–4.99:1 | 4.94–7.94:1 | 7.86–14.8:1 |
| D:W WQXGA/4K+ |
— | 0.395:1 | 0.688–0.907:1 | 0.740:1 | 0.825–1:00:1 | 0.986–1.17:1 | 0.993–1.38:1 | 1.34–1.83:1 | 1.78–2.57:1 | 2.56–4.97:1 | 4.92–7.90:1 | 7.83–14.7:1 |
| D:W 4K DCI |
— | 0.247:1 | 0.430–0.567:1 | 0.463:1 | 0.514–0.622:1 | 0.616–0.730:1 | 0.616–0.854:1 | 0.84–1.15:1 | 1.11–1.61:1 | 1.60–3.11:1 | 3.07–4.94:1 | 4.90–9.20:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 – 2.7 |
| Notes | Fish-eye lens | *ET-D3LEU100 is discontinued | *ET-D3LEW200 is discontinued | *Recommended for newer projectors like PT-RQ45K, PT-RZ44K and PT-HTQ20 |
