Panasonic ET-MD77SD3
SDI High Def Board 7000 Series, Open Box, Unused
Item #0601-2855-UB Model #ETMD77SD3
Overview

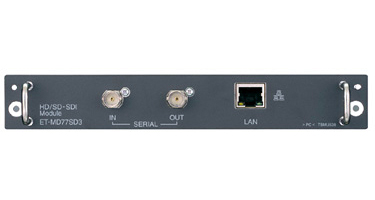

Panasonic ET-MD77SD3
SDI High Definition Board
This board is designed for use with Panasonic DLP™ projectors such as the 7000 Series. It enables the input of a HD digital serial component signal (SMPTE292M-compliant).
Remote control of the projector is also possible from an external computer connected via LAN.
Please check the Compatibility tab to determine if this accessory will work with your projector.
Specifications
| Power supply | Provided from the DLP™ projector | |
| Power consumption | Projector power consumption increases approximately 10 W | |
| TERMINALS | Serial input | BNC x 1 4:2:2 digital serial component signal: SMPTE 259M compliant, 480i, 576i HD digital serial component signal: SMPTE 292M compiant, 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
| Serial output | BNC x 1, active through | |
| LAN | RJ-45 x 1, 10Base-T/100Base-TX for network connection | |
| Dimensions (WxHxD) | 8-1/32" x 1-1/4" x 8-7/16" (204 x 32 x 214 mm) | |
| Weight | 0.64 lb (290 g) | |
| Operating temperature | 32°F–104°F (0°C–40°C) | |
| Operating humidity | 10%–80% (no condensation) | |
