Panasonic PT-VX605NU
Overview

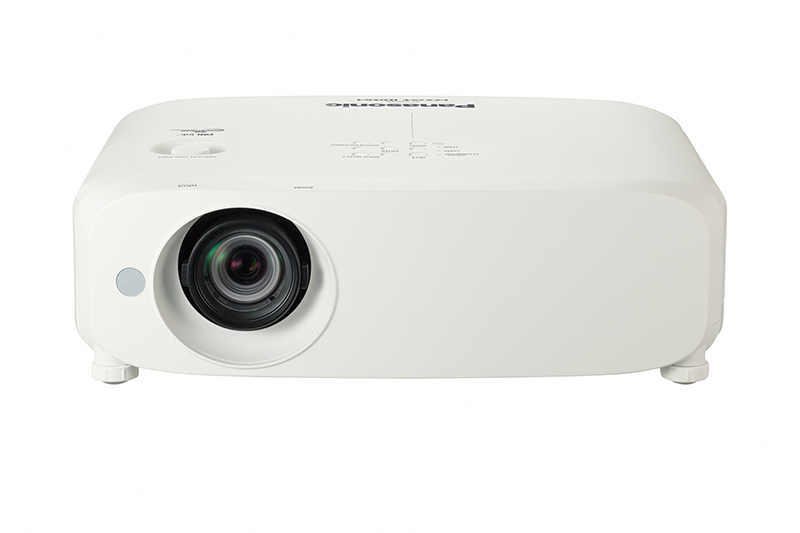

Panasonic PT-VX605NU
Network-enabled Portable LCD Projector
The Panasonic PT-VX605NU is a XGA large venue projector. Lamp based, it is capable of displaying 5,500 lumens at its brightest setting with a native resolution of 1024x768. The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut.
Part of the PT-VZ570 series, this projector features a blend of high image quality, low total cost of ownership, flexible installation and collaborative functionality. When set to Eco mode, it offers a maintenance-free operational life of 7,000 hours, significantly reducing the total cost of ownership for businesses and educational institutions.
The PT-VX605NU is portable but allows ceiling-mounting, while vertical lens shift and screen adjustment functionality mean easy adjustment of images projected onto flat or curved surfaces, as well as angled projection. The unique projector lens can also be shifted to allow greater flexibility in positioning the projector relative to the screen.
Features
Superb Performance and High Picture Quality
- Features XGA resolution (1024 x 768 pixels, 4:3 aspect ratio)
- A brightness level of 5,500 lumens, and contrast ratio of 5,000:1 in a compact body
- A maximum 7,000-hour*1 lamp/filter replacement cycle reduces the hassle and cost of maintenance
- Quiet 29 dB*2 design helps to hold viewers’ attention.
- The Daylight View Basic function ensures clear images even in brightly lit rooms.
Various Wireless Functions
- Miracast™ wireless projection capability allows you to instantly mirror whatever is on the screen of a Miracast-compatible device.
- Download free apps for iOS and Android devices and project a wide rage of media*3 quickly and easily.
- Transfer data from the screen of your PC or laptop via wireless LAN*4 using Wireless Manager ME 6.2 software,*5 which features a new interface for faster connection. Multi-Live mode enables simultaneous projection from up to 16 computers in split-screen mode.
- Plug our Easy Wireless Stick ET-UW100 (optional)*6 into your PC's USB port and project wide variety of content — no app installation required.
- A USB Memory Viewer function for projecting without having to connect to a computer.
- USB Display function for easy projection using a USB cable.
Excellent Functions and Flexible Installation
- DIGITAL LINK transmits digital signals up to 100 m (328 ft) with a single cable.
- The vertical lens shift and a 1.6x zoom lens enable flexible installation.
- Horizontal, Vertical, and Corner Keystone Correction enables angled projection.
- Curved Screen Correction for projecting onto a curved screen
- Equipped with two HDMI input terminals and abundant interfaces
- Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.
- Compatible with leading control systems, such as Crestron Connected™ application and the AMX control system.
- Other useful features include a built-in 10 W speaker, a built-in closed caption decoder, blackboard modes, etc.
Notes:
*1 With the lamp power set to Eco. Up to 5,000 hours with lamp power set to Normal. The usage environment affects the lamp replacement cycle and duration of the filter.*2 With the lamp power set to Eco. Sound level is 35 dB with the lamp power set to Normal.
*3 Supported media includes PowerPoint® documents, PDF files, JPEG images, web pages (iOS only), and photos (iOS supports photos taken on internal camera only).
*4 If the computer is not equipped with a wireless LAN function, a wireless LAN card is required. Only built-in wireless LAN is supported on Macintosh computers. Functions such as Live Mode and Multi-Live Mode can also be used with a wired LAN.
*5 Wireless Manager ME 6.2 is supported by Windows® XP, Windows Vista®, Windows® 7, Windows® 8, and Mac OS X (v10.6/v10.7/v10.8)
*6 The optional ET-UW100 Easy Wireless Stick cannot transfer audio files. Only the 16-Window Index Style can be used in Multi-Live Mode. A firmware update is necessary before using the ET-UW100. The availability of the ET-UW100 varies depending on the country. Please contact your sales representative for more information.
Specifications
| Brightness | 5500 lumens |
|---|---|
| Technology | LCD |
| Power supply | AC 120 V, 50/60 Hz (North America) |
| Power consumption | 363 W (North America) 0.2 W when STANDBY MODE set to ECO*1 (North America) 14 W when STANDBY MODE set to NORMAL (18 W when a HDBaseT™ device is connected, 30 W at rated audio output while an HDBaseT™ device is connected.) |
| LCD panel | Panel size |
16.0 mm (0.63 inches) diagonal (4:3 aspect ratio) |
| LCD panel | Display method | Transparent LCD panel (x3, R/G/B) |
| LCD panel | Drive method | Active matrix method |
| LCD panel | Pixels |
786,432 (1,024 x 768) x 3, total of 2,359,296 pixels |
| LENS | Manual zoom (1.6x), manual focus F: 1.60 – 1.90, f: 15.31 – 24.64 mm |
| Lens | Throw ratio |
1.2–1.9:1 |
| Lamp |
270 W UHM lamp |
| Screen size |
0.76–7.62 m (30–300 inches) diagonally, 4:3 aspect ratio |
| Colors | Full color (16,777,216 colors) |
| Brightness *2 | 5,500 lumens
(Input signals: PC, Lamp power: Normal, Picture mode: Dynamic) |
| Center-to-corner uniformity*2 | 85% |
| Contrast ratio*2 |
10,000:1 (full on/off, Input signals: PC, Lamp power: Normal, Picture mode: Dynamic, Iris: on) |
| Resolution |
XGA 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
| Scanning frequency | HDMI |
480i (525i)*3, 576i (625i)*3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p VGA (640 x 480) – WUXGA (1,920 x 1,200), VESA CVT-RB compliantdot clock: 25– 162 MHz, HDCP compatible |
| Scanning frequency | RGB | fH: 15–91kHz, fV: 24–100 Hz, dot clock: 162 MHz or less |
| Scanning frequency | YPBPR (YCBCR) | 480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz |
| Scanning frequency | Video/S-Video | fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM] |
|
Optical axis shift |
Vertical 0 to +40% from center of screen (manual), U/D ratio on top end: 9:1 |
|
Keystone correction range |
Vertical: maximum ±35° (auto/manual, input: XGA), Horizontal: maximum ±35° (manual, input: XGA) |
| Installation |
Ceiling/desk, front/rear |
| Built-in speaker | Size: 4 cm (1-9/16 inches) (round) x 1 Output power: 10 W (monaural) |
| Terminals | HDMI IN | HDMI 19-pin x 2, Deep Color, HDCP compatible Audio signals: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
|
Terminals | COMPUTER 1 IN |
D-sub HD 15-pin (female) x 1 |
|
R,G,B |
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B, R: 0.7 Vp-p, 75 ohms; HD/SYNC TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible |
|
Y, PB (CB), PR (CR) |
Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| S-VIDEO |
Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms |
|
Terminals | COMPUTER 2 IN / 1 OUT |
D-sub HD 15-pin (female) Å~ 1, (input/output switching) |
|
R,G,B |
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B, R: 0.7 Vp-p, 75 ohms; HD/SYNC TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible |
|
Y, PB (CB), PR (CR) |
Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| Terminals | VIDEO IN |
Pin jack x 1, 1.0 Vp-p, 75 ohms |
| Terminals | AUDIO IN 1 |
M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | AUDIO IN 2 / MIC IN |
M3 (L, R) x1 1, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | AUDIO IN 3 |
Pin jack (L, R) x1 1, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | AUDIO OUT |
M3 (L, R) x 1 (monitor out, stereo) 0–2.0 Vrms, variable, output impedance: 22 kilohms or less |
| Terminals | USB A |
USB type-A (for the Memory Viewer) x 1 |
| Terminals | USB B |
USB type-B (for the USB Display) x 1 |
| Terminals | SERIAL IN |
D-sub 9-pin (female) x1, for external control (RS-232C compliant) |
| Terminals | DIGITAL LINK/LAN |
RJ-45 x 1, for network connection/DIGITAL LINK, 100BASE-TX, compliant with PJLink™ |
| Power cord length |
2.0 m (6 ft 7 in) 3.0 m (9 ft 10 in) for India |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | 389 x 125*4 x 332*5 mm (15-5/16 x 4-29/32*4 x 13-1/16*5 in.) |
| Weight *6 | Approx. 4.9 kg (10.8 lb) |
| Operation noise *2 |
37 dB (LAMP POWER: NORMAL), 29 dB (LAMP POWER: ECO) |
| Operating temperature | 0°C (32°F) to 40°C (104°F) Elevation: below 1,200 m (3,937') 0°C (32°F) to 30°C (86°F) Elevation: 1,200 m (3,937') – 2,700 m (8,858') * When the ambient operating temperature is 35–40 °C (95–104 °F), [Lamp Power] will switch automatically to [Eco mode]. |
| Operating humidity | 20% to 80% (no condensation) |
See Specifications Sheet on Downloads tab for additional specs on remote control and wireless features.
Notes:
*1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal)
*4 With legs at shortest position.
*5 Include protruding parts.
*6 Average value. May differ depending on models
Weights and dimensions shown are approximate. Specifications subject to change without notice.
Accessories
Downloads
Warranty
3-Year Limited Warranty; 90 Days Lamp.
