Panasonic ET-YFB200G

Digital Link Switcher
Part #: 0601-2997    Mfr #: ETYFB200G

Panasonic ET-YFB200G

Overview

DIGITAL LINK Switcher

ET-YFB200G

  • Simple and Cost-Effective Multi-Output Switching

  • Easy Operation and Installation

  • High-Fidelity Digital Signal Transmission

  • Expand and Customize to Suit Your Application

Features

Simple and Cost-Effective Multi-Output Switching

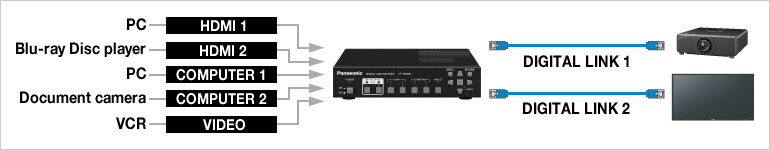

  • 2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio, and command signals to two projectors/displaysET-YFB200G features

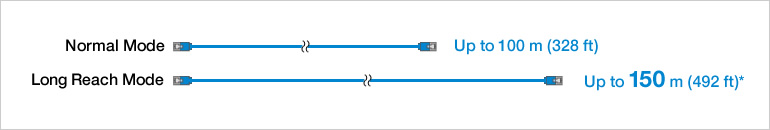

  • Long-distance DIGITAL LINK transmission of up to 150 m (492 ft) through a single CAT 5e (STP) or higher cableET-YFB200G features
  • Daisy-chain (cascade) connection capability for distribution to multiple display devices
  • Abundant input terminals including HDMI inputs (x 2), RGB input, and audio inputs (x 3)
  • Separate audio output facilitates audio playback when projector is powered down

Easy Operation and Installation

  • DVI-D output is included to connect an extra projector/display or to monitor outgoing signals on a connected PC
  • Handy in-browser remote control of switcher unit from PC or tablet
  • Supports Early Warning Software allowing failures to be anticipated or more easily identified
  • User-friendly soft-touch buttons and compact half-rack dimensions

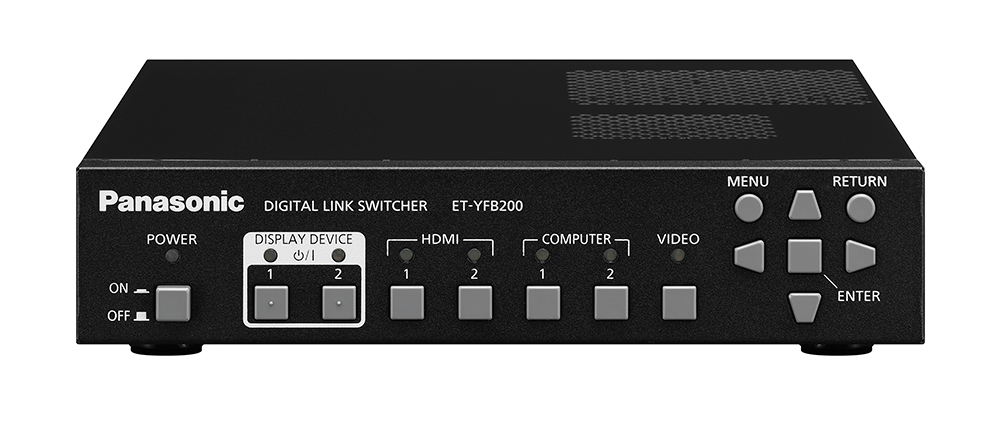

  • Front-panel On/Standby buttons for individual display devices
  • ET-YFB200G input can be selected with the remote control of a Panasonic projector featuring DIGITAL LINK compatibility
  • Compatible with other manufacturer's equipment based on the same technology

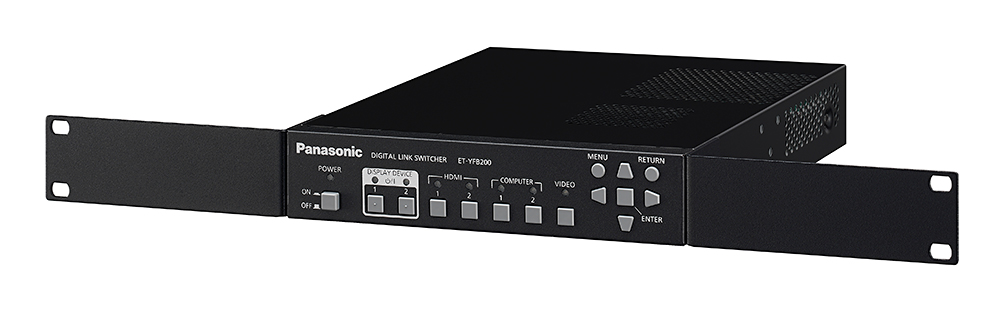

  • Brackets for server rack (EIA standards) mounting included

High-Fidelity Digital Signal Transmission

  • Digital transmission ensures lossless image and sound quality over long distances
  • Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images
  • No Signal Sleep Mode automatically shuts down DIGITAL LINK output when no input signal is detected, saving power
  • PC signals are automatically resized and output at the optimal resolution to suit the projector's panel resolution*
  • Auto Setup function automatically distinguishes input signal and adjusts to output at the optimal viewing angle
  • 3D video format transmission supported (Pass Through Mode only)
  • Closed caption compatibility

* The output setting for the ET-YFB200G should be set to AUTO. This scaling/resizing function does not support some formats.

Expand and Customize to Suit Your Application

  • Distribute digital signals to two display devices
  • Daisy-chain (cascade) to connect multiple display devices
  • Integrate 3x3 video wall installations

Specifications

Power supply DC 16 V (DC input terminal)
Power consumption
(use with supplied AC adaptor)
32 W [0.15 W with power off]
(including power consumption of AC adaptor)
AC ADAPTER
Input 100 V–240 V AC (1.5 A–0.8 A)
Output DC 16 V, 3.75 A
TERMINALS

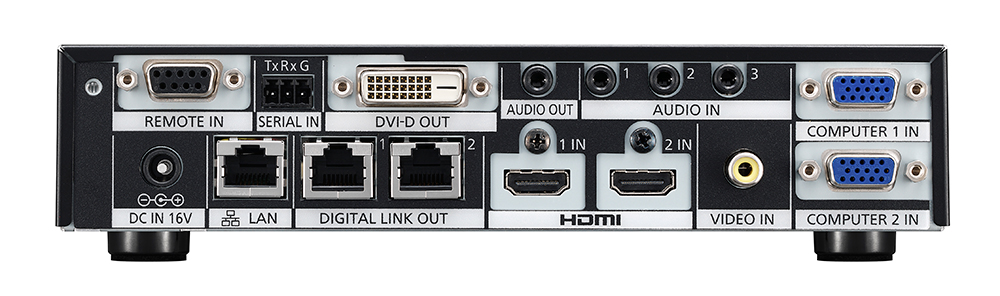

COMPUTER 1 IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 2)*1
COMPUTER 2 IN D-sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
AUDIO IN 1 M3 (L-R) x 1
AUDIO IN 2 M3 (L-R) x 1
AUDIO IN 3 M3 (L-R) x 1
DIGITAL LINK OUT 1 RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant
DIGITAL LINK OUT 2 RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant
DVI-D OUT DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
SERIAL IN 3-pin 3.5 mm detachable terminal block for external control (RS-232C compliant)
AUDIO OUT M3 (L-R) x 1 (variable)
REMOTE IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN IN RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink
HDMI 1 IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
HDMI 2 IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
OTHER
Dimensions (W x H x D) 210 x 44 x 250 mm (8-9/32" x 1-23/32" x 9-27/32") (not including protruding parts)
Weight Approximately 1.3 kg (2.87 lbs)*2
Operating environment Operating temperature: 0-40 °C (32-104 °F)*3, operating humidity: 20-80 % (no condensation)
Supplied accessories AC adaptor x 1, power cords (2 m) x 3, AC power cord holder x 1, AC power cord holder screw x 1,
mounting brackets for rack installation x 2, countersunk screws x 6, legs x 4, screws for installing legs x 4,
plug for 3-pin 3.5 mm detachable terminal block x 1

Notes:

*1: S-Video signals can be input with an S-Video conversion cable (ET-ADSV).

*2: Average value. May differ depending on models.

*3: Please use at elevations below 2,700 m (8,858 ft) above sea level. When used at 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level, operating temperature range is 0 °C to 35 °C (32 °F to 95 °F).
