Epson Pro EX10000

Laser LCD Projector, 1080p, 4500 Lumens, D:W 1.22-2.16:1, Miracast, Black, 2-Year Warranty
Item #0601-3106 Model #V11H990120

Overview

Epson Pro EX10000

3LCD Full HD 1080p Wireless Laser Projector with Miracast

Own the room with the all new Pro EX10000 Full HD 1080p wireless laser projector — a breakthrough in business projection, only from Epson®. Designed to maximize visibility for socially distanced presentations, this sleek projector displays vivid, larger-than-life images up to 300" with 4,500 lumens of color and white brightness.

Epson's most advanced business projector to date, the high‑performance Pro EX10000 features advanced 3-chip 3LCD technology, Best‑in‑Class Color Brightness, and an incredible contrast ratio up to 100,000:1 to produce vibrant, captivating images with sharp details.

Built for convenience, the Pro EX10000 includes a 20,000-hour laser light source with no lamps to replace. It also allows for intuitive Zoom video conferencing, and offers easy connectivity to streaming devices such as Fire TV, Apple TV®, Roku, and Chromecast through the HDMI® ports, so you can share a variety of rich content, including movies, TV shows and more.

Key Features:
  • 4,500 lumens of color and white brightness
  • Full HD 1080p resolution delivers crisp text and images
  • 20,000-hour virtually maintenance-free laser light source
  • True 3-Chip, 3LCD technology
  • Wireless, Miracast® and two HDMI ports

(P/N: V11H990120)

Features

  • Astounding image quality: Amazing Full HD 1080p1 resolution delivers crisp text and images; perfect for displaying professional-quality presentations, video and more
  • Best-in-Class Color Brightness: 4,500 lumens of color and white brightness2 ideal for displaying large-group presentations, spreadsheets and videos, even in well-lit rooms
  • High-performance laser light source: 20,000 hours virtually maintenance-free laser light source delivers incredible brightness with no lamps to replace4
  • True 3-Chip 3LCD technology: displays 100% of the RGB color signal for every frame, providing outstanding color accuracy while maintaining excellent color brightness, without any distracting "rainbowing" or "color brightness" issues seen with other projection technologies
  • Wireless connectivity: including screen mirroring with Miracast®, plus two HDMI ports, so you can easily video conference and connect streaming devices, including Fire TV, Apple TV, Roku and Chromecast5
  • Get up and running in no time: with easy image adjustments and convenient control like 1–1.6x optical zoom, horizontal slider and auto vertical correction
  • Incredible sound: built-in 16 W speaker for astounding audiovisual experience and incredible sound quality right out of the box
  • Built-in picture skew sensor: automatically analyzes the picture and instantly corrects the vertical keystone to help square the image
  • Astounding dynamic contrast ratio up to 100,000:1: provides exceptionally crisp, rich detail for graphs, images and videos
  • Award-winning service and support: standard 1-year limited warranty, full-unit replacement, along with free technical phone support for the life of the product



Eco Features

  • RoHS compliant
  • Recyclable product6
  • Epson America, Inc. is a SmartWay® Transport Partner7

Notes:

1 Pixel shifting technology achieves full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.
4 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
5 Requires wireless network connection of 5 Mbps or faster. Some apps require paid subscriptions.
6 For convenient and reasonable recycling options, visit www.epson.com/recycle
7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technology
Projection Method: Front/rear/ceiling mount
Driving Method: Epson Poly-silicon TFT Active Matrix
Output Resolution: Full HD 1080p with pixel shifting; 1366 x 768 native
Aspect Ratio: 16:9
Resize Support:  16:10, 4:3
Color Brightness1 - Color Light Output: 4,500 lumens
White Brightness1 - White Light Output: 4,500 lumens
Contrast Ratio: Up to 100,000:1
Color Reproduction: Up to 1.07 billion colors
Size (Projected): 40" – 500"
Keystone Correction (Auto): Vertical: ± 30 degrees
Keystone Correction (Manual): Horizontal: ± 30 degrees
Light Source Type: Laser
Light Source Life2: Up to 20,000 hours (normal/quiet mode)
USB Plug'n Play: Projects audio and video, PC and Mac® compatible

Projection Lens:

Type: Optical Zoom (Manual) /Focus (Manual)
F-number: 1.49 – 1.77
Focal Length: 18.2 29.2 mm
Zoom Ratio: 1 – 1.6x optical zoom
Throw Ratio: 1.33  1.62
Throw Ratio Range: 1.33  2.16

Other Features

Display Performance: NTSC: 1080p, HC, 2D
Input Signal: HDMI: TMDS
Video Compatibility: 2D: WXGA 60 Hz, WXGA, SXGA, XGA, SVGA, VGA
Computer Compatibility: PC, Mac
Media Format: 16:9
Operating Temperature: 32° to 104°F (0° to 40°C)
Fan Noise: Normal Mode: 36 dB
Quiet Mode: 27 dB
Speaker: 16 W mono

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption: Normal, Custom Mode: 265 W
Quiet, Extended Mode: 201 W
Energy Saving: 0.5 W

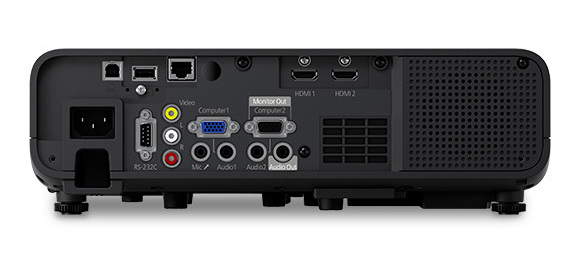

Interfaces:

  • 2x HDMI
  • Computer/component video: 1x D-dub 15-pin
  • Composite video: 1x RCA (Yellow)
  • Audio In: 1x RCA (White/Red)
  • 1x USB connector Type-A: PC-free USB and other
  • 1x USB connector Type-B: USB Plug 'n Play
  • RS-232
  • Audio In: 1x RCA (White Red), 2x 3.5 mm Stereo Mini
  • Ethernet (RJ-45)
  • Mic port
  • Creston and Control4 supported

Dimensions (W x D x H):

Including Feet: 12.8" x 11.8" x 4.1"
Excluding feet: 12.8" x 11.8" x 3.5"
Weight: 9.1 lb

Remote Control:

Features: Front and rear directional
Operating Distance: 19.7 ft (6 m)
Operating Angle: Right/left: ±30 degrees
Upper/lower: ±30 degrees


What's In The Box:

  • Pro EX10000 projector
  • Power cable
  • Projector remote control
  • Batteries
  • Quick Setup Guide

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
