Epson W75
Overview
Epson PowerLite W75
Bright colorful displays on the go with this sleek, compact mini laser projector.
Take bright, dynamic projection with you wherever you go with the ultra portable PowerLite W75 mini laser projector. Designed for classrooms, meeting spaces and signage projects, this compact mini projector features cutting-edge 3LCD technology to display colorful HD images up to 150" from nearly anywhere in the room, including from tabletops and ceiling mounts.
Featuring a sleek, modern design, the PowerLite W75 seamlessly blends into a variety of décor styles and offers over 2,000 lumens of color and white brightness to deliver stunning displays even in well-lit spaces. With Bluetooth® connectivity and built-in HDMI connections for streaming devices, sharing engaging content has never been easier.

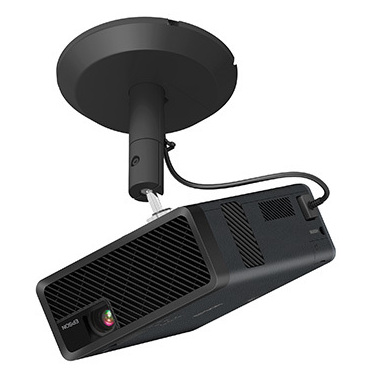

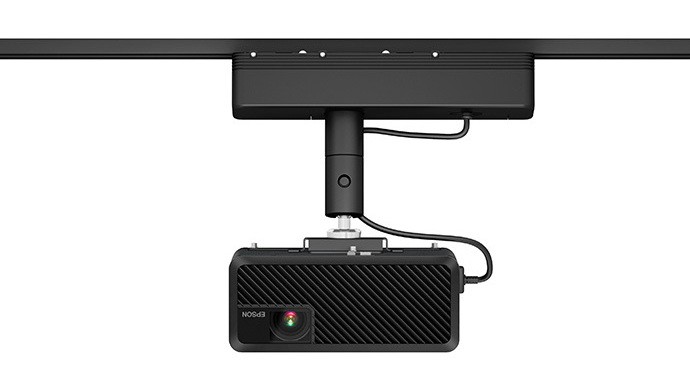

Lighting track and mounts NOT included. Installation options shown for positioning only.
(Model: V11HA20120)
Also available in white as PowerLite W70.
Features
- Small but impactful: A compact, powerful, display-on-the-go solution for classrooms, meeting rooms and signage projects; modern design blends into any décor style
- Outstanding Brightness: 2,000 lumens of color and white brightness1 displays a clear picture even in well-lit spaces
- Remarkable Image Quality: Displays bright, colorful, HD images up to 150" on virtually any wall
- Impressive Audio Technologies: Built-in Bluetooth® connectivity with aptXTM compatibility provides amazing audio quality for any project
- Lasting Reliability and Durability: Up to 12,000 hours laser light source lamp-free design in eco mode2
- Award-winning Service and Support: Epson's best-in-class, 2-year, full-unit replacement warranty along with free technical phone support for the life of the product
- The ultimate in connectivity: HDMI® and Bluetooth connectivity for added convenience and ease of use
- Easily project a variety of content: built-in compartment for an optional media-player (not included)
- Proprietary 9-element lens structure: for exceptional image quality in a small form factor
Eco Features
- Recyclable product3
- RoHS compliant
- Epson America, Inc. is a SmartWaySM Transport Partner4
Notes
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 For convenient and reasonable recycling options, visit www.epson.com/recycle
4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications:
| Projection System: | Epson 3LCD |
| Chip Design (Architecture): | 3-Chip |
| Projection Method: | Front/rear/floor stand |
| Product Color: | Black |
| Driving Method: | Poly-silicon TFT Active Matrix |
| Pixel Number: | 1,024,000 dots (1280 x 800) x 3 |
| Color Brightness1 - Color Light Output: | 2,000 lumens |
| White Brightness1 - White Light Output: | 2,000 lumens |
| Aspect Ratio: | 16:10 |
| Native Resolution: | WXGA |
| Maximum Resolution: | 2560 x 1600 |
| Illumination Technology: | Laser Diode |
| Light Source Life2: | Normal Mode: 12,000 hours Extended Mode: 20,000 hours |
| Size (Projected Distance): | 22"–150" (Zoom: Wide and Zoom: Tele) |
| Keystone Correction Auto/Manual: | Vertical: ± 45 degrees Horizontal: ± 40 degrees |
| Color Processing: | Full 10-bit |
| Contrast Ratio: | 2,500,000:1 |
| Color Reproduction: | Full color (up to 16.77 million colors) |
Projection Lens:
| Type: | No Optical Zoom / Focus (Manual) |
| F-number: | 1.58 |
| Focal Length: | 13.53 mm |
| Throw Ratio Range: | 1:40:1 |
| Zoom Ratio: | 1.0 – 1.35 (digital) |
Other Features:
| Color Modes: | Dynamic, Bright Cinema, Natural, Cinema, HDMI® (HDCP 1.4) |
| Input Signal: | HDMI |
| Operating Temperature: | 41° to 95°F (5° to 35°C) |
| Power Supply Voltage: | 100 – 240 V AC ± 10%, 50/60 Hz |
| Power Consumption: | ECO Mode: 118 W Normal Mode: 178 W |
| Fan Noise: | 26 – 29 dB |
| Security: | Kensington Lock |
Dimensions:
| W x D x H: | 8.3" x 9.1" x 3.6" (211 x 231 x 91 mm) including feet |
| Weight: | 6.0 lb (2.7 kg) |
Remote Control:
| Features: | Front and rear directional |
| Operating Distance: | 16.4 ft (5.0 m) |
| Operating Angle: | Front Right/Left: ±30 degrees Upper/Lower: ±15 degrees Rear Right/Left: ±30 degrees Upper/Lower: ±15 degrees |
Warranty
Two-Year or 12,000-hour Projector Limited Warranty
What's in the box:
- PowerLite W70 projector
- Power cable
- Remote control
- 2 AAA batteries
- Documentation
Notes
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period
