Epson QS100B
Overview

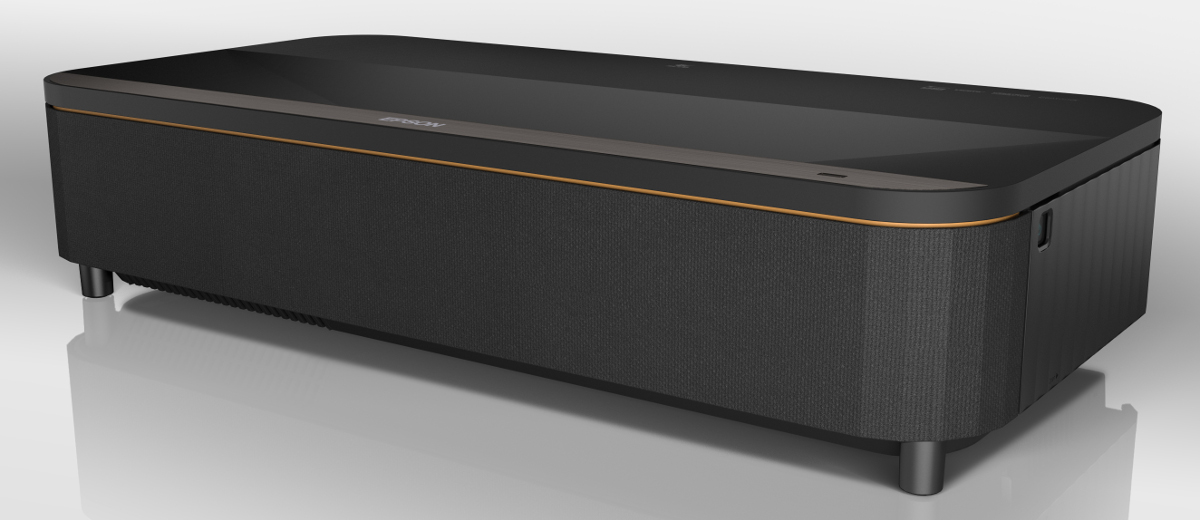

Epson QS100B
4K PRO-UHD HDR 4,500-Lumen 3LCD Ultra Short Throw Laser Projector
The next generation of ultra short throw, high-lumen projection from Epson is here. Introducing the all-new Epson QS100B 4K PRO-UHD® 3LCD Laser Projector with HDR.
Setting a new standard for ambient light viewing, the QS100B combines 4,500 lumens of color brightness (IDMS Rated) and 4,500 lumens of white brightness (ISO Rated) with proprietary 3-chip 3LCD laser-array technology for an exceptionally bright picture—even in well-lit rooms.
Redefining the entertainment experience, the QS100B produces stunning images up to 160" with cutting-edge ultra short throw technology. Remarkably flexible, it integrates with major smart home control systems for a customizable experience to match the unique needs of your project. Plus, it is ISF Certified to calibrate the picture according to the environment.
Incorporating our most advanced projection technologies to date, the QS100B is driven by our unique Epson QZX Picture Processor, optimizing incredible brightness and color accuracy for a wide variety of content, including live sports, TV shows, movies and gaming. Additionally, the projector's dynamic tone mapping feature fine-tunes the HDR performance to create a smooth, bright picture.
The Epson QS100B Laser Projector reimagines the premium 4K PRO-UHD viewing experience and may be the best ultra short throw projector ever developed by Epson!
Key Features:
- Precise ultra short throw lens for a picture up to 160"
- 4,500 lumens of Color Brightness (IDMS Rated) and 4,500 lumens of White Brightness (ISO Rated)
- 4K PRO-UHD technology for amazing picture detail and clarity (through pixel shifting)
- 3-chip 3LCD technology for a clear picture, even in brightly lit rooms
- Advanced Dynamic Tone Mapping
Note: The QS100B is a black model. See QS100W for the white version of this projector. Screen is not included (see Accessories tab).
(Model: V11HB49120)
Features
- Cutting-Edge Ultra Short Throw Lens Technology: Unlike standard throw projectors, the precision glass ultra short throw lens drastically reduces the throw distance and supports screen sizes up to 160", from just a few inches away.
- Ultra-Bright Picture: Delivers outstanding color accuracy with 3-chip 3LCD technology and 4,500 lumens color brightness (IDMS Rated) and 4,500 lumens of white brightness (ISO Rated)2. Offers new preset picture modes specifically calibrated for bright environments.
- Exceptionally Sharp 4K Experience: A new type of 4K experience, utilizing advanced pixel-shifting technology to precisely control three individual high-definition LCD chips to produce an exceptionally sharp 4K experience without sacrificing picture brightness.
- Impressive HDR: Full 10-bit HDR color processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR103 and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Dynamic tone mapping automatically adjusts to the optimal HDR level according to the scene
- Epson QZX Picture Processor: Proprietary 32-bit Epson processor delivers extraordinary contrast even in bright environments thanks to advanced dynamic tone mapping, optimizing each frame for exceptional brightness and contrast.
- Smart Home Control: Professional-grade IP control systems like Control4® and Crestron® control systems, as well as PJLink, are supported to create an intuitive home entertainment experience.
- Quick Turn-On Laser Array Light Source: True multi-array laser diodes produce an ideal light source that delivers incredible color accuracy, and is virtually maintenance-free for up to 20,000 hours4.
- Epic Big Picture Gaming Performance: Smooth gaming experience with support for Auto Low Latency Mode (ALLM) and very low input lag for competitive gaming.
- Simple and Flexible Installation: With individually adjustable feet, multi-point picture settings and an optional wall mount bracket, it is easy to set up this ultra short throw projector in no time.
- World-Class Warranty & Support: Standard 3-year limited warranty with 2-business day full unit replacement, including free shipping
- Eco Features
- RoHS compliant
- End-of-life options available5
- Epson America, Inc. is a SmartWay® Transport Partner6
What's In The Box:
- Epson QS100B 4K PRO-UHD1 HDR UST Laser Projector
- Power Cable
- Remote Control
- 2x AA Batteries
- Quick Setup Guide
Notes:
1 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility
4 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
5 For convenient and reasonable recycling options, visit www.epson.com/recycle
6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications – Projector
| Projection System | Epson 3-chip 3LCD technology (ultra-short throw) |
| Projection Method |
Ceiling Mount Front / Ceiling Mount Rear / Table Projection Front / Table Projection Rear / Portrait Right / Portrait Left |
| Projector Color | Black |
| Driving Method | Poly-Silicon TFT Active Matrix |
| Maximum Resolution |
4K Enhancement (1920 x 1080 x 2)1 |
| Native Resolution | 1080p (1920 x 1080) |
| Native Aspect Ratio |
16:9 widescreen (4:3 and 16:10 resize) |
| Focus Control | Precision Manual Slider |
| Refresh Rate |
Up to 4K 60 Hz |
| Color Brightness (Color Light Output2) | 4,500 lumens (Color Mode: Dynamic; Zoom: N/A; Dynamic contrast: Off) |
| White Brightness (White Light Output2) | 4,500 lumens (Color Mode: Dynamic; Zoom: N/A; Dynamic contrast: Off) |
| Dynamic Contrast Ratio |
Over 5,000,000:1 (Color Mode: Dynamic; Consumption: Normal; Zoom: Wide) |
|
Maximum Color Gamut |
BT. 2020 |
|
Chroma Subsampling |
4:2:2 (4K PRO-UHD1 60 fps HDR103, HLG), 4:4:4 (4K 24 fps HDR103, HLG), 4:4:4 (4K 60 fps no HDR) |
| Color Reproduction | Full 10-bit (up to 1.07 billion colors) |
| High Dynamic Range |
HLG, HDR103 |
| Light Source | Laser diode |
| Dynamic Laser Life4 | Up to 20,000 hours (Power Consumption: Normal, Quiet) |
Projection Lens
| Type | Manual focus |
| F-number | 1.8 |
| Focal Length | 2.3 mm |
|
Zoom Ratio |
1–1.35 (Digital Zoom) |
| Throw Ratio |
0.16 (Zoom Wide), 0.22 (Zoom Tele) |
Other Features
|
Digital Video Compatibility |
HDMI® digital signal inputs 2160p (at 24/30/50/60 Hz), 1080p (at 24/30/50/60 Hz), 1080i (at 50/60 Hz), 720p (at 50/60 Hz), 576p (at 50 Hz), 480p (at 60 Hz) |
| Operating Temperature | Low Altitude: 32° F to 104° F (0° C to 40° C) High Altitude: 32° F to 95° F (0° C to 35° C) |
| Power Supply Voltage | 100–240 VAC ±10%, 50/60 Hz |
| Power Consumption | Normal mode: 346 W Eco mode: 219 W Network Standby: 2.0 W Energy Saving: 0.4 W |
| Fan Noise | Normal Mode: 34 dB Quiet Mode: 20 dB |
|
Color Modes |
Dynamic, Vivid, Cinema, Natural |
|
HDR Adjustment |
Dynamic Tone Mapping |
|
Gaming Features |
ALLM (Auto Low Latency Mode) |
|
Geometry Correction |
Quick Corner, Arc, Point, Geometry Correction Wizard & Memory, Epson Setting Assistant App |
|
HDMI Link |
Supports HDMI CEC |
|
Web Control |
Projector Setup and Control via Web browser |
|
Smart Home |
Control PJLink, Control4, Crestron Support |
Interfaces
| HDMI |
2x HDCP 2.3 (18 Gbps) ports supporting CEC HDMI2 supports eARC/ARC |
| USB Type-A |
2x (1x PC Free, content playback, Firmware updates, 1x for 5 V / 2 A power supply) |
| USB Type-B | for Firmware updates LAN RJ45 (control only) 1x RS-232C (DB-9) |
Dimensions - Projector (W x D x H)
| Including Feet |
27.4" x 13.4" x 6.2" (696 x 340 x 157 mm) |
| Weight |
26.46 lb (12.00 kg) |
Remote Control
| Infrared Receiver Operating Distance | Front/Rear: 19.7' (6 m) |
| Operating Angle | Rear: Left/Right: ±30 degrees, Upper/Lower:
+60 degrees to +0 degrees |
Warranty
3-year projector limited warranty
Notes:
1 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility
4 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
