NEC PA903X
LCD Projector, 1024x768 XGA, 9000 Lumens, H&V Shift, Stacking Correction, Edge Blending, Geometric Correction, No Lens, 3-Year Warranty
Item #0601-3275
Model #PA903X
Overview

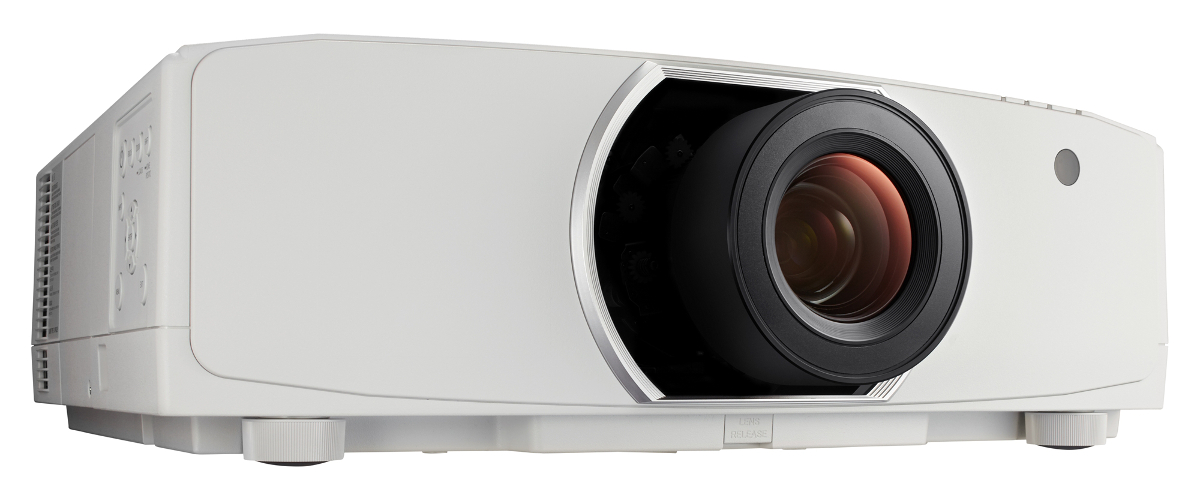

NEC PA903X
9,000-Lumen Professional Installation Projector with 4K support (no lens)
NEC's PA903X is a 9000-lumen advanced professional installation model that appeals to higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible.
Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities, as well as built-in edge blending and stacking.
The HDBaseT input and separate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
Note: lens is not included.
Features
Main Features
- 4K Ready - Display stunning 4K 60P content using NEC's proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from "Ultra HD Blu-ray" and "4K TV broadcasting" are supported on all digital inputs
- Basic control of competitors product reducing the need for reprogramming of a control system
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
- Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
- High performance video processing/scaling creates life-like images
- Integrated software applications such as Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 9000-lumen brightness enhances images for most applications
Additional Features
- Powered Lenses
- Manual Keystone Correction
- 3D Stereo
- Geometric Correction
- 10,000-hour Filter Life
- Quick power on
- ECO Mode Technology
- DiCom Simulation
- Edge Blending
- Stacking
- Virtual Remote
- NaViSet Administrator 2
- Quick power-off
- Picture-in-Picture
- Advanced AccuBlend
- AutoSense
Specifications
Display
| Aspect Ratio | 4:3 |
| Native Resolution | XGA 1024x768 |
| Maximum Resolution | 4K 4096 x 2160 |
| Contrast Ratio (typical) | 10,000:1 with auto iris |
Synchronization Range
| Horizontal (Analog/Digital) | Analog: 15–100 kHz, Digital: 15–153 kHz |
| Vertical | 48–120 Hz, Digital: 24–120 Hz |
Signal Compatibility/Connectivity
| Supported Video Standards | NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K |
| PC Signal Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA |
| Macintosh Signal Compatibility | Yes |
| Sync Compatibility | Separate Sync / Composite Sync / Sync on G |
| External Control | RS-232, IR, HDBaseT, DDC/CI, USB |
| Input Terminals |
RGB1 (analog): VGA 15-pin D-sub
RGB2 (digital): HDMI w/ HDCP (V2.2)
RGB3 (digital): HDMI w/ HDCP (V2.2)
RGB4 (digital): DisplayPort w/HDCP (V1.4)
RGB5 (digital): HDBaseT w/HDCP (V2.2)
Audio 1: Stereo Mini Jack
|
| Output Terminals | Audio out: Stereo Mini Jack |
Power Consumption (typical)
| On | 566W / 390W / 0.7W / 0.3W |
| Input Current | 6.2–3.1 A |
| Power Requirements | 100–240 V AC, 50/60 Hz |
Physical Specifications
| Dimensions (WxHxD) |
19.8 x 16.2 x 6.6 in.
(503 x 411 x 168 mm) |
| Weight |
22.5 lb / 10.2 kg
|
Environmental Conditions
| Operating Temperature | 41–104°F / 5-40°C |
| Storage | 14–122°F / -10–50°C |
Optical
| Display Technology | 0.76" LCD w/ MLA |
| Lamp Type | 420 W AC |
| Light Output (Lumens) | 9,000 normal |
| Light Source Life |
3000 hours normal / 5000 hours eco |
| Screen Size (diagonal) | 40 to 500 in. / 1.02 to 12.7 m |
| Projection Distance | 2.5 to 68.5 ft / 0.74 to 20.9 m |
| Projector Angle | 10.3 to 10.8° tele / 13.7 to 14.5° wide |
|
Lens |
Not included. See Accessories tab. |
| Optional Lenses | NP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL |
| Keystone Correction | ±40° horizontal, ±30° vertical |
Mechanical
| Fan Noise | 39 dB normal / 33 dB eco |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Regulations | USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) |
Limited Warranty (parts & labor)
Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. The lamp is covered for one year or 1,000 hours, whichever comes first.
Ships with:
- Remote control
- Batteries
- Power cord
- Lens hole cap
- User manual
- Quick Start Guide
- Product registration card
- Lens anti-theft screw Security Sticker
Accessories
Optional Lenses
| Model | NP11FL | NP30ZL | NP40ZL | NP12ZL | NP41ZL Std Lens |
NP14ZL | NP43ZL | |
|
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
|
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W XGA |
0.79:1 | 0.79–1.04:1 | 0.79–1.11:1 | 1.16–1.52:1 | 1:30–3:02:1 | 1.46–2.95:1 | 2.90–4.68:1 | 2.99–5.93:1 |
| f/stop | 2.3 | 1.9–2.1 | 2.0–2.5 | 2.2–2.69 | 1.7–2.0 | 1.7–2.37 | 2.2–2.64 | 2.2–2.6 |
Other Accessories
 |
Ceiling mounts | |
 |
Replacement lamp (NP42LP) | |
 |
Replacement filter (NP06FT) |
