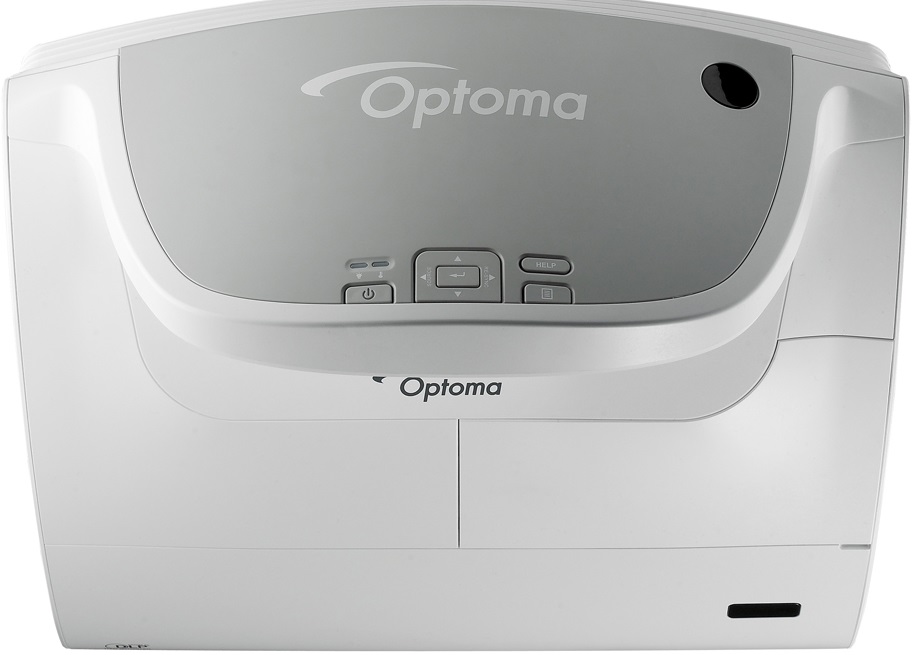

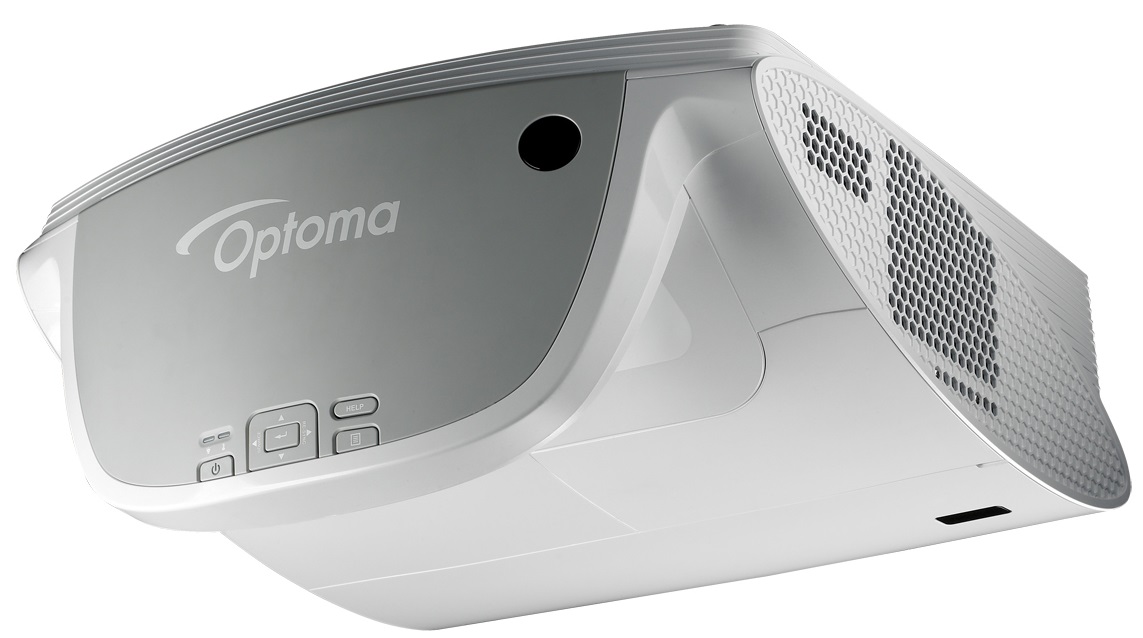

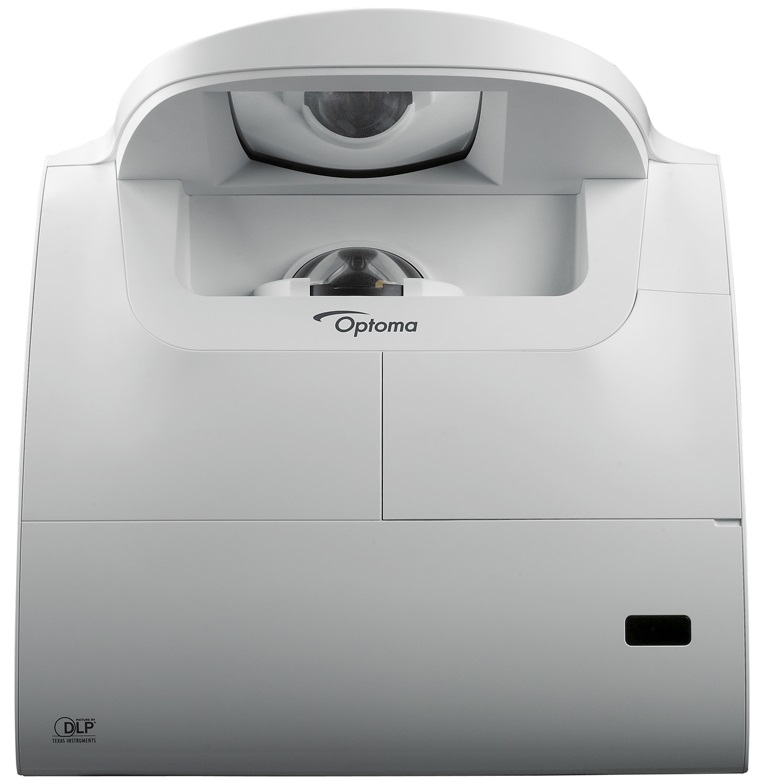

Optoma TW695UT-3D

DLP Proj, 1280x800, 3500L, Open Box
Item #0601-3577-U Model #TW695UT3D



Bring Lessons to Life

Delivers a large image from only inches away from the screen

Ultra Short Throw projection eliminates uncomfortable harsh light in teacher's eyes

Present class material in 3D to help students absorb and retain more

Comprehensive connectivity to satisfy your current and future needs


Display Technology Single 0.65” DC3 DMD DLP® by Texas Instruments™
Resolution WXGA 1280 x 800
Brightness 3500 lumens
Contrast Ratio 3000:1 (full on/full off)
Lamp Life2 Bright 2500 (hrs)
Throw Ratio 3 0.3 (distance/width)
Zoom Type -

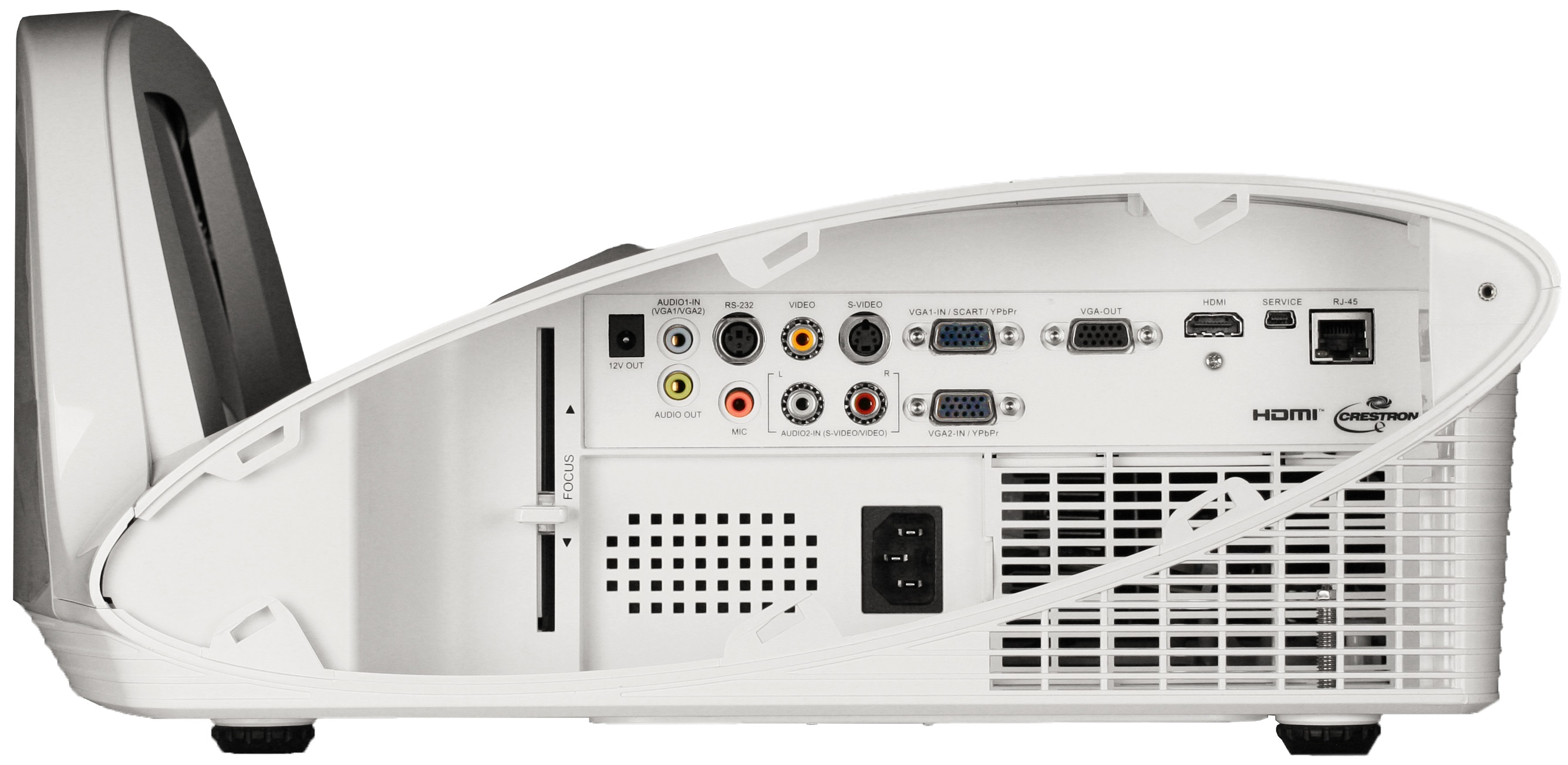

I/O Connectors HDMI v1.3, two VGA-in, VGA-out, S-video, composite video, RCA stereo audio-in, stereo audio-in, stereo audio-out, mini USB, microphone-in, 12V trigger, RJ45 and RS-232
Speaker (Watts) Two 5-Watt speakers, variable audio out, HDMI audio pass-thru
Keystone Correction -
Weight 16.8 lbs (7.6 kg)
Dimensions (W x D x H) 16.8” x 8.27” x 16” (426.5 x 210 x 407 mm)
Aspect Ratio 16:10. 16:9, 4:3
Offset 125%
Projection Distance 19.3”–25.8” (projector mirror to screen)
Projection Lens F=2.71, f=4.415 mm, manual focus
Uniformity >85%
Maximum Resolution VGA: 1600 x 1200HDMI: 1920 x 1080
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
Horizontal Scan Rate 15.3–91.1KHz
Vertical Scan Rate 24–85 Hz, 120Hz
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 30dB/32dB
Power Supply AC input 100-240V, 50-60Hz,auto-switching
Power Consumption 365W max (bright), 325W (eco),14W (active standby),
Lamp Type 280W
Operating Conditions 41°–104°F (5°–40°C), 85% max humidity
Security Kensington® lock port, security bar and keypad lock
Remote Control IR Remote
Standard Accessories TW695UT-3D projector, 3m AC power cord, 5m VGA to VGA cable, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start card and warranty card
Optional Accessories HDMI cable, microphone, component to VGA cable, composite video cable, RS-232 cable, DLP-Link™ 3D glasses and Optoma screens
Optional Wireless No
