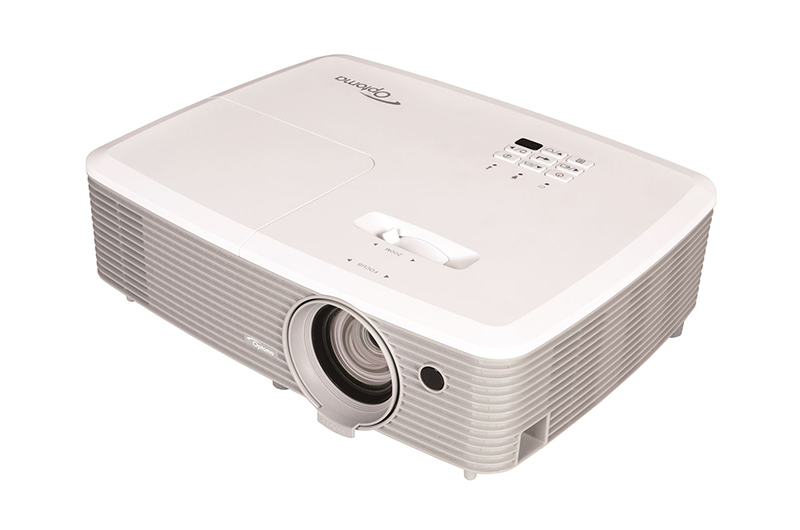

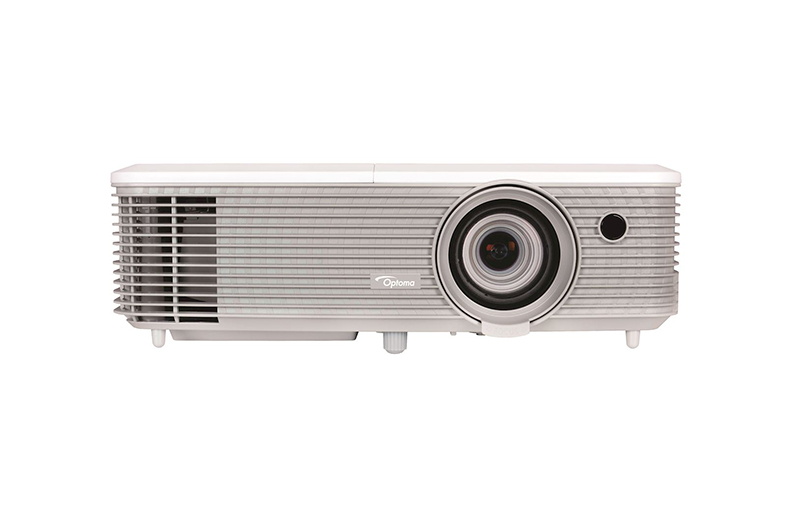

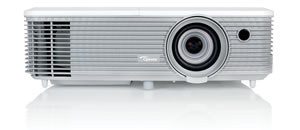

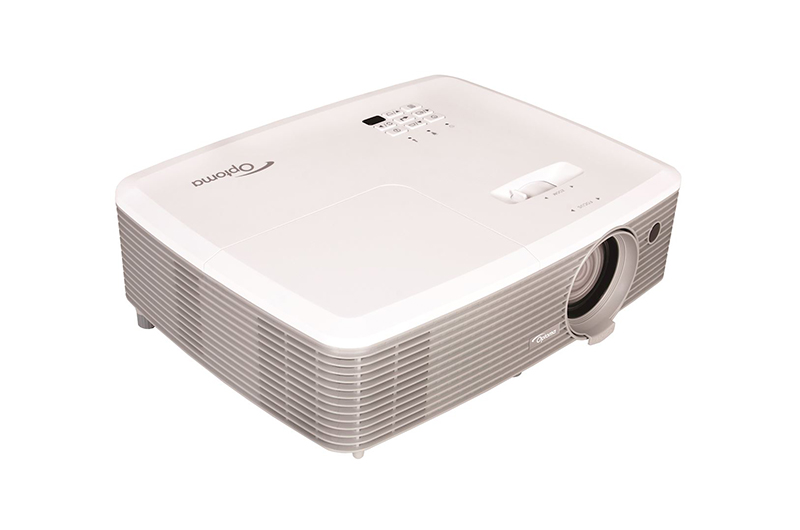

Optoma X345
Overview
X345Bright, powerful and portable
|
 |
Make your presentations count regardless of the ambient light level using the bright X345. Designed for business and educational environments. This small projector boasts accurate true to life color reproduction color precision with sRGB colors; all your content will look crisp and natural. It also features long lamp life and energy-saving features will also provide you with a low overall cost of ownership.
Easy to connect to with multiple inputs, a built-in speaker, and USB Power, you can easily connect a HDMI dongle such as the Google Chromecast and the Optoma HDCast Pro (sold separately) or a laptop, PC, or Blu-ray player for clear projected images with sound. Portable and lightweight projector can be installed or taken on the move for off-site meetings with the optional carrying bag (sold separately).
Discounts and free warranty extensions are available on this projector to qualified educational institutions.
Please request details.
Specifications
| Display Technology | Single 0.55” XGA DC3 DMD chip DLP® Technology by Texas Instruments |
| Native Resolution | XGA 1024 x 768 |
| Brightness | 3200 ANSI Lumens |
| Contrast Ratio | 22,000:1 |
| Lamp Life Eco+/Dynamic/Eco/Bright/Education cycle | 8000/7000/6000/5000/10000 (hrs) |
| Throw Ratio | 1.49 - 1.93:1 |
| Zoom Type | 1.3x Manual |

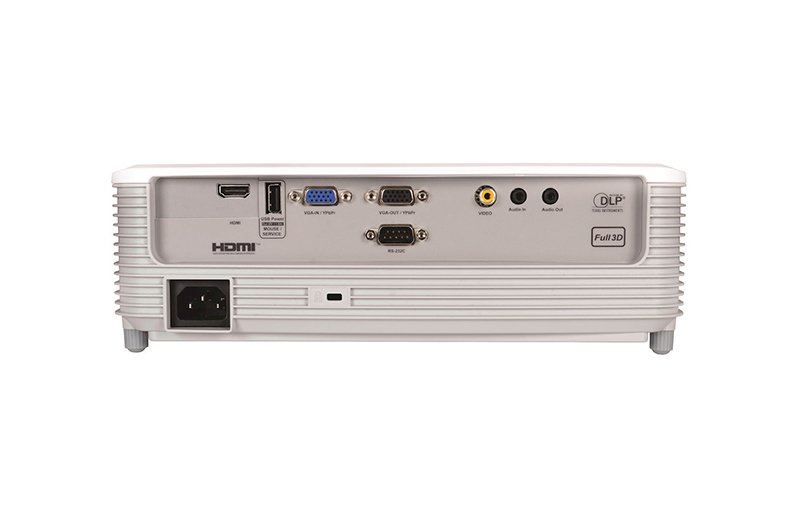

| I/O Connectors | HDMI (1.4a 3D support), VGA (YPbPr/RGB), Composite, Audio in 3.5mm, VGA out, Audio out 3.5mm, RS232, USB-A Power (1A) |
| Speaker (Watts) | 2 |
| Keystone Correction | ± 40° Vertical |
| Weight | 5.3 lbs (2.41 kg) |
| Dimensions (W x H x D) | 298 x 230 x 96.5 |
| Aspect Ratio | 4:3 Native, 16:9 Compatible |
| Offset | 115% |
| Projection Screen Size | 0.78 - 7.65m (30.6" - 301.1") Diagonal 4:3 |
| Projection Distance | 1.2 - 9.1m |
| Projection Lens | F/2.5~2.78; f=16.91~21.6mm |
| Uniformity | 75% |
| Computer Compatibility | FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz) |
| 3D Support | Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modeling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility | Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate | 15.3 - 91.1kHz |
| Vertical Scan Rate | 24 - 85Hz (120Hz for 3D) |
| Displayable Colors | 1073.4 Million |
| Noise Level (Eco mode) | 29dB |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 225W Bright mode / 187W Eco mode (< 0.5W Standby) |
| Lamp Type | 195W |
| Operating Conditions | 41°F - 104°F, Max. Humidity 85%, Max. Altitude 3000m |
| Security | Security bar, Kensington lock, password protection |
| On Screen Display | 26 Languages: English, German, French, Italian, Spanish, Portuguese, Swedish, Dutch, Norwegian/Danish, Polish, Russian, Finnish, Greek, Hungarian, Czech, Arabic, Traditional Chinese, Simplified Chinese, Japanese, Korean, Thai, Turkish, Farsi, Vietnamese, Romanian, Indonesian |

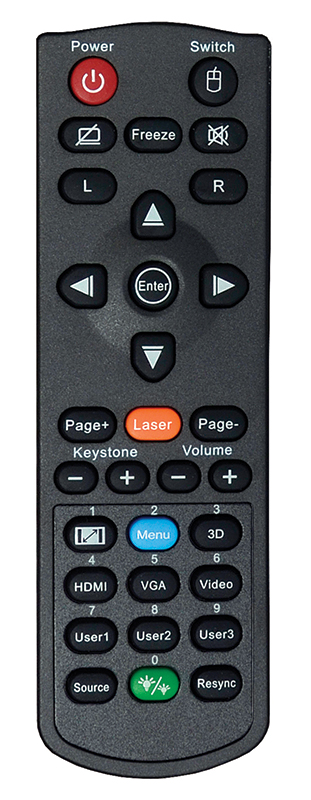

| Standard Accessories | AC power cord, VGA cable, remote control, battery, quick start card, CD user manual |
| Optional Accessories | DLP® Link™ 3D glasses, wireless, ceiling mount |
| Optional Wireless | Yes |
| RoHS | Compliant |
Downloads
Warranty
3-Year Optoma Express Service, 1-Year on Lamp
