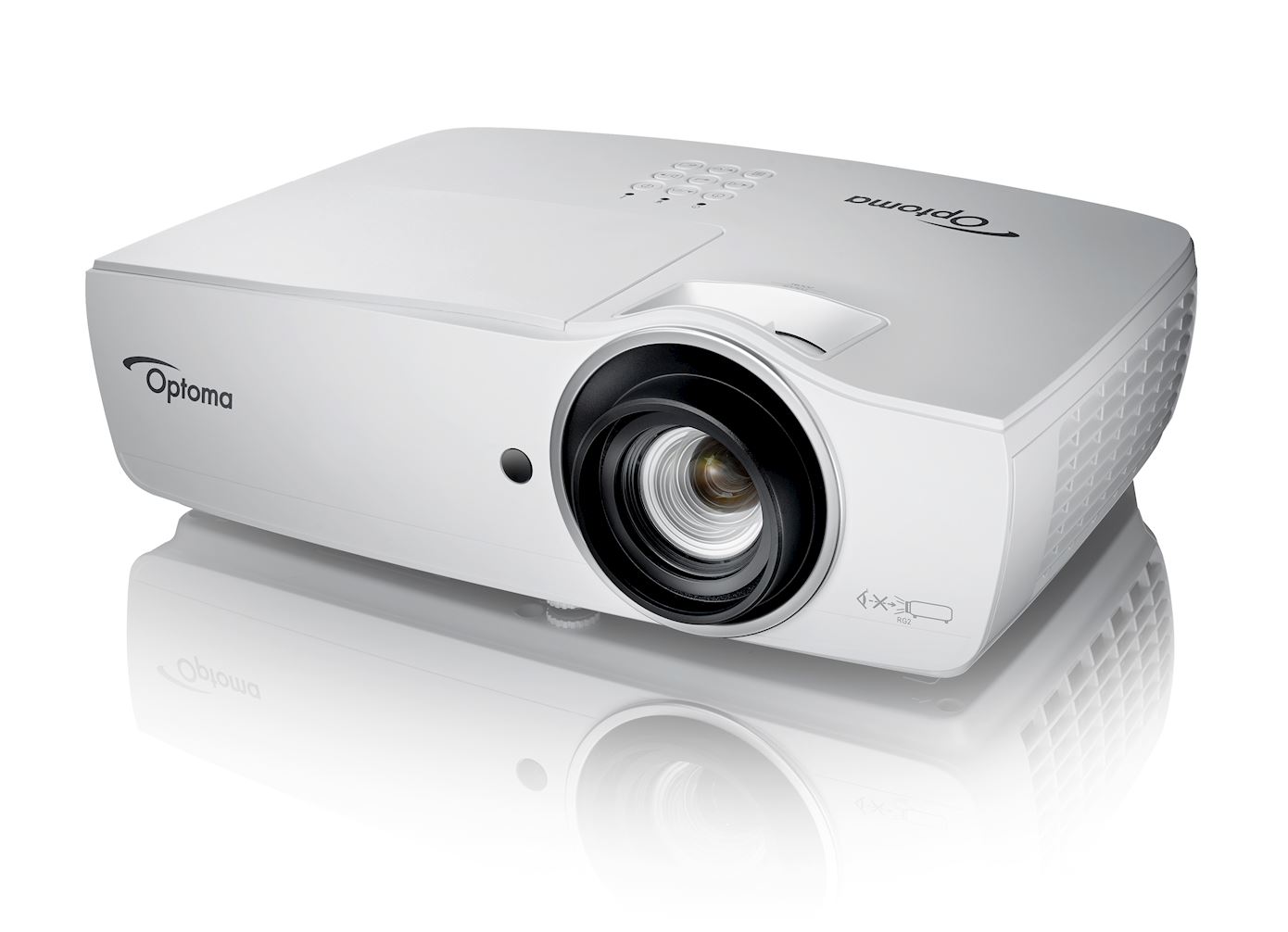

Optoma EH465

1-DLP Projector, 1080p, 4800 Lumens, PC-Less Presentation, 3 year warranty
Part #: 0601-3776    Mfr #: EH465

Optoma EH465

$1,199.00
List price

Overview

Specifications

Display Technology Single 0.65” DMD S600, DC3 chip DLP® Technology by Texas Instruments
Resolution 1080p 1920 x 1080
Brightness 4800 ANSI lumens
Contrast Ratio 20,000:1
Lamp Life2 Eco/Bright/Education cycle 3500/2500/4500 (hrs)
Throw Ratio 3 1.39 - 2.09
Zoom Type Digital 0.8-2.0x

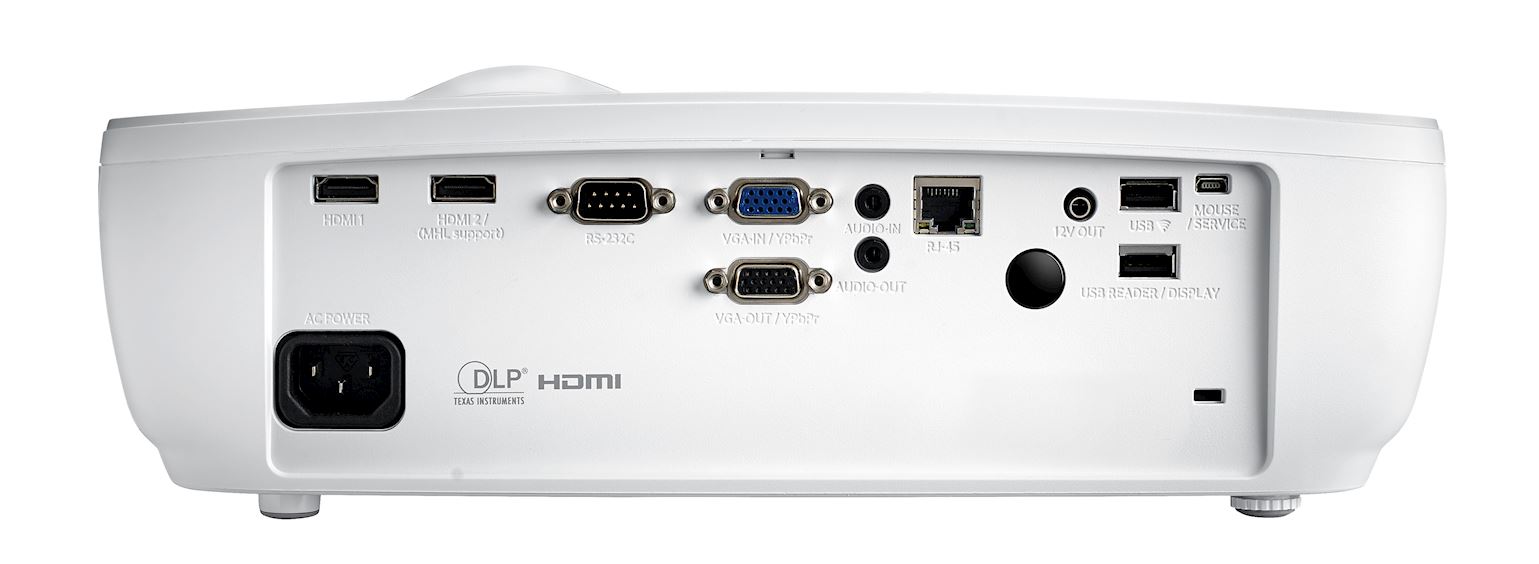

I/O Connectors 2xHDMI (with MHL), VGA-in, VGA-out, audio-in (3.5mm), audio-out (3.5mm), RJ-45, 1x USB (Wi-Fi adapter), 1x USB (USB reader and USB power), USB-B Mini (service), 12V trigger (3.5mm), RS-232C
Audio 10W
Keystone Correction ± 30° vertical / ± 25° horizontal
Weight 6.75 lbs.
Dimensions (W x D x H) 12.20” x 8.66” x 3.93”
Aspect Ratio 16:9 (native), 16:10, 4:3 and LBX compatible
Offset 114.9%±5%
Projection Screen Size 25.9’’ - 324.9’’
Projection Distance 3.93’ - 49.1’ (no zoom)
Projection Lens F=2.42 ~2.97, f=20.70 ~ 31.05mm manual
Uniformity 75%
Maximum Resolution WUXGA (1920x1200)
Computer Compatibility FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
3D Compatibility Side-by-side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-under: 1080p24, 720p50 / 60
Horizontal Scan Rate 25 - 85Hz (120Hz for 3D)
Vertical Scan Rate 15 - 91kHz
Displayable Colors 1.07 billion
Noise Level (Eco mode) 31dB/37dB (ECO/Bright)
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Power Consumption 370W typical (Bright mode), 390W max (Bright mode), 300W typical (Eco+ mode), 320W max (Eco+ mode)
Lamp Type 285W
Operating Conditions Operating temp @ sea level up to 10000 feet = 23F (max); must manually switch to high altitude mode @ 5000 feet & above (using OSD)
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Security Security bar, Kensington lock, password protection
Remote Control Full size remote
Standard Accessories AC power cord, remote control, USB Wi-Fi adapter, carrying case, batteries for remote, multilingual CD-ROM user’s manual, quick start card, and warranty card
Optional Accessories Universal ceiling mount, DLP®Link™ 3D glasses, lamp, remote, WUSB (Wi-Fi adapter replacement)
Optional Wireless Yes
Color Wheel RYGBW
Warranty 3 Years
RoHS Compliant
Projection method Front, rear, ceiling mount, table top
Warranty 3-year Optoma Express Service, 1-year on lamp

Downloads

Warranty

3-year Optoma Express Service, 1-year on lamp
