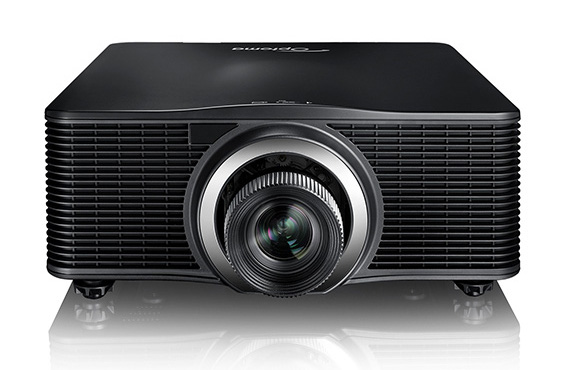

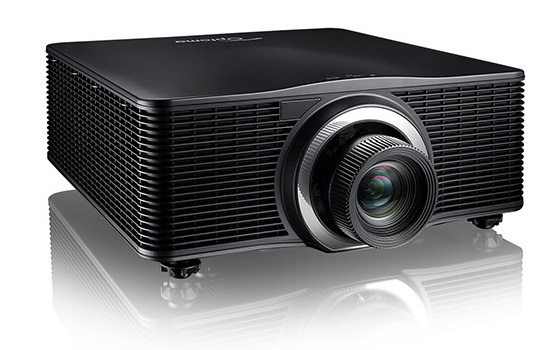

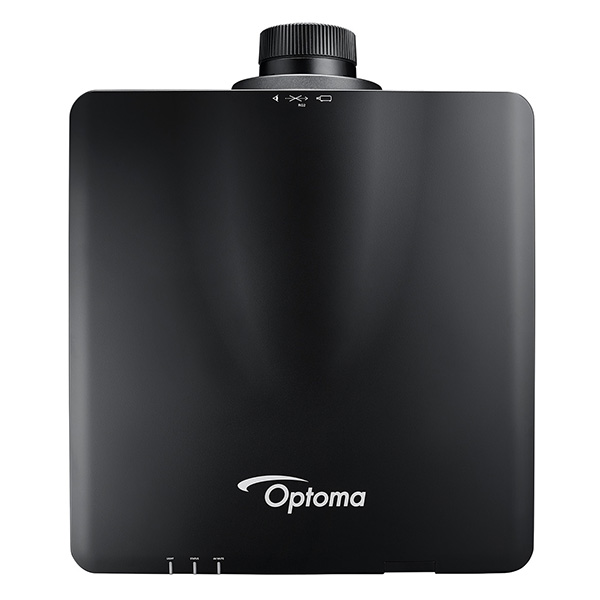

Optoma ZU660

Laser Projector, 1920x1200 WUXGA, 6000 Lumens, No Lens, 3 Year Warranty
Part #: 0601-3789    Mfr #: ZU660

Optoma ZU660

Overview

WUXGA Professional Installation Laser Projector

ZU660

  • Sharp and luminous image with 6,000 lumens and 2,000,000:1 contrast ratio
  • Four corner adjustments provide greater installation versatility
  • Color matching with HSG adjustment
  • Motorized lens shift, zoom and focus
  • Multiple interchangeable optical lens options with 24/7, 360° and portrait mode operation

Spectacular image quality and brightness with low maintenance laser technology

The Optoma ProScene ZU660 is the perfect 6,000 lumens WUXGA projection solution for museums, boardrooms, as well as higher education, house of worship, and smaller entertainment venues. Its low weight, quiet operation and interchangeable lens options make it ideal for professional installations.

Laser phosphor lighting technology eliminates the need for lamp and filter replacements for 20,000 hours of low-cost operation. Advanced color matching with HSG adjustments enables fine-tuning with multiple projector installations.

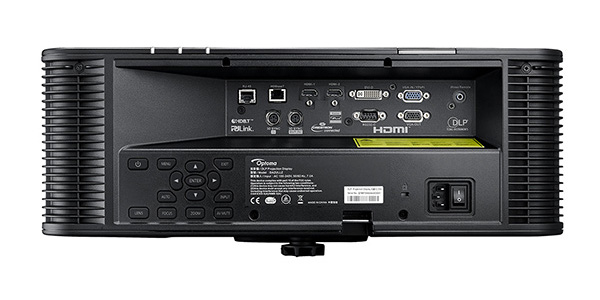

Robust input options include HDMI, DVI-D, and VGA for connectivity to a wide range of devices. HDBaseT enables greater installation flexibility by supporting audio, video and control over a single CAT6 cable up to 328 feet long.

Features

DLP Technology

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. Optoma 3D glasses required.

Quick Resume

This feature allows the projector to be instantly powered on again within 100 seconds of turning it off.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).

AV Mute

When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

24/7 Operation

Optoma projectors are engineered to operate 24 hours a day in standard orientation and perfect for applications that require prolonged periods of use (subject to 24-hour terms and conditions).

Easy Installation – Large Zoom & Vertical Lens Shift

Whether replacing existing projectors or installing a new projector, a large zoom and lens shift greatly simplifies the projector installation.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

WUXGA Resolution

Where detail really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

Image Stacking

Image stacking enables flexible installations for greater redundancy or double the image brightness without significantly increasing the installation cost. An image is displayable without interruption while swapping lamps or servicing one of the projectors or any brightness is achievable using geometry adjustment. Alternatively, images can be realigned to be perfectly square if the alignment is beyond the lens shift range.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10 (native), 16:9, 4:3, auto
Brightness 6000 ANSI lumens, 6500 center lumens
Contrast Ratio 2,000,000:1 (Extreme black enabled) 2000:1 (full on/full off)
Display Technology Single 0.67” WUXGA DMD, DLP Technology by Texas Instruments
Image Size 50” – 300”
Keystone Correction ±20° vertical and horizontal keystone, 4 corner
Light Source Life Up to 20,000 hrs
Lens Options BX-CTA16: 0.36:1, BX-CTA15: 0.75-0.95:1, BX-CAA01: 0.95-1.22:1, BX-CAA06: 1.22-1.52:1, BX-CAA02 1.22-1.53:1, BX-CAA03: 1.52-2.92:1, BX-CTA13: 2.90-5.50:1, BX-CTADOME: Dome projection
Lens Shift Vertical:±50%, Horizontal: ±15% when A16 lens selected, None lens shift
Maximum Resolution WUXGA 1920 x 1200
Native Resolution WUXGA 1920 x 1200
Noise Level 34dB (Eco) / 36dB (normal)
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 650W ±15% Max (Normal), 470W ±15% Max (ECO)
Power Supply AC input 100 – 240V, 50–60 Hz, auto-switching
Projection Distance 2.6’ – 115’ (0.8-35 m)
Projection Method Front, rear, ceiling mount, table top, 360˚ and portrait mode operation capable

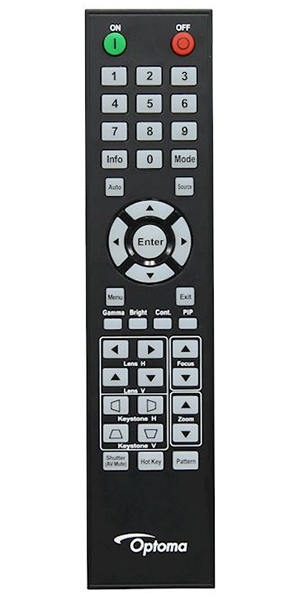

Remote Control Full function wired remote
Throw Ratio 0.36 – 5.50 (dependent on installed lens)
Uniformity 90%
Zoom Type 1.2x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye).
Computer Compatibility WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible
Horizontal Scan Rate 15.375–91.146KHz
Vertical Scan Rate 24–85Hz, 120Hz
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
PHYSICAL SPECIFICATIONS
Dimensions 19.1” x 7.2” x 20” (485 x 185 x 509 mm)
Security Kensington® Lock port, security bar and keypad lock
Weight 37.4 lb (17 kg) without lens
OTHER
What's in the Box? AC power cord, VGA to VGA cable, remote control
Optional Accessories Universal ceiling mount, DLP®Link™ 3D glasses, remote, HDCast Pro-BLACK
Warranty Info 3 years or 20,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector

Accessories

Chief VCM-U mount Ceiling mounts
DLP link 3D glasses DLP link 3D glasses $49.00
Add to Cart
HDCast Pro

Optoma HDCast Pro 1080p HDMI MHL multimedia stick with mirroring on Android, iOS, Windows and Mac OS X

$79.00
Add to Cart
360 dome lens (BX-CTADOME) 360-degree Dome Projection Lens
Add to Cart

Other Lenses

Model BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA02 BX-CAA06 BX-CAA03 BX-CTA13
Price
Add to Cart

Add to Cart

Add to Cart
$999.00
Price

Add to Cart

Add to Cart

Add to Cart
  BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA02 BX-CAA06 BX-CAA03 BX-CTA13
D:W WUXGA

0.36:1

0.75  0.95:1

0.95  1.22:1

1.22  1.53:1

1.22  1.53:1

1.52  2.92:1

2.9  5.5:1

D:W WXGA

N/A

N/A

1.0 – 1.28:1

1.28  1.61:1

N/A

1.6  3.07:1

N/A

f/stop 2.4 2.3 – 2.53 2.3  2.57 2.0  2.3 2.0  2.3 2.3  3.4 2.3  2.74
