Optoma EH505E

DLP Projector, 1920x1200 WUXGA, 5000 Lumens, H&V Shift, No Lens, 3 Year Warranty
Part #: 0601-3798    Mfr #: EH505E

Optoma EH505E

Overview

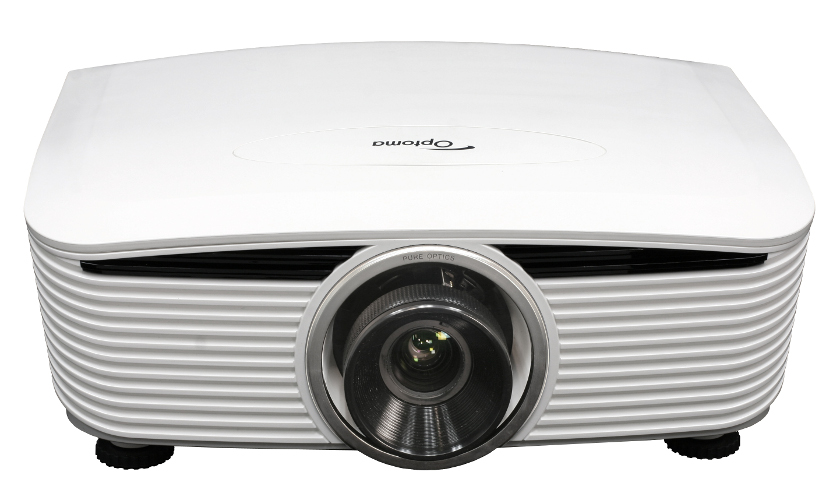

Optoma EH505E

Multimedia Projector

  • 5,000 lumens, WUXGA Resolution
  • Installation flexibility — lens shift, interchangeable lenses, off-axis short throw option
  • Ultimate control – full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Powerful image-blending tools – 3-axis color matching system and 10x lamp-power steps
  • Advanced features – wired remote, Full 3D support and DICOM simulation
Brilliant presentations with maximum installation flexibility

The Optoma ProScene EH505e was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector installation needs. Its powerful bright 5,000-lumen output combined with a remarkable 2,000:1 contrast ratio deliver amazingly bright, color-rich presentations with sharp, clear text and graphics.

The Optoma EH505e features one of the most comprehensive input panels and most advanced feature set in its class to ensure the projector will satisfy your current and future needs: HDMI, display port, and DVI for digital connectivity, two VGA inputs and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, as well as 12-volt trigger for maximum installation convenience.

Features

Amazing Color

Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard, to guarantee accurate reproduction of cinematic color exactly as the director intended. Our projectors can also create saturated colors, great for gaming and animated movies.

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Full Lens Shift

Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

DICOM Simulation Mode

Designed to simulate Digital Imaging and Communications in Medicine, DICOMsim is turned on for viewing greyscale images, perfect for analyzing X-rays and scans during medical training.

Installation Flexibility

Optoma ProScene projectors with multiple lens options provide a variety of motorized zoom, focus, vertical and horizontal lens shift adjustments to ensure you get the desired image size to help meet the seemingly limitless challenges of ProAV installations.

Color Matching System (CMS)

The full HSG color matching system enables hue, saturation and gain adjustments for each primary color to match user preferences. This creates seamless blends every time when combined with accurate measurements.

Brightness Matching

The brightness of a projector varies throughout its life. ProScene projectors provide power adjustments with variable steps between 80-100 percent of the full brightness to correctly match multiple units.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10
Audio NA
Brightness 5,000 ANSI lumens
Compatible Aspect Ratio 16:10 Native, 16:9 and 4:3 Compatible
Contrast Ratio 2,000:1 (full on/full off)
Control Unit RS232, RJ45
Display Technology Single 0.65" DC3 DMD DLP™ Technology by Texas Instruments
Displayable Colors 1.07 billion

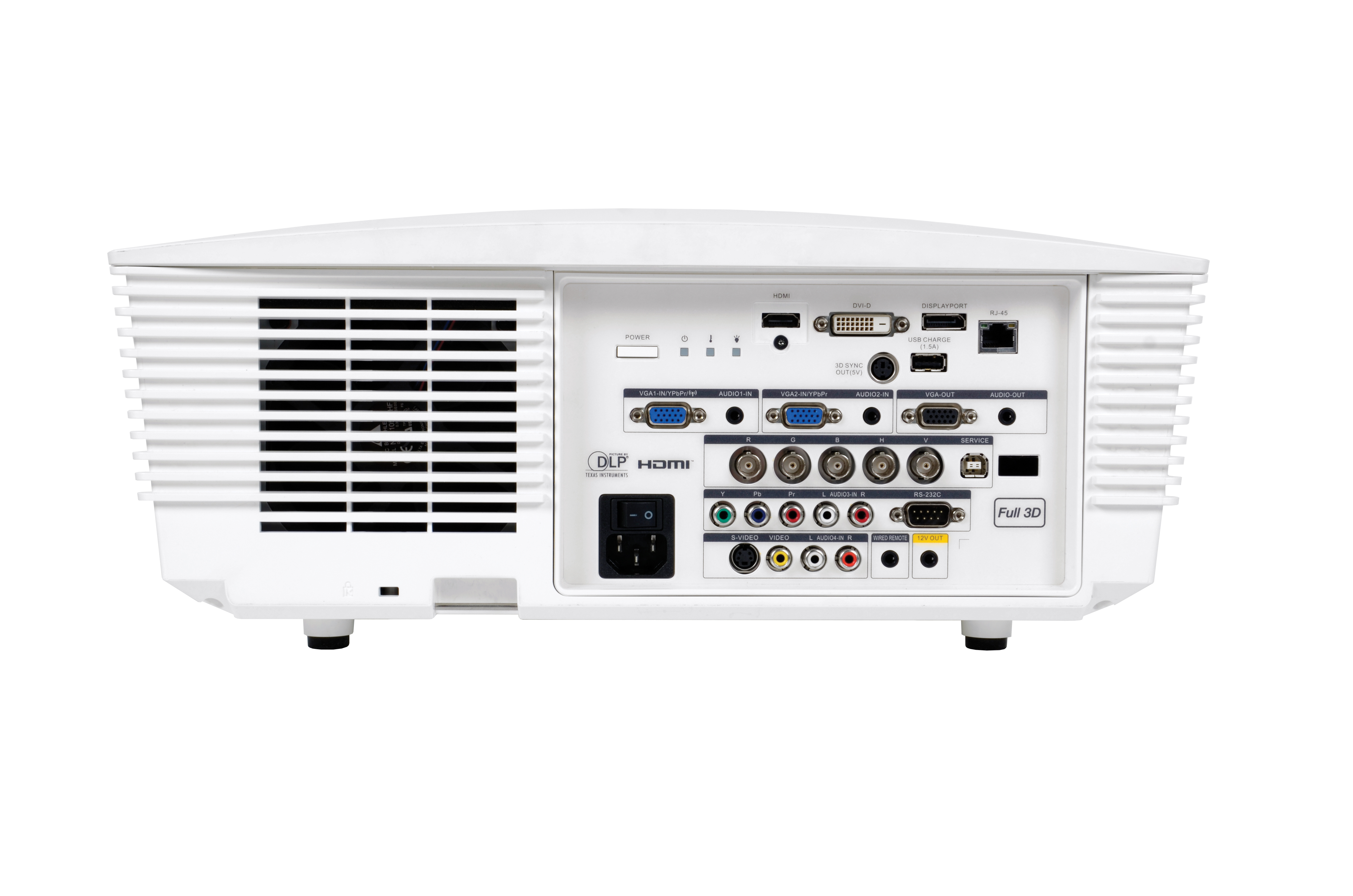

Inputs 1x HDMI (1.4a 3D support), 1x DVI-D, 1x DisplayPort, 1x 5BNC, 2x VGA-In (YPbPr/RGB), 1x Component Video (3 x RCA), 1x S-Video, 1x Composite, 5x Audio In (RCA/3.5mm), USB (mouse/service)
Keystone Correction ±15° Vertical
Light Source Type 370 W
Light Source Life 4,000/3,000 (Eco/Bright)
Lens Options Short: 0.77:1 (Fixed); Semi short: 1.15 – 1.37:1; Standard: 1.54 – 1.93:1; Long: 1.93 – 2.89:1; Extra long: 3.15 – 5.30:1
Lens Shift Vertical: +55% to -15%; Horizontal: ±5%
Maximum Resolution WUXGA (1920 x 1200)
Native Resolution WUXGA (1920 x 1200)
Noise Level 34 dB
On-Screen Display 25 languages: Arabic, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Chinese, Spanish, Swedish, Turkish, and more.
Operating Temperature 41–113°F (545°C), 85% max humidity
Outputs VGA, audio, 3D sync out, USB power, 12V trigger
Portrait Mode Not supported
Power Consumption 480 W Max (Bright mode), 330 W (STD mode),
Power Supply AC input 100240 V, 5060 Hz, auto-switching
Projection Distance Dependent upon lens
Projection Lens 5 lens options (no lens supplied as standard)
Projection Method Front, rear, ceiling mount, tabletop
Projection Screen Size Dependent upon lens

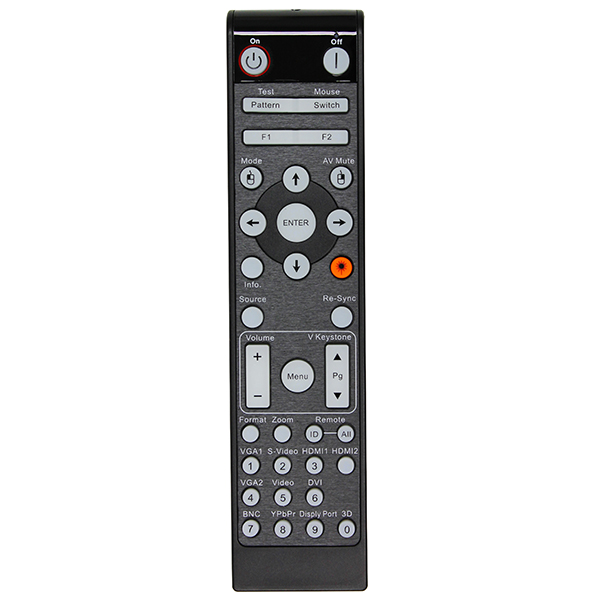

Remote Control Infrared remote control, multiple IR code sets for controlling multiple units, wired connection sup
Throw Ratio 0.77 ~ 5.30:1 (lens dependent)
Uniformity 85%
Zoom Type Dependent upon lens
COMPATIBILITY SPECIFICATIONS
3D Compatibility Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer Compatibility WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Horizontal Scan Rate 15.375 – 91.146 KHz
Optional Wireless Yes
RoHS RoHS and WEEE
Vertical Scan Rate 24 – 85 Hz, 120 Hz, 144 Hz
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 16.9" x 7.1" x 13.4" (430 x 181 x 340 mm)
Security Security bar, Kensington lock, password protection, keypad lock
Weight 18.6 lbs (8.4 kg) w/o lens
OTHER
Optional Accessories Five optional lenses, ceiling mount, HDMI cable, Optoma screen, 3D emitter, DLP® Link™ 3D glasses, wireless HDMI system, single Cat6 HDBaseT kit, HDCasT Pro
Standard Accessories AC Power Cord, VGA Cable, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start guide, and warranty card
UPC 796435441951
Warranty Info 3-year parts and labor limited warranty on the projector, 1-year lamp warranty or 1000 hours (whichever comes first)
