Optoma ZU500T-B

DLP Laser Projector, 1920x1200 WUXGA, 5000 Lumens, HDBaseT, H&V Shift, 4 Corner Correction, D:W 1.2-1.92:1, Black, 3 Year Warranty
Item #0601-3802 Model #ZU500TB

Overview

Professional Installation Laser Projector

ZU500T-B

  • Bright 5,000 lumens and WUXGA resolution
  • Four corner correction for simple stacking
  • 360° and portrait mode operation
  • Up to 20,000 hour light source life
  • Integrated HDBaseT support
  • Horizontal & vertical lens shift, keystone correction

Stunning projection with flexible installation

Experience bright 5,000 lumen WUXGA projection with the lamp-less Optoma ProScene ZU500T. Laser phosphor technology eliminates the need for lamp and filter replacements for 20,000 hours of low-cost and virtually maintenance-free operation.

Its low weight and quiet operation make it perfect for boardrooms, higher education, houses of worship, and smaller entertainment venues. Horizontal and vertical lens shift, four corner correction, and 360° and portrait mode operation enable flexible installations.

A variety of inputs, including HDBaseT and HDMI, enable simple connections to a wide variety of video sources. HDBaseT connectivity facilitates easy installations, enabling long cable runs of up to 328 feet for audio, video, and control from a single CAT6 cable.

Features

DLP Technology

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).

Full Lens Shift

Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

WUXGA Resolution

Where details really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

Sleep Timer

The sleep timer turns off the projector after a set period of time.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10 native, 16:9 and 4:3 compatible
Audio 2 x 10W speakers (stereo)
Brightness 5,000 ANSI lumens
Compatible Aspect Ratio 16:10 (native), 16:9, 4:3, Auto, 16:10 Native, 16:9 & 4:3 compatible

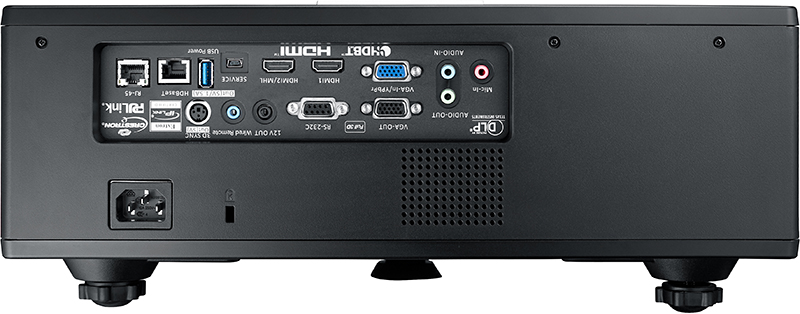

Connections 2 x HDMI, VGA, HDBaseT, mic in, audio in, VGA out, audio out, 3D sync, 12V trigger, RS-232C, wired remote, USB type A, mini USB, IR receiver, RJ45
Contrast Ratio 0:0
Display Technology Single DMD, 0.67" WUXGA DMD, DC3 DLP™ Technology by Texas Instruments
Displayable Colors 1.07 Billion
Keystone Correction ±30° Vertical and Horizontal
Light Source Type Laser Phosphor
Light Source Life Up to 20,000 hrs
Lens Shift Vertical +20% -10%; Horizontal ±10%
Maximum Resolution WUXGA 1920 x 1200
Native Resolution WUXGA 1920 x 1200
Noise Level 28dB (Eco)
Operating Temperature Operating temperature 0 ft to 10,000 ft at 540°C (41104°F)
Portrait Mode Yes
Power Consumption 380W ±15% max (Bright), 260W ±15% max (ECO)
Power Consumption 380W ±15% max (Bright), 260W ±15% max (ECO)
Power Supply AC input 110–240V, 50–60 Hz
Projection Distance 4 ft (1.24 m) – 27.1 ft (8.27 m)
Projection Lens 1.6x zoom, f=2.33.01 mm; f=17.6331.36 mm
Projection Method Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
Projection Screen Size 30”300”

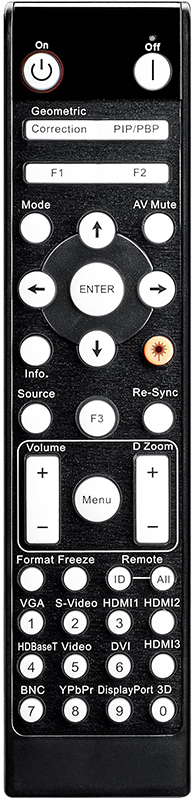

Remote Control IR and wired remote
Throw Ratio 1.2 – 1.92
Uniformity 85%
Zoom Type 1.6 Manual
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. Required 3D glasses are sold separately.
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85 Hz (120 Hz for 3D)
Video Compatibility SDTV, HDTV
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 15.2” x 15.9” x 6.2” (405 mm x 387 mm x 159 mm with elevators)
Security Kensington™ lock port
Weight 23.6 lbs
OTHER
Optional Accessories Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses
Standard Accessories AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable
UPC 796435442071
Warranty Info 3 years or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector

Accessories

Ceiling mounts Ceiling mounts
DLP link 3D glasses DLP link 3D glasses
HDCast Pro

Optoma HDCast Pro 1080p HDMI MHL multimedia stick with mirroring on Android, iOS, Windows and Mac OS X
