Optoma ZH500T-W
Overview
Professional Installation Laser Projector
ZH500T-W
- Bright 5,000 lumens and 1080p resolution
- Four corner correction for simple stacking
- 360° and portrait mode operation
- Up to 20,000 hour light source life
- Integrated HDBaseT support
- Horizontal & vertical lens shift, keystone correction
Stunning projection with flexible installation
Experience bright 5,000 lumen 1080p projection with the lamp-less Optoma ProScene ZH500T. Laser phosphor technology eliminates the need for lamp and filter replacements for 20,000 hours of low-cost and virtually maintenance-free operation.
Its low weight and quiet operation make it perfect for boardrooms, higher education, houses of worship, and smaller entertainment venues. Horizontal and vertical lens shift, four corner correction, and 360° and portrait mode operation enable flexible installations.
A variety of inputs, including HDBaseT and HDMI, enable simple connections to a wide variety of video sources. HDBaseT connectivity facilitates easy installations, enabling long cable runs of up to 328 feet for audio, video, and control from a single CAT6 cable.
Features
DLP Technology
DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
Full HD 1080p
1080p (1920×1080) resolution renders sharp and detailed images from HD content without downscaling or compression, which is perfect for movies, TV shows and gaming.
HDBaseT
Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).
Four Corner Adjustment
Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.
Sleep Timer
The sleep timer turns off the projector after a set period of time.
Direct Power On
Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.
RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.
Crestron Roomview® – NETWORK CONTROL Roomview®
Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.
- Manage up to 250 projectors at the same time (via master PC).
- Control and alter the projector settings using a simple web browser page, including OSD menu control.
- Set up email alerts for warning messages.
- Ideal for large installations in both educational and business environments.
Specifications
TECHNICAL SPECIFICATIONS | |
---|---|
360 Operation | Yes |
Aspect Ratio | 16:9 (native), 4:3 (compatible) |
Audio | 2 x 10W speakers (stereo) |
Brightness | 5,000 ANSI lumens |
Compatible Aspect Ratio | 16:9 (native) and 4:3 (compatible) |

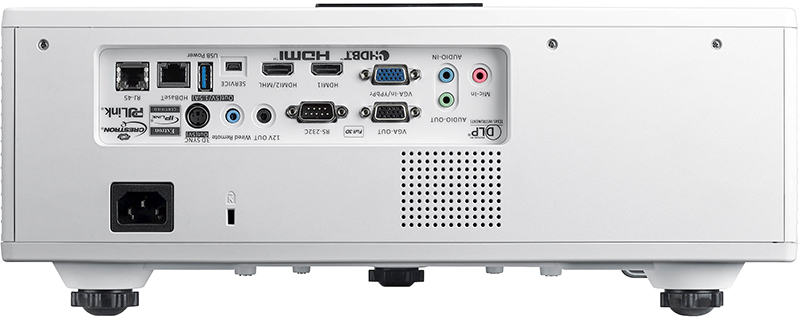

Connections | 2 x HDMI, VGA, HDBaseT, mic in, audio in, VGA out, audio out, 3D sync, 12V trigger, RS-232C, wired remote, USB type A, mini USB, IR receiver, RJ45 |
Contrast Ratio | 0:0 |
Display Technology | Single DMD, 0.65” 1080P DMD, DC3 DLP® Technology by Texas Instruments™ |
Displayable Colors | 1.07 Billion |
Inputs | |
Keystone Correction | ±30° Vertical and Horizontal |
Light Source Type | Laser Phosphor |
Light Source Life | Up to 20,000 hours |
Lens Shift | Vertical +20% -10%; Horizontal ±10% |
Maximum Resolution | WUXGA: 1920 × 1200 |
Native Resolution | HD: 1920 × 1080 |
Noise Level | 28dB (Eco) |
Operating Temperature | Operating temperature at sea level up to 10,000 feet = 104° F (max). Must manually switch to high altitude mode from 5,000 feet and above to maintain optimal functionality |
Portrait Mode | Yes |
Power Consumption | 380W ±15% max (Bright), 260W ±15% max (ECO) |
Power Supply | AC input 110–240V, 50–60 Hz |
Projection Distance | 4.2 ft/1.28m – 27.8 ft/8.5m |
Projection Lens | F/2.3~3.01; 17.63–31.36mm |
Projection Method | Front, rear, ceiling count, tabletop |
Projection Screen Size | 30”–300” |

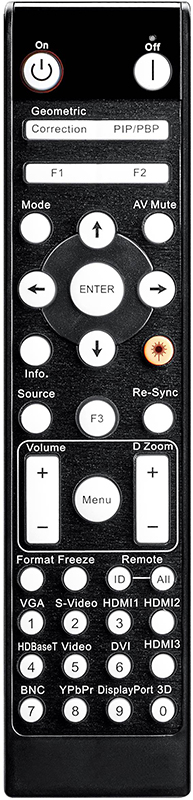

Remote Control | IR and wired remote |
Throw Ratio | 1.28 – 8.5 |
Uniformity | 85% |
Zoom Type | 1.6 Manual |
COMPATIBILITY SPECIFICATIONS | |
---|---|
Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac |
Horizontal Scan Rate | 15.375 – 91.146 KHz |
Vertical Scan Rate | 24 – 85 Hz (120 Hz for 3D) |
Video Compatibility | SDTV / HDTV |
PHYSICAL SPECIFICATIONS | |
---|---|
Dimensions (W x H x D) | 15.2” x 15.9” x 6.2” (405 mm x 387 mm x 159 mm with elevators) |
Security | Kensington™ lock port |
Weight | 23.31 lbs |
OTHER | |
---|---|
Optional Accessories | Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses |
Standard Accessories | AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable |
UPC | 796435442088 |
Warranty Info | 3 years or 20,000 hours light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector |
Accessories
Ceiling mounts | ||
DLP link 3D glasses |
|
|
Optoma HDCast Pro 1080p HDMI MHL multimedia stick with mirroring on Android, iOS, Windows and Mac OS X |
|
