Optoma ZU500TST-W
Overview
Professional Installation Laser Projector
ZU500TST-W
- Bright 5,000 lumens and WUXGA resolution
- Four corner correction for simple stacking
- 360° and portrait mode operation
- Up to 20,000 hour light source life
- Short throw projection lens
- Horizontal & vertical lens shift, keystone correction
Stunning projection with flexible installation
Experience bright 5,000 lumen WUXGA projection with the short throw and lamp-less Optoma ProScene ZU500TST. Laser phosphor technology eliminates the need for lamp and filter replacements for 20,000 hours of low-cost and virtually maintenance-free operation.
Its low weight and quiet operation make it perfect for boardrooms, higher education, houses of worship and smaller entertainment venues. Horizontal and vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.
A variety of inputs, including HDBaseT and HDMI, enable simple connections to a wide variety of video sources. HDBaseT connectivity facilitates easy installations, enabling long cable runs of up to 328 feet for audio, video and control from a single CAT6 cable.
Features
DLP Technology
DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
HDBaseT
Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).
Full Lens Shift
Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.
WUXGA Resolution
Where details really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p, and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.
Sleep Timer
The sleep timer turns off the projector after a set period of time.
Direct Power On
Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.
RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.
Four Corner Adjustment
Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.
Crestron Roomview® – NETWORK CONTROL Roomview®
Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.
- Manage up to 250 projectors at the same time (via master PC).
- Control and alter the projector settings using a simple web browser page, including OSD menu control.
- Set up email alerts for warning messages.
- Ideal for large installations in both educational and business environments.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| 360 Operation | Yes |
| Aspect Ratio | 16:10 native, 16:9 and 4:3 compatible |
| Audio | 2 x 10W speakers (stereo) |
| Brightness | 5,000 ANSI lumens |
| Compatible Aspect Ratio | 16:10 (native), 16:9, 4:3, Auto, 16:10 Native, 16:9 & 4:3 compatible |

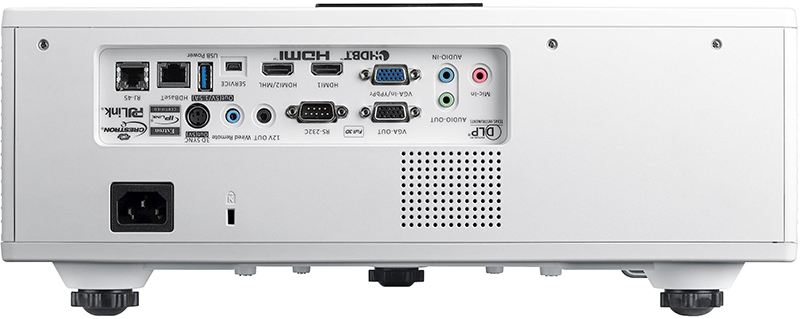

| Connections | 2x HDMI, VGA, HDBaseT, mic in, audio in, VGA out, audio out, 3D sync, 12V trigger, RS-232C, wired remote, USB type A, mini USB, IR receiver, RJ45 |
| Contrast Ratio | 0:0 |
| Display Technology | Single DMD, 0.67" WUXGA DMD, DC3 DLP™ Technology by Texas Instruments |
| Displayable Colors | 1.07 Billion |
| Keystone Correction | ±30° Vertical and Horizontal |
| Light Source Type | Laser Phosphor |
| Light Source Life | Up to 20,000 hrs |
| Lens Shift | Vertical 100%–113%; Horizontal ±5% |
| Maximum Resolution | WUXGA (1920 x 1200) |
| Native Resolution | WUXGA 1920 x 1200 |
| Noise Level | 28dB (Eco) |
| Operating Temperature | Operating temperature 0 ft to 10,000 ft at 5-40°C (41-104°F) |
| Outputs | 1 x VGA out (VGA pass-through through to monitor), 1 x Audio out (3.5mm), 1 x 3D Sync, 1 x 12V trigger |
| Portrait Mode | Yes |
| Power Consumption | 480W ±15% max (Bright), 320W ±15% max (ECO) |
| Power Supply | AC input 110–240 V, 50–60 Hz |
| Projection Distance | 1.64ft/0.5m – 17.01ft/5.2m |
| Projection Lens | 1.6x zoom, f=2.3–3.01 mm; f=17.63–31.36 mm |
| Projection Method | Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable |
| Projection Screen Size | 30”–300” |

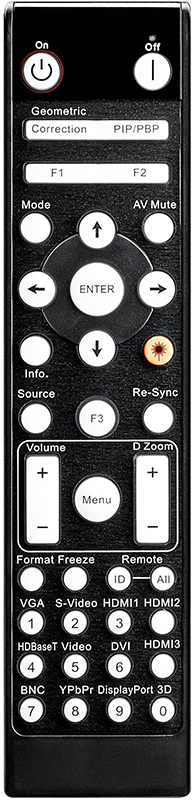

| Remote Control | IR and wired remote |
| Throw Ratio | 0.79 |
| Uniformity | 85% |
| Zoom Type | F/2.49; f=11.66mm, Fixed Zoom |
| COMPATIBILITY SPECIFICATIONS | |
|---|---|
| 3D Compatibility | Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately. |
| Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac |
| Horizontal Scan Rate | 15.375 – 91.146 KHz |
| Vertical Scan Rate | 24 – 85 Hz (120 Hz for 3D) |
| Video Compatibility | SDTV, HDTV |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (W x H x D) | 15.2” x 15.9” x 6.2” (405 mm x 387 mm x 159 mm with elevators) |
| Security | Kensington™ lock port |
| Weight | 23.6 lbs |
| OTHER | |
|---|---|
| Optional Accessories | Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses |
| Standard Accessories | AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable |
| UPC | 796435442132 |
| Warranty Info | 3 years or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector |
Accessories
 |
Ceiling mounts | |
 |
DLP link 3D glasses |
|
 |
Optoma HDCast Pro 1080p HDMI MHL multimedia stick with mirroring on Android, iOS, Windows and Mac OS X |
|
