Optoma W512

DLP Projector, 1280x800 WXGA, 5500 Lumens, PC-Less Presentation from USB stick, Geometric Correction, Laser Pointer Remote, 3 year warranty
Part #: 0601-3815    Mfr #: W512

Optoma W512

$999.00
List price

Overview

Professional Installation WXGA Projector

W512

  • Bright WXGA projection featuring 5,500 lumens and 15,000:1 contrast ratio
  • PC-free USB image viewer and office document reader
  • Wireless presentations and images with HDCast Pro (USB Wi-Fi adapter included)
  • USB display screen mirroring with iOS and Android devices
  • LAN display via Ethernet with Windows and Mac OS X
  • Vertical lens shift, keystone correction and full RS-232C control

Bright projection with installation flexibility and control

Envision stunning and bright 5,500 lumen, WXGA images with the Optoma W512. Its 15,000:1 contrast ratio, 1.6x zoom, vertical lens shift, keystone correction and full RS-232C control provide installation flexibility ideal for large classrooms, lecture halls, museums and houses of worship.

A PC-free image viewer and document reader display office documents, PDFs and images from USB storage devices. HDCast Pro connectivity provides wireless screen mirroring with Android, Mac OS and Windows devices.

LAN display supports up to 4 simultaneous computers while USB display mirrors Android and iOS devices. Robust input options include HDMI, VGA and analog for easy connectivity to current and legacy video sources.

Features

DLP Technology

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

HDCast Pro – Wireless Display and Document Casting

Screen mirror Android, Windows and Mac devices wirelessly. Cast images and documents from Android, iOS, Windows and Mac devices or use USB Display to screen mirror Android and iOS devices.

PC-free USB Image and Document Viewer

Integrated PC-free image and document viewer provides direct viewing of office documents, PDFs, images and presentations from any USB storage device.

Vertical Lens Shift

Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

+12v Trigger

Easily trigger a motorized screen to lower or raise when the projector is powered on or off.

AMX Compatibility

Easily communicate with AMX control systems for simple integration.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10 (native), 16:9, 4:3, LBX and auto compatible
Audio 2 x 10W speakers (stereo)
Brightness 5,500 ANSI lumens
Color Wheel 6 segment RYGCWB
Contrast Ratio 15,000:1
Display Technology Single Texas Instruments 0.65″ WXGA DMD
Displayable Colors 1.07 Billion
Geometry Four corner adjustment
Image Size 25.66” – 301.15”

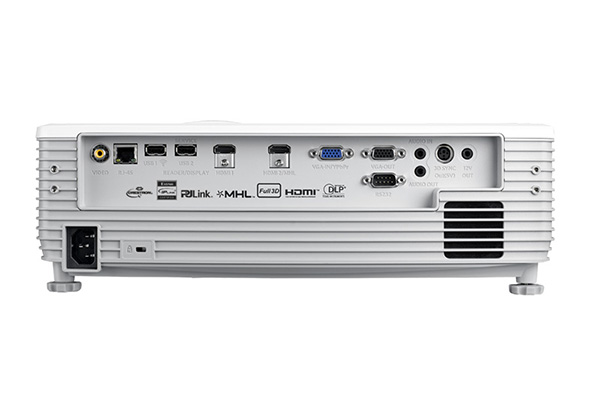

Inputs 2 x HDMI, 1 x VGA, 1 x composite, 1 x S-Video, 1 x audio (3.5mm)
Keystone Correction ±20° Vertical, ±20° Horizontal
Light Source Life 7,000/6,000/5,000/3,000 (Eco+/Dynamic/ECO/Bright)
Lens Shift Vertical: +16%
Light Source Lamp (330W)
Maximum Resolution WUXGA (1920 x 1200)
Native Resolution WXGA (1280 x 800)
Noise Level 30dB (ECO)
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Outputs 1 x VGA, 1 x USB (Wi-Fi adapter), 1 x USB (USB display, service), audio out (3.5mm)
Power Consumption 405W typical (Bright), 445W max (Bright), 315W typical (Eco), 347W max (Eco)
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Projection Distance 2.1’ – 51.5’ (without zoom)
Projection Lens F=2.5-3.25; F=20.91-32.62mm
Projection Method Front, rear, ceiling mount, table top

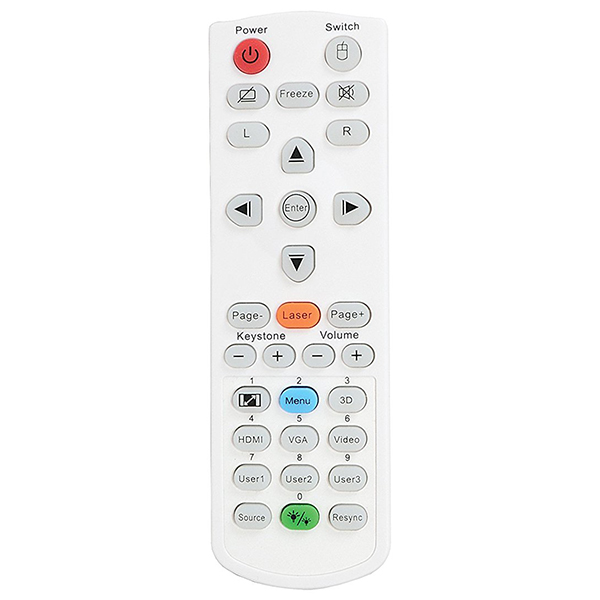

Remote Control Full size remote with laser
Throw Ratio 1.48 – 2.35
Uniformity 75%
Zoom Type 1.6x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye).
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85Hz (120Hz for 3D)
PHYSICAL SPECIFICATIONS
Dimensions 14.17” x 11.61” x 5.34”
Security Kensington® lock port
Weight 10.2 lbs (4.6 kg)
OTHER
What's in the Box? AC power cable, remote control, batteries, USB Wi-Fi adapter
Optional Accessories Lamp, ceiling mount, remote and Wi-Fi adapter
UPC 796435442392
Warranty Info 3-year Optoma Express advance exchange warranty, 1-year on lamp
SPECIFICATIONS
Video Input PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
