Optoma ZU610T-B

DLP Laser Proj WUXGA, 6000L, Black
Part #: 0601-3825    Mfr #: ZU610TB

Optoma ZU610T-B

Overview

WUXGA Professional Installation Laser Projector

ZU610T-B

  • Bright 6,000 ANSI lumens and WUXGA resolution
  • Light source life up to 20,000 hrs with IP5X certification
  • Four corner correction for basic stacking
  • 360° and portrait mode operation
  • Horizontal and vertical lens shift with keystone
  • Integrated HDBaseT
  • DuraCore laser technology for superior color

Bright, vivid and reliable with incredible light source life

Project vivid 6,000 lumen, WUXGA images with the Optoma ProScene ZU610T laser projector. Its advanced optical components, DuraCore laser light source and IP5X-certified optical engine provide 20,000 hours of light source life with minimal maintenance — perfect for boardrooms, lecture halls and entertainment venues.

Low weight, compact size, horizontal and vertical lens shift combine to provide installation flexibility in any circumstance. A fixed lens with unique 1.2–2.13:1 throw ratio and 1.8x digital zoom cover a large range of projection distances without costly interchangeable lenses.

Robust inputs include HDMI, VGA and S-Video for connectivity to a wide range of digital and legacy devices. Built-in HDBaseT connectivity enables greater flexibility by supporting audio, video and control over a single CAT6 cable up to 328-feet long.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Full Lens Shift

Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100 m).

WUXGA Resolution

Where detail really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. Optoma 3D glasses required.

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage, and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10
Audio 10W speaker
Brightness 6,000 ANSI lumens
Compatible Aspect Ratio 16:10 (native), 16:9, 4:3, Auto
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display Technology Texas Instruments™ 0.67” WUXGA DC3 DMD X1
Displayable Colors 1.07 billion

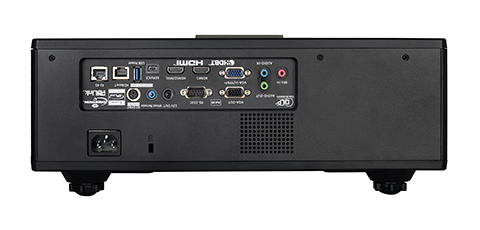

Inputs 3x HDMI 1.4 (HDMI 2 & 3 support MHL), 1x HDBaseT, 1x VGA, 1x S-video, 1x audio in, 1x Mic in 2x USB-A (power), 1x Mini USB (service), 1x 3D sync port
Keystone Correction ±30° vertical and horizontal
Light Source Type Laser phosphor
Light Source Life Up to 20,000 hrs
Lens Shift ±10% horizontal and +20% vertical
Maximum Resolution WUXGA (1920 × 1200)
Native Resolution WUXGA (1920 x 1200)
Noise Level 29dB (Eco)
Operating Temperature 41–104°F (540°C), 85% max humidity
Outputs 1x VGA out, 1x audio out, 1x 12v trigger
Portrait Mode Yes
Power Consumption 480 W ± 15% (Full), 320 W ± 15% (Eco)
Power Supply AC input 90264 V, 5060 Hz, with PFC input
Projection Distance 4.52’ – 26.24’
Projection Lens 1.8x zoom
Projection Method Front, rear, ceiling mount, tabletop
Projection Screen Size 30″ – 300″
Remote Control IR and wired remote
Throw Ratio 1.22.13:1
Uniformity 85%
Zoom Type 1.8x manual
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac
Horizontal Scan Rate 15.375 – 91.146 KHz
RoHS RoHS and WEEE
Vertical Scan Rate 24 – 85 Hz (120 Hz for 3D)
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 15.9” x 6.3” x 15.2”
Security Kensington™ lock port
Weight 24.3 lbs
OTHER
Optional Accessories Mount, HDCast Pro, HDBaseT transmitter, 3D glasses
Standard Accessories AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable
UPC 796435443122
Warranty Info 3 years or 20,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector
