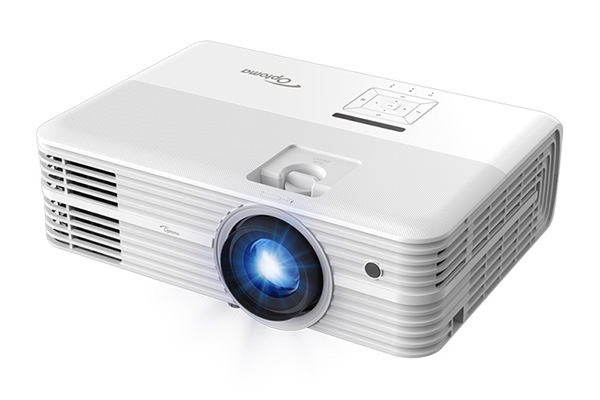

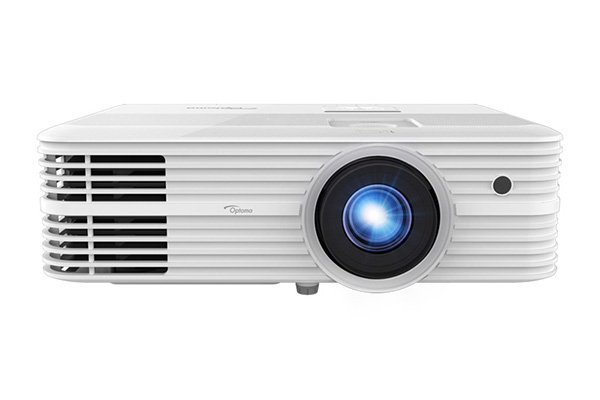

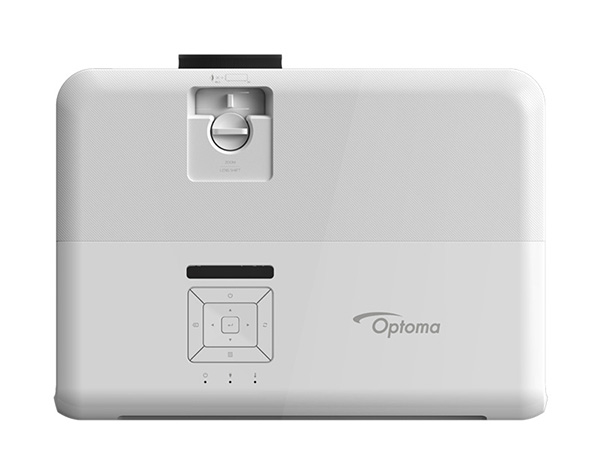

Optoma 4K550

DLP Projector, 4K UHD, 5000 Lumens, D:W 1.39-2.22, Vertical Lens Shift, 3 year warranty
Part #: 0601-3827    Mfr #: 4K550

Optoma 4K550

Overview

4K550

  • Incredible 4K UHD (3840 x 2160) resolution with HDR10 and REC.2020 compatibility
  • 5,000 lumens and 10,000:1 contrast ratio
  • Bright and compact for corporate environments
  • Vertical lens shift with 1.6x zoom
  • 3D ready with DLP Link compatibility
  • Extensive I/O with HDMI, 12V trigger, RS-232C and LAN control

Spectacular detail and quality for graphics, text and video

See vivid images with the 4K UHD, 5,000 lumen Optoma ProScene 4K550 projector for professional installations. Its 10,000:1 contrast ratio and HDR compatibility enable razor sharp text and stunning images, making it ideal for corporate meeting spaces and house of worship environments.

A Texas Instruments DLP chipset with XPR technology renders beautiful 4K UHD images. The high-performance DLP chipset displays 8.3-million distinct simultaneous pixels on screen and easily projects images up to 300 inches with incredible detail.

Vertical lens shift, 1.6x optical zoom and 12V trigger provide installation flexibility. RS-232C and LAN connectivity enable simple integration and control via industry standards, including Crestron, IP Link, AMX and PJ-Link.

Features

DLP Technology

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

4K UHD

4K UHD (3840 x 2160) resolution delivers extremely sharp images with 8.3-million pixels onscreen for unrivaled detail and clarity.

HDR

High dynamic range (HDR) technology delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film

DCI-P3

Color the way it is meant to be seen – rich, colorful and cinematic pictures and games via DCI-P3 wide color gamut coverage.

BT.2020

HDR signals are mapped using REC.2020 tone mapping and provides coverage for REC.709, DCI-P3 and a wide coverage color gamut.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. Optoma 3D glasses required.

USB Power

Power and charge your USB devices with the USB power port. The port delivers up to 1-amp and is ideal for some HDMI streaming sticks.

AMX Compatibility

Easily communicate with AMX control systems for simple integration.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

PJ-Link Compatibility

PJ-Link compatibility enables the projector to power on, off and change basic functions using the PJ-Link port.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:9 (native), 4:3, LBX and auto compatible
Audio 2 x 5 Watt Speakers, Loop through
Brightness 5,000 ANSI lumens
Color Wheel 6 segment RYGCWB

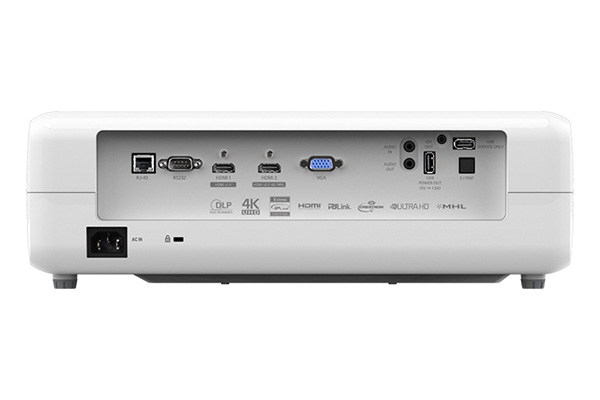

Connections 1 x HDMI (2.0 w/ HDCP 2.2, MHL 2.1), 1 x HDMI (1.4a), 1 x VGA, 1 x audio (3.5 mm), 1 x USB (power / 1.5A), 1 x USB (service), 1 x audio out (3.5 mm), 1 x S/PDIF (optical)
Contrast Ratio 10,000:1
Display Technology Texas Instruments 0.66” 4K UHD DMD
Displayable Colors 1.07 billion
Image Size 26.45” – 302.2”
Light Source Type 330W
Light Source Life Up to 5,000/4,000/3,000 (Dynamic/ECO/Bright)
Lens Shift Vertical: +15%
Maximum Resolution 4K (4096 x 2160)
Native Resolution 4K UHD (3840 x 2160)
Noise Level 32dB (Eco)
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 419W typical (Bright), 461W max (Bright), 331W typical (Eco), 364W max (Eco)
Power Supply AC input 100 – 240V, 50 – 60Hz, auto-switching
Projection Distance 4.3’ – 30.5’
Projection Lens F/2.5 – 3.26; f=20.91 – 32.62 mm
Remote Control Full size remote with laser
Throw Ratio 1.39 – 2.22
Uniformity 75%
Zoom Type 1.6x optical (manual)
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports 120Hz frame sequential (1920 x 1080 @ 120 Hz)
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, UHD
Horizontal Scan Rate 31 to 135 KHz
Vertical Scan Rate 24 Hz to 120 Hz
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K (3840×2160)
PHYSICAL SPECIFICATIONS
Dimensions 15.43” x 5.07” x 11.08”
Security Kensington® lock port
Weight 12.79 lbs
OTHER
What's in the Box? AC power cable, remote control, batteries
Optional Accessories Remote, lamp, mount, 3D glasses
UPC 796435442293
Warranty Info 3-year Optoma Express advance exchange warranty, 1 year on lamp
