Optoma W318ST

DLP Projector, 1280x800 WXGA, 3500 Lumens, D:W 0.52:1, 1 year warranty
Item #0601-3828 Model #W318ST

Overview

Optoma W318ST

WXGA Short Throw Projector for Small Spaces

  • Bright 3,500 ANSI lumens and WXGA resolution
  • Up to 10,000 hour lamp life
  • Short throw 0.52:1 throw ratio
  • Extensive connectivity with HDMI, VGA and composite
Bright projection with remarkable color accuracy

Enhance small spaces with 3,500 lumens and WXGA projection using the Optoma W318ST. Its short throw ratio, brightness and 20,000:1 contrast ratio make it ideal for simulators, education, small conference rooms and other space-constrained environments.

The 0.52:1 short throw ratio projects large, 80-inch images from several feet away. Full 3D support enhances realism for stunning, life-like immersion.

Robust inputs include HDMI, VGA and composite for connectivity to a wide range of digital and legacy devices. A lamp life up to 10,000 hours enables many years of use with minimal maintenance.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.

Short Throw Projection

Project images in limited space environments with short-throw projection. The short-throw lens requires short distances to project large images.

Amazing Color

Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended. Our projectors can also create saturated colors, great for gaming and animated movies.

HDMI Link

HDMI Link lets you turn on and off two or more HDMI-CEC capable devices using a single remote control.

MHL Connectivity

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos and share photos on the big screen.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10 (native), 16:9, 4:3, LBX and auto compatible
Audio 10 W speaker
Brightness 3,500 ANSI lumens
Color Wheel RYGCWB

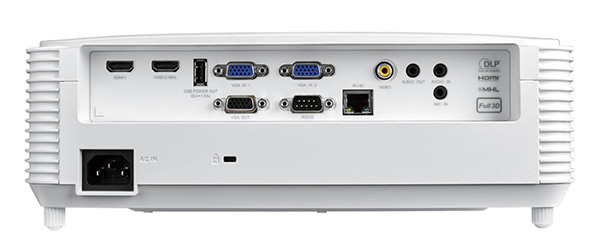

Connections 1x HDMI, 1x HDMI(MHL), 2x VGA, 1x VGA out, 1x composite, 1x USB, 1x audio in, 1x audio out, 1x Mic in, 1x RS232, 1x RJ45
Contrast Ratio 20,000:1
Control Unit Crestron Roomview, RS-232, RJ45
Display Technology Texas Instruments 0.65" WXGA DMD
Displayable Colors 1.07 billion
Geometry Vertical keystone
Image Size 35.64" – 302.98"
Inputs 1x HDMI, 1x HDMI(MHL), 2x VGA, 1x composite, 1x USB, 1x audio in, 1x Mic in
Keystone Correction ±20° Vertical
Light Source Life Up to 10,000/10,000/6000 (Dynamic/Eco/Bright)
Light Source Type 203 W Lamp
Maximum Resolution WUXGA (1920 x 1200)
Native Resolution WXGA (1280 x 800)
Noise Level 28 dB (Eco)
Offset 115% ±5%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Outputs 1x VGA out, 1x audio out
Power Consumption 243 W typical (Bright), 267 W max (Bright), 237 W typical (Eco), 261 W max (Eco)
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 1.31' – 11.15'
Projection Lens F=2.8, f=7.51 mm
Projection Method Front, rear, ceiling mount, table top
Remote Control Full size remote
Throw Ratio 0.52:1
Zoom Type 0.8 – 2.0x digital, Fixed optical
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. 3D glasses are needed and are sold separately.
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 50-85 Hz (120Hz for 3D feature projector)
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
PHYSICAL SPECIFICATIONS
Dimensions 12.44" x 4.27" x 9.56"
Security Kensington® lock port
Weight 6.7 lbs.
OTHER

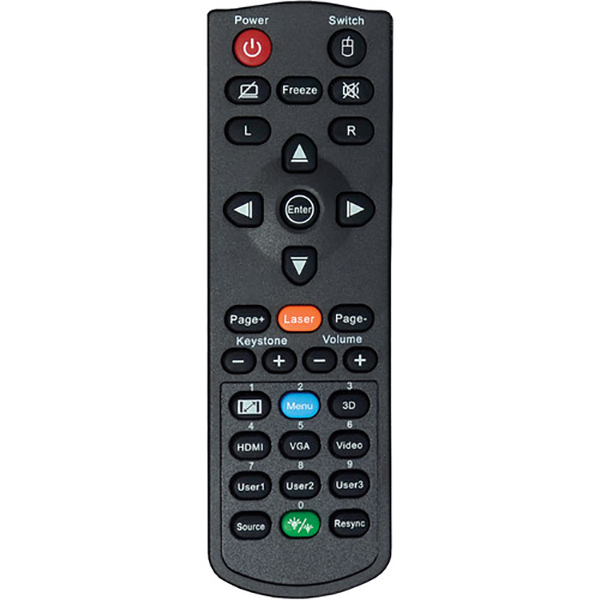

Optional Accessories Remote: BR-5053C, Lamp: BL-FU200D, Mount: OWM3000ST
UPC 796435442736
Warranty Info 1 year parts and labor limited warranty on the projector, 90 days lamp warranty

Accessories

OWM3000ST mount Mounts
Generic lamp image

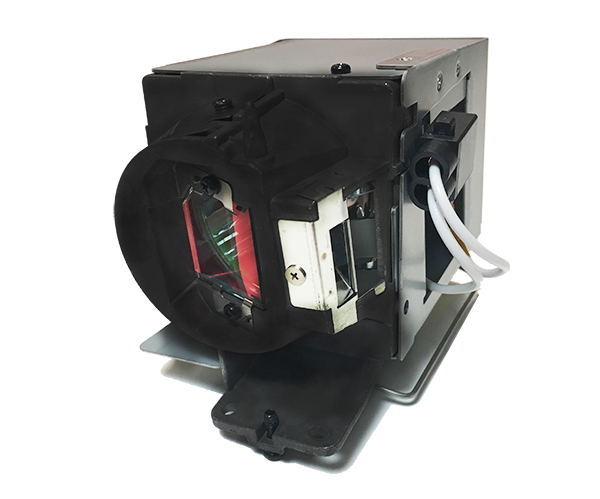

Replacement lamp (BL-FU200D)

(Actual lamp may differ from image.)
Soft case BK-4036 Soft case BK-4036
3D glasses ZD302 DLP link 3D glasses ZD-302
