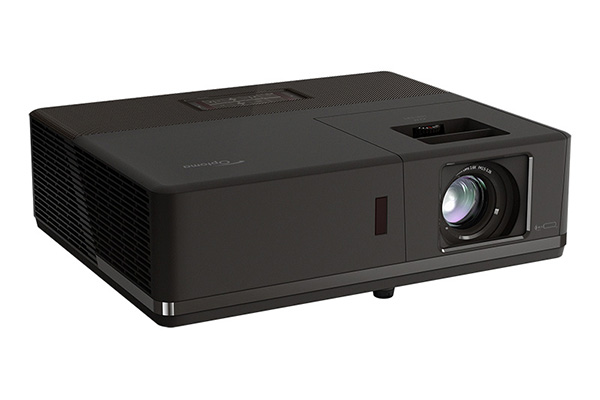

Optoma ZU506T-B

Laser 1-DLP Projector, 1920x1200 WUXGA, 5000 Lumens, D:W 1.40-2.24:1, Vertical Lens Shift, Black, 3 Year Warranty

Item #0601-3830 Model #ZU506TB

Overview

WUXGA Professional Installation Laser Projector

ZU506T-B

Bright 5,000 ANSI lumens and WUXGA resolution
4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
Light source life up to 20,000 hrs
Vertical lens shift with four corner correction
LAN and RS232 control with Crestron, Extron, AMX and Telnet compatibility
Integrated HDBaseT and 12v trigger
Stereo speakers with 10W per channel

Bright, compact and virtually maintenance-free

Project beautiful WUXGA visuals that engage audiences with the 5,000 lumens Optoma ProScene ZU506T. A laser light source eliminates lamp and filter replacements for up to 20,000 hours of low-cost and virtually maintenance-free operation.

The compact size, light weight and quiet operation make it perfect for boardrooms, higher education, houses of worship and entertainment venues. Vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.

HDMI, HDBaseT and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. Stereo speakers with 10W per channel provide rich audio for all-in-one applications. A 12V trigger output ensures compatibility with motorized screens.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

WUXGA Resolution

Where detail really matter, the full WUXGA (1920×1200) resolution offers 15% more pixels than 1080p and 60% more than SXGA+. This enables unscaled Full HD video and extra detail.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100 m).

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Vertical Lens Shift

Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

Manage up to 250 projectors at the same time (via master PC).
Control and alter the projector settings using a simple web browser page, including OSD menu control.
Set up email alerts for warning messages.
Ideal for large installations in both educational and business environments.

Specifications

TECHNICAL SPECIFICATIONS

360 Operation	Yes
Aspect Ratio	16:10 native, 16:9 and 4:3 compatible
Audio	2 x 10W speakers (stereo)
Brightness	5,000 ANSI lumens

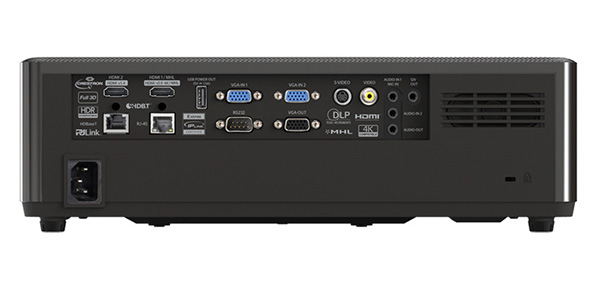

Connections	2x HDMI 1.4 (HDMI 2 MHL), 1x HDBaseT, 1x composite, 2x VGA, 1x S-video, 1x audio in, 1x mic/audio in, 1x USB-A (power), 1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger
Contrast Ratio	300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display Technology	Texas Instruments™ 0.67” WUXGA DMD
Displayable Colors	1.07 billion
Keystone Correction	±30° vertical and horizontal
Light Source Type	Laser phosphor
Light Source Life	Up to 20,000 hrs
Lens Shift	+8% vertical
Maximum Resolution	4K UHD (3840 x 2160)
Native Resolution	WUXGA (1920 x 1200)
Noise Level	36db (Normal) / 30db (Eco)
Offset	99%–107% ±5%
Operating Temperature	41–104°F (5–40°C), 85% max humidity
Outputs	1x VGA out (VGA 1 only), 2x audio out, 1x 12v trigger
Portrait Mode	Yes
Power Consumption	353W ±15% (Full), 321W±15% (Eco)
Power Supply	AC input 110–240 V, 50–60 Hz
Projection Distance	3.28’ – 32.8’
Projection Lens	F=2.5–3.26, f=20.91–32.62
Projection Method	Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
Projection Screen Size	20.8” – 331.6”
Remote Control	Full size remote with laser
Throw Ratio	1.4 – 2.24 (distance/width), ±5% Variance
Uniformity	80%
Zoom Type	1.6x optical, 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

3D Compatibility	Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. Required 3D glasses are sold separately.
Computer Compatibility	UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac
Horizontal Scan Rate	15.375 – 91.146 KHz
Vertical Scan Rate	24 – 85 Hz
Video Compatibility	PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz)

PHYSICAL SPECIFICATIONS

Dimensions (W x H x D)	14.7” x 4.6” x 11.9”
Security	Kensington® lock port, password (OSD)
Weight	12.12 lbs

OTHER

Optional Accessories	Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses
Standard Accessories	AC power cable, lens cap, remote control, batteries, quick start guide, CD user manual, carrying case
UPC	796435443689
Warranty Info	3 years or 20,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector
