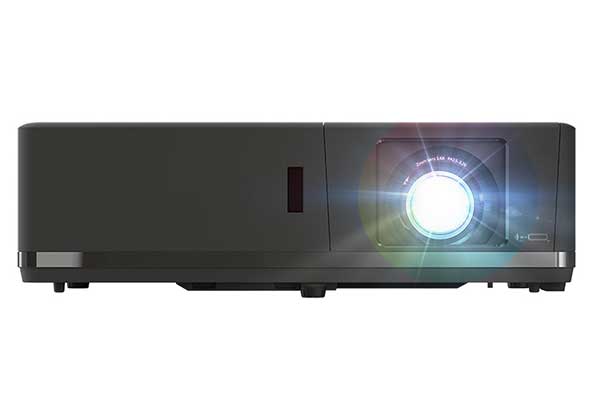

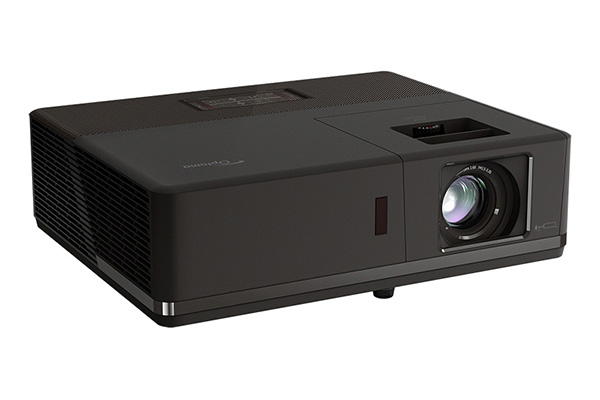

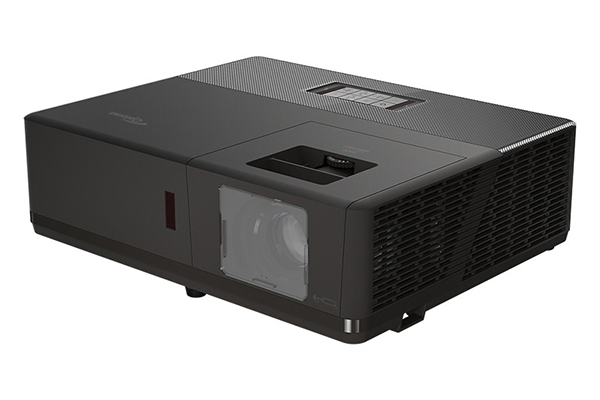

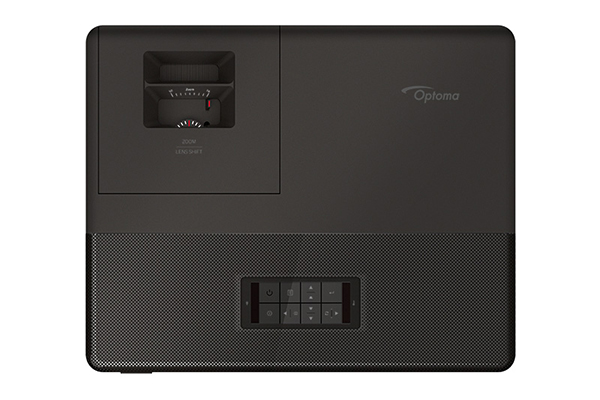

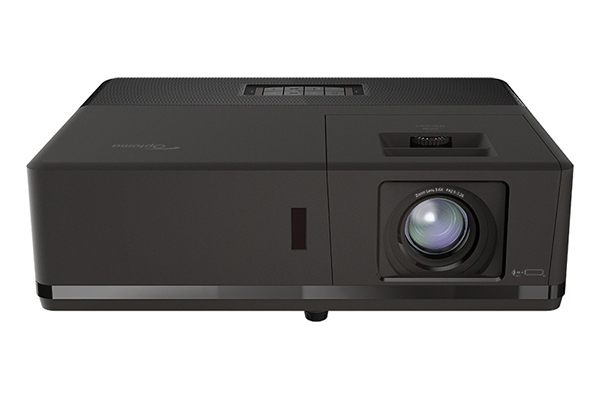

Optoma ZH506T-B

Laser DLP Projector, 4K UHD, 1080p Native, 5000 Lumens, Vertical Lens Shift, D:W 1.40:1 - 2.24:1, Black, 3 Year Warranty
Part #: 0601-3832    Mfr #: ZH506TB

Optoma ZH506T-B

Overview

1080p Professional Installation Laser Projector

ZH506T-B

  • Bright 5,000 ANSI lumens and 1080p resolution
  • 4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
  • Light source life up to 20,000 hrs
  • Vertical lens shift with four corner correction
  • LAN and RS232 control with Crestron, Extron, AMX and Telnet compatibility
  • Integrated HDBaseT and 12V trigger
  • Stereo speakers with 10W per channel

Bright, compact and virtually maintenance-free

Brighten any room with razor-sharp, 5,000 lumens, 1080p projection with the remarkable Optoma ProScene ZH506T. A laser light source eliminates lamp and filter replacements for up to 20,000 hours of low-cost and virtually maintenance-free operation.

The compact size, light weight and quiet operation make it perfect for boardrooms, higher education, houses of worship and entertainment venues. Vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.

HDMI, HDBaseT and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources, while LAN and RS-232 enable control via Extron, AMX or Telnet. Stereo speakers with 10W per channel provide rich audio for all-in-one applications. A 12V trigger output ensures compatibility with motorized screens.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Full HD 1080p

1080p (1920×1080) resolution renders sharp and detailed images from HD content without downscaling or compression, which is perfect for movies, TV shows and gaming.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100 m).

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Vertical Lens Shift

Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:9 (native) and 4:3 compatible
Audio 2 x 10 W speakers (stereo)
Brightness 5,000 ANSI lumens

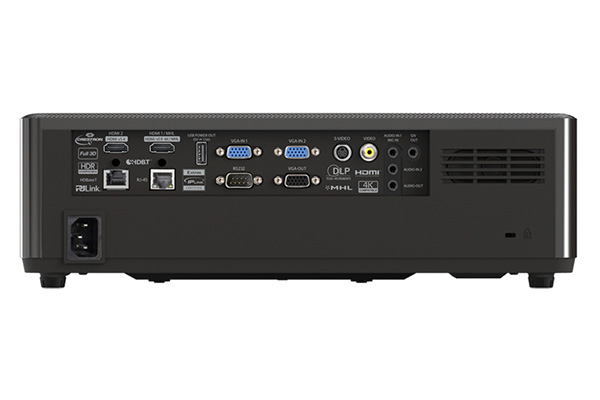

Connections 2x HDMI 1.4 (HDMI 2 MHL), 1x HDBaseT, 1x composite, 2x VGA, 1x S-video, 1x audio in, 1x mic/audio in, 1x USB-A (power), 1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display Technology Texas Instruments™ 0.65” 1080p DMD
Displayable Colors 1.07 billion
Keystone Correction ±30° vertical and horizontal
Light Source Type Laser phosphor
Light Source Life Up to 20,000 hrs
Lens Shift 15% vertical
Maximum Resolution 4K UHD (3840 x 2160)
Native Resolution 1080p (1920 x 1080)
Noise Level 36 db (Normal) / 30 db (Eco)
Offset 103% – 118% ±5%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Portrait Mode Yes
Power Consumption 321 W ±15% (Full), 353 W ±15% (Eco)
Power Supply AC input 110–240 V, 50–60 Hz
Projection Distance 3.28’ – 32.8’
Projection Lens F=2.53.26, f=20.9132.62
Projection Method Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
Projection Screen Size 20.2” – 322.6”
Remote Control Full size remote with laser
Throw Ratio 1.4 – 2.24 (distance/width), ±5% Variance
Uniformity 80%
Zoom Type 1.6x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. Required 3D glasses are sold separately.
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85 Hz
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 14.7” x 4.6” x 11.9”
Security Kensington® lock port, password (OSD)
Weight 12.12 lbs
OTHER
Optional Accessories Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses
Standard Accessories AC power cable, lens cap, remote control, batteries, quick start guide, CD user manual, carrying case
UPC 796435443696
Warranty Info 3 years or 20,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector
