Optoma BX-CTA08

Motorized Short Zoom Lens, 1.25-2.0:1, 3-Year Warranty
Item #0601-3860 Model #BXCTA08

Features

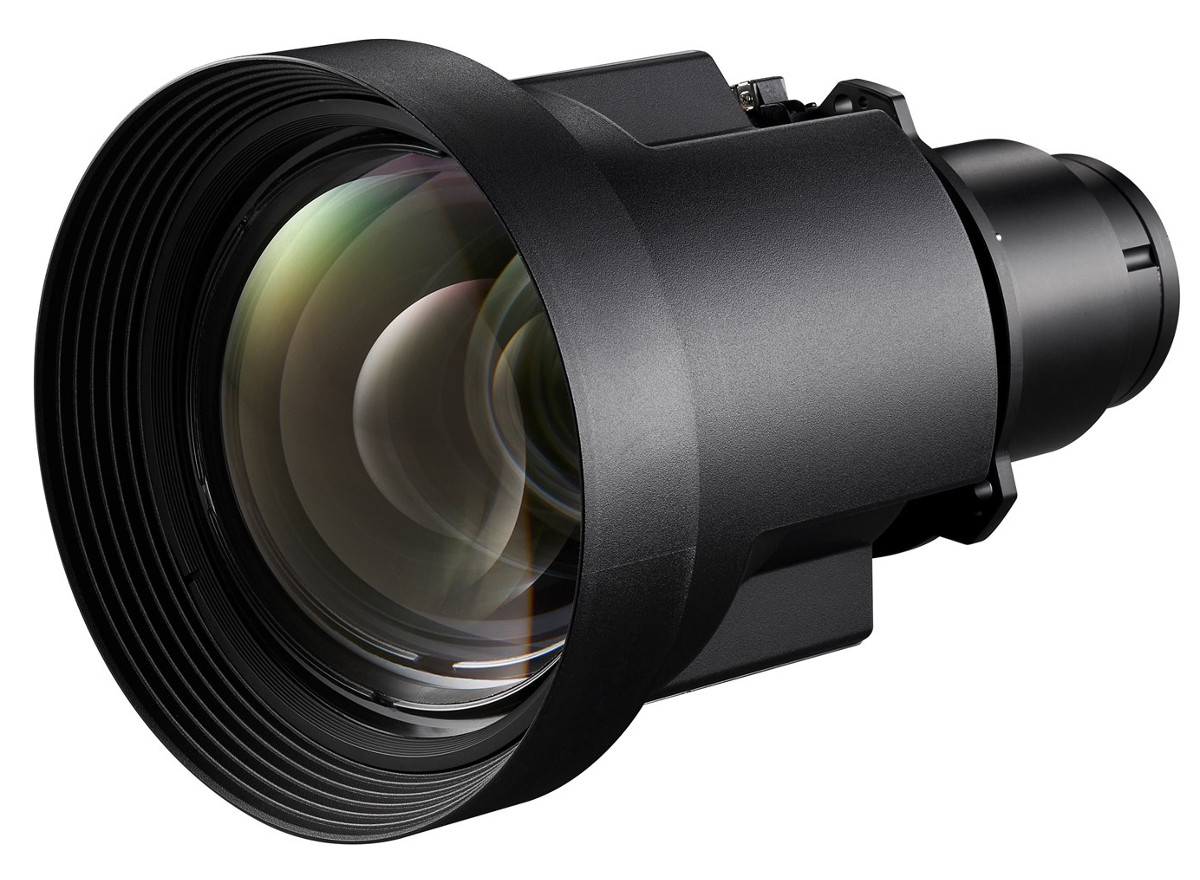

Optoma BX-CTA08

Motorized Standard Throw Lens with Zoom

The BX-CTA08 standard throw lens zoom lens is ideal for rental installations or permanent install applications within the entertainment or museum sectors. This lens has a throw ratio of 1.25 ~ 2:1 and can produce an image size of 80 ~ 300".

Full lens memory saves and quickly recalls zoom, focus, and lens shift positions. With the ability to store 5 lens shift positions, the BX-CTA08 semi-wide zoom lens is ideal for immersive installations requiring a moderate distance from projector to screen, as well as multiple-screen environments.

Key Features
  • 1.6x motorized zoom, focus & lens shift — enables easy installs in a variety of spaces and applications
  • Throw ratio 1.25 ~ 2:1 — project 300" image from over 69 ft away
  • Perfect for immersive installations and theme park environments

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Specifications

LENS
Throw Ratio 1.25 ~ 2.0:1
Min throw distance 4.43 ft
Max throw distance 70.67 ft
Min screen size 80" (50" Mechanical Limit)
Max screen size 300" (600" Mechanical Limit)
Aperture (F-stop) 2.03 ~ 2.36
Focal Length 22.1 ~ 35.5 mm
Zoom 1.6x
Zoom Adjustment Motorized
Focus Adjustment Motorized
Lens shift Vertical 55%; Horizontal 25% (Motorized)
Lens memory Zoom, Focus, and Lens shift
GENERAL
Dimensions (WxDxH) 5.43" x 8.54" x 5.43" (138 x 216.92 x 138 mm)
Weight 4.2 lb (1.9 kg)

Warranty

3-year parts and labor limited warranty
