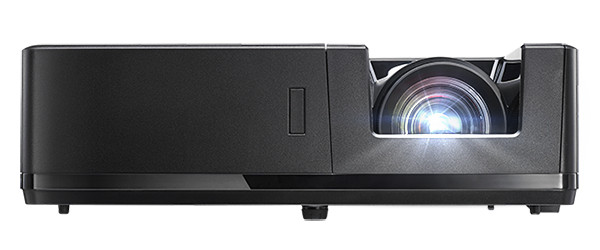

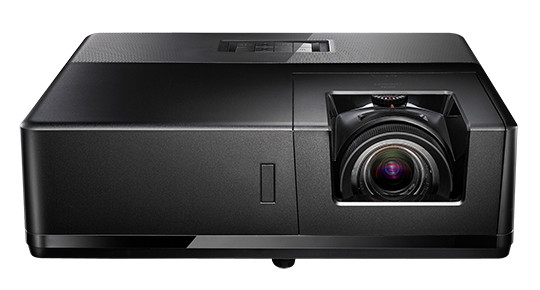

Optoma ZU606T-B

Laser DLP Projector, WUXGA, 6000 Lumens, Black, D:W 1.2-1.9:1, 3-year warranty
Part #: 0601-3871    Mfr #: ZU606TB

Optoma ZU606T-B

Overview

Optoma ZU606T-B

WUXGA Professional Installation Laser Projector

  • Bright 6,000 ANSI lumens and WUXGA resolution
  • 4K UHD HDR with HDMI 2.0 (HDCP 2.2) downscaling
  • DuraCore maintenance-free laser light source up to 30,000 hours of life

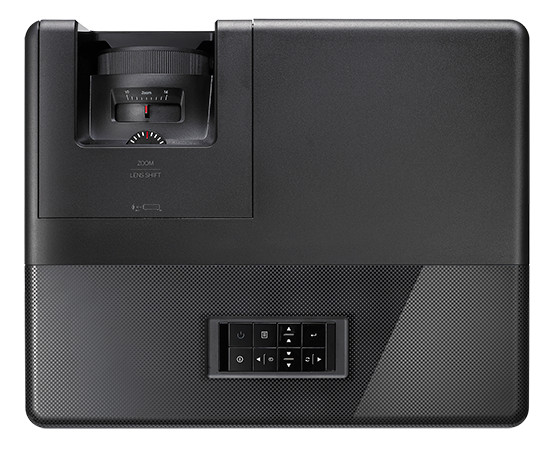

  • Vertical lens shift, 1.6x zoom and four corner correction
  • Integrated HDBaseT and variety of digital and analog I/O
  • 360° and portrait mode operation
Bright, compact and virtually maintenance-free

Project beautiful WUXGA visuals that engage audiences with the 6,000 lumens Optoma ProScene ZU606T. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.

The compact size, low weight and quiet operation make it perfect for boardrooms, higher education, houses of worship and entertainment venues. Vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.

A variety of inputs, including HDMI and VGA, provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX, and Telnet. Stereo speakers with 10 W per channel provide rich audio for all-in-one applications, while a 12V trigger output ensures compatibility with motorized screens.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Vertical Lens Shift

Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Direct Power On

The projector can be controlled directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Signal Power On

The projector can be powered on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

WUXGA Resolution

Where detail really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

MHL Connectivity

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos and share photos on the big screen.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10 (native), 16:9, 4:3 (compatible)
Audio 2 x 10 W speakers (stereo)
Brightness 6,000 ANSI lumens

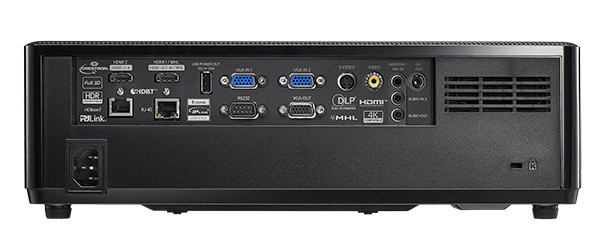

Connections 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x composite, 1x VGA, 1x composite, 1x VGA out, 1x audio in, 1x mic/audio in, 1x USB-A (power), 1x 12V trigger
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display Technology Texas Instruments™ 0.67” WUXGA DMD
Displayable Colors 1.07 billion
Keystone Correction ±30° vertical and horizontal
Light Source Type Laser phosphor
Light Source Life Up to 30,000 hrs (Eco), 20,000 hrs (Normal)
Lens Shift 20% vertical
Maximum Resolution WUXGA (1920 x 1200)
Native Resolution WUXGA (1920 x 1200)
Noise Level 32 dB
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption Bright: 406 W (typical), 467 W (max), Eco: 188 W (typical), 216 W (max)
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 4.3'  32.8'
Projection Lens F=2.33.0, f=1828 mm
Projection Method 360°, front, rear, ceiling mount, table top
360°: auto dims to 60% ±5% in 195° – 345° orientation
Portrait: auto dims to 90% ±5%
Projection Screen Size 32" – 302"
Remote Control Full size remote with laser pointer
Throw Ratio 1.21.9:1
Uniformity 85%
Zoom Type 1.6x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. Required 3D glasses are sold separately.
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60 Hz), 4K (DCI) (24/30 Hz)
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85 Hz (120 Hz for 1080p 3D feature)
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/30/50/60 Hz), 4K (DCI) (24/30 Hz)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 14.7" x 4.6" x 11.9"
Security Kensington® lock port, password (OSD)
Weight 12.3 lbs
OTHER
What's in the Box? ZU606T-B, AC power cable, lens cap, remote control, batteries, quick start guide and warranty card
Optional Accessories Remote, mount
UPC 796435444563
Warranty Info 3-year or 20,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector.
