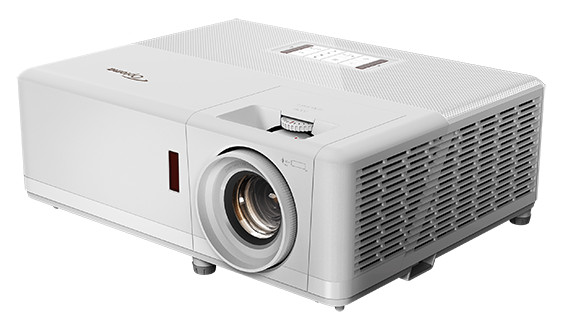

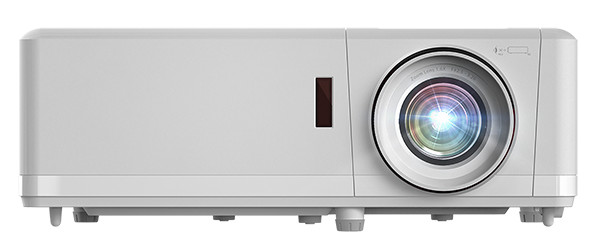

Optoma ZW502

Laser DLP Projector, WXGA, 5000 Lumens, HDR10, White, D:W 1.47-2.35:1, 2 Year projector, 5 Yr/12,000 Hr light source warranty
Part #: 0601-3876    Mfr #: ZW502

Optoma ZW502

Overview

Optoma ZW502

WXGA Laser Projector

  • 5,000 ANSI lumens with 300,000:1 contrast ratio
  • 4K UHD input with HDMI 2.0 (HDCP 2.2)
  • HDR10 and HLG compatible
  • DuraCore maintenance-free laser light source up to 30,000 hours
  • Vertical lens shift with four-corner correction
  • 24/7, 360° and portrait mode operation
  • 1.6x optical zoom
Compact, lightweight and virtually maintenance free

Brighten any room with razor-sharp, 5,000 lumen, WXGA projection with the remarkable Optoma ZW502. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.

Compact size, low weight and quiet operation make it perfect for classrooms, meeting rooms, board rooms and digital signage. Four-corner correction, 360° and portrait mode operation enable flexible installations.

HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. Stereo speakers with 15 W per channel provide rich audio for all-in-one applications.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

High Contrast

Add more depth to your image with a high-contrast projector. With brighter whites and ultra-rich blacks, images come alive and text is crisp and clear.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.

HD Ready

HD Ready resolution (720p) renders sharp and detailed images from HD content without downscaling or compression, which is perfect for watching movies, TV shows and gaming.

AV Mute

When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.

Quick Resume

This feature allows the projector to be instantly powered on again within 100 seconds of turning it off.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the laser output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

PJ-Link Compatibility

PJ-Link compatibility enables the projector to power on, off and change basic functions using the PJ-Link port.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10 (native), 16:9, 4:3, LBX, auto compatible
Audio 2 x 15 W (stereo)
Brightness 5,000 ANSI lumens
Color Wheel 4 Segment RYGB

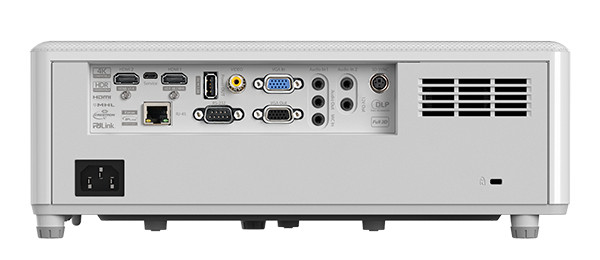

Connections 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x composite, 2x audio in (3.5 mm), 1x mic in, 1x USB-A, 1x VGA out (VGA 1 only), 1x audio out, 1x 12V trigger, 1x 3D sync, 1x micro USB
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Control Unit 1x RJ-45, 1x RS-232C
Display Technology Texas Instruments 0.65" WXGA DMD
Displayable Colors 1.07 billion
Geometry Four-corner adjustment
Image Size 19.7" – 315.8"
Keystone Correction ±30° horizontal and vertical
Light Source Type DuraCore laser
Light Source Life Up to 30,000 hrs
Lens Shift 12.4% vertical
Maximum Resolution HDMI 2.0: 4K UHD (3840 x 2160 @ 60 Hz)
                 4K (4096 x 2160 @ 60 Hz)
HDMI 1.4: WXGA (1920 x 1200)
Native Resolution WXGA (1280 x 800)
Noise Level 32 dB
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption Bright: 277 W max
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 2.3' – 52.5' (without zoom)
Projection Lens F=2.5~3.26, f=20.91~32.62 mm
Projection Method 360°, front, rear, ceiling mount, table top
360°: auto dims to 60% ±5% in 195° – 345° orientation
Portrait: auto dims to 90% ±5%
Remote Control Full size remote with laser pointer
Throw Ratio 1.472.35:1 ±5%
Uniformity 75%
Zoom Type 1.6x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (frame pack, side-by-side, top-bottom) and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and sold separately.
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WXGA, 4K, 4K UHD
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85 Hz (120 Hz for 1080p 3D feature)
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K
PHYSICAL SPECIFICATIONS
Dimensions 13.26" x 4.8" x 10.5"
Security Kensington® lock port, password (OSD)
Weight 10 lbs
OTHER
What's in the Box? ZW502, AC power cable, remote control, batteries, quick start guide
Optional Accessories Ceiling mount
UPC 796435444334
Warranty Info 5-year or 12,000-hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector.
