Optoma QCP-SK-4K-HDMI

Optoma QCP-SK-4K-HDMI, QuickCast Pro-4K Wireless 4K Mirroring Starter Kit, 1 year warranty
Part #: 0601-3880    Mfr #: QCPSK4KHDMI

Optoma QCP-SK-4K-HDMI

Overview

Optoma QuickCast Pro-4K Mirroring Starter Kit

4K Wireless Display & Presentation System

Easily broadcast 4K sources and share content from HDMI sources wirelessly using the Optoma QuickCast Pro. Simply connect the QuickCast Pro receiver to an HDMI input and plug the HDMI transmitter into the source and begin wirelessly transmitting office documents, presentations, videos and digital content with the click of a button.

The HDMI transmitter features an integrated battery with up to 6 hours of battery life for crystal clear digital video and presentations without being tethered to a power adapter. Operating on 802.11ac MIMO technology on a 5 GHz frequency ensures maximum connection stability with minimal interference signal interference up to 30 feet away.

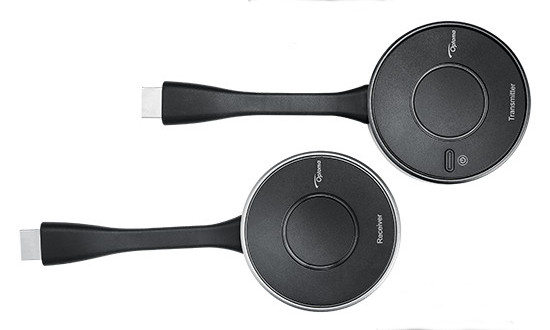

The QuickCast Pro Starter Kit includes one Transmitter and one Receiver. The charger is not included. (See Accessories tab.)

  • Wireless HDMI mirroring
  • One button image sharing with no software to install
  • 4K UHD native resolution, 1080p and WUXGA compatible
  • HDMI Transmitter (HDCP 1.4) with 6 hour battery life with LED power gauge
  • HDMI Receiver (HDCP 2.0)
  • USB-C charging port

Specifications

TECHNICAL SPECIFICATIONS
Audio 2-channel PCM (stereo)
Connectivity HDMI Receiver Specifications: HDMI 2.0 (HDCP 2.2)
HDMI Transmitter Specifications: HDMI 1.4 (HDCP 1.4)
Display Technology HDMI
Maximum Resolution 4K UHD (3840 x 2160)
Native Resolution 4K UHD (3840 x 2160)
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption HDMI Receiver Specifications: 750mA
HDMI Transmitter Specifications: 550mA
Power Source Hz HDMI Receiver Specifications: DC power adapter (5V, 2-amps)
HDMI Transmitter Specifications: USB-C (5V, 2-amps) Internal battery
Power Supply AC input 100-240 V, 50-60 Hz, auto-switching
Wireless Technology 802.11ac MIMO (5 GHz)
COMPATIBILITY SPECIFICATIONS
Video Compatibility Encoder and Decoder: H.264
PHYSICAL SPECIFICATIONS
Dimensions HDMI receiver: 2.8” x 0.9” x 6.7”
HDMI transmitter: 2.8” x 1.2” x 6.7”
Weight HDMI receiver: 2.2 oz.
HDMI transmitter: 4.3 oz.
OTHER
What's in the Box? The bundle consists of:
One receiver (QCP-4K-HDMIRX)
One transmitter (QCP-4K-HDMITX)
SKU QCP-SK-4K-HDMI
UPC 796435091569
Warranty Info 1-year limited warranty
