Optoma ZX300

Laser DLP Projector, XGA, 3500 Lumens, D:W 1.94-2.16
Item #0601-3917 Model #ZX300

Overview

Optoma ZX300

Compact high brightness laser projector

The ZX300 is a compact XGA DuraCore IP6X laser projector. Designed for maintenance-free continuous operation, it can be installed in virtually any orientation. Its small and lightweight footprint combined with 360-degree and portrait projection enable easy installation.

This feature-packed projector has a built-in speaker and its laser technology delivers up to 30,000 hours of maintenance-free laser light source.

The ZX300 is geared for medium-sized exhibition venues, events, tradeshows or meeting rooms. It maintains excellent image quality, as brightness and color saturation are preserved for longer compared to lamp-based systems.



Key Features:
  • Bright XGA DuraCore laser projector: 3500 lumens and IP6X certified
  • Easy installation: 360-degree and portrait projection
  • Feature packed: Compact and lightweight and a built-in speaker
  • DuraCore laser technology: 30,000 hours maintenance-free laser light source



Features

  • DuraCore technology: Implementing advanced laser diode cooling techniques and an innovative dust resistant design, this technology achieves industry leading lifetime.

  • IP6X airtight optical engine: independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability, paramount for 24/7 maintenance-free operation in challenging environments.

  • Superior contrast: Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks. Images come alive and text appears crisp and clear - ideal for business and education applications.
  • Amazing color: reliable color performance suits any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations, we have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

  • Portrait projection: Ideal for digital signage applications, you can rotate your projector 90 degrees to project a portrait image.

  • 360 projection: Images can be projected over a 360° range along the projector’s horizontal axis. (For more information please refer to the user manual.)

  • Full 3D: can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3D media servers.

    Integrated speaker: A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
  • USB-Power: Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
  • AV mute: Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.
  • Auto power off: To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used
  • Quick Resume: This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
  • Direct power on: The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a "master" power switch.
  • Direct power off: Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

  • 24/7 operation: Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

Specifications

DISPLAY/IMAGE
Display Technology DLP
Resolution
 XGA (1024 x 768)
Brightness
 3,500 lumens
Contrast ratio
 300,000:1
Native aspect ratio
 4:3
Aspect ratio - compatible
 4:3, 16:9, 16:10
Keystone correction - vertical
 ±40°
Has vertical auto keystone correction
 Yes
Displayable colors (millions)
 1073.4
Horizontal scan rate
 15.375 ~ 91.146 Khz
Vertical scan rate
 50 ~ 85 Hz (120 Hz for 3D)
Uniformity
 75%
Screen size
 25.4" ~ 300" diagonal

LIGHT SOURCE INFO
Light source type
 Laser
LASER life
 30,000 hours
OPTICAL
Throw ratio
 1.94:1 ~ 2.16:1
Projection distance
 39.37" – 464.57"
Zoom
 1.1x manual
Focal length
 21.85 ~ 24.01 mm
Native offset
 113%
CONNECTIVITY

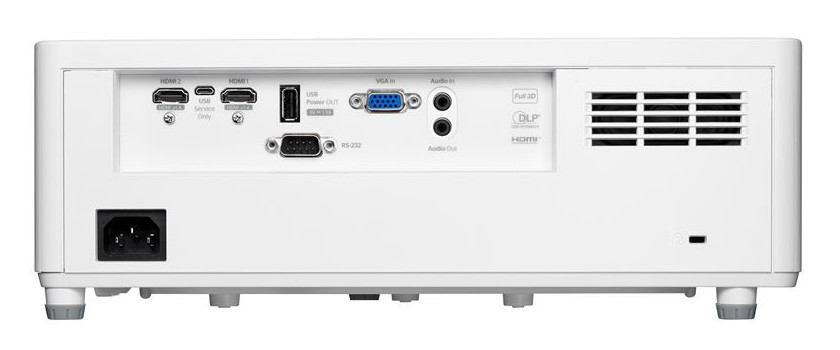

Inputs
2 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5 mm
Outputs 1 x Audio 3.5 mm, 1 x USB-A power 1.5A
Control 1 x RS232, 1 x micro USB service
GENERAL
Noise level (typical)
 30 dB
Noise level (max)
 32 dB
PC compatibility
 FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
 NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60 Hz), 1080i(50/60 Hz), 1080p(50/60 Hz)
3D compatibility
 Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
3D
 Full 3D
Security
 Security bar, Kensington Lock, Password protected interface
IP rating
 IP6X
OSD / display languages
 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
 Yes
360° operation
 Yes
Operating conditions
 5°C ~ 40°C / 41°F ~ 104°F
max altitude: 3000 m / 9843 ft
max humidity: 85%
Remote control
 Data remote with laser and mouse function
Speaker count
 1
Watts per speaker
 15 W
POWER
Power supply
 100 ~ 240 V, 50 ~ 60 Hz
Power consumption (standby)
 < 0.5 W
Power consumption (min)
 138 W
Power consumption (max)
 161 W
WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
 13.27" x 10.43" x 4.82" (337 x 265 x 122 mm)
Gross weight
 13.67 lbs (6.20 kg)
Net weight
 8.82 lb (4.00 kg)



What's in the box:

  • ZX300 projector
  • AC power cord
  • Remote control
  • 2x AAA batteries
  • Basic user manual



Warranty

  • 1-year parts and labor limited warranty on the projector,
  • 5-year or 12,000-hour light source warranty (whichever comes first)
