Optoma ZH406STx

Laser DLP Projector 1080p, 4200 Lumens, D:W 0.5:1, White, 2 Year projector, 5 Yr/12,000 Hr light source warranty
Item #0601-3932 Model #ZH406STX

Overview

Optoma ZH406STx

1080p compact high brightness short throw laser projector

The ZH406STx is a compact short throw Full HD 1080p DuraCore laser projector. Designed for virtually maintenance-free, continuous operation it can be installed in almost any orientation.

Packed full of features this compact laser projector has built-in speakers, is 4K and HDR compatible, and is low maintenance with extremely long-life laser technology. For ultimate control, the projector comes with RJ45 connection allowing you to monitor and control your network in multiple rooms.

It's perfect for business, education and museums where a clear, bright image is required.

Key Features
  • Bright Full HD 1080p laser projector with 4200 lumens for use any time of day
  • Short throw lens lets you project a 100" image from just a few feet away
  • Ultimate control with Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • DuraCore laser light source provides up to 30,000 hours of virtually maintenance-free operation

Features

  • Short Throw Lens: lets you project an impressive 100" image from just over three feet away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
  • DuraCore Technology: implements advanced laser diode cooling techniques and an innovative dust resistant design, for an industry-leading lifetime.
  • IP6X Airtight optical engine: Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability, paramount for 24/7 maintenance-free operation in challenging environments.
  • Full HD 1080p resolution: gives you sharp and detailed images from HD content without downscaling or compression, perfect for watching Blu-ray movies, HD broadcasting and playing video games.
  • HDR compatible: Capable of receiving and displaying HDR meta data, allowing you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

  • Superior contrast: Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks. Images come alive and text appears crisp and clear, ideal for business and education applications.

  • Amazing color: Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations, we have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.
  • Four corner correction: Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image, making it Ideal for image stacking, uneven walls or where awkward projector placement requires installation at an angle.

  • Auto keystone: automatically adjusts the trapezoid effect when the projector is off-axis, to create an aligned image. (Note: this feature only adjusts the image in the vertical plane.)

  • Portrait projection: let's you rotate your projector 90 degrees to project a portrait image, making it ideal for digital signage applications.
  • 360 projection: Images can be projected over a 360° range along the projector’s horizontal axis.
  • Wide range of control and monitor options:

    • RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible Allows for easy installation with Extron control systems

  • PJLink protocol: incorporated into the projector to allow for easy installation with PJLink compatible control systems.

  • Telnet: able to receive commands via telenet allowing for easy installation with Telnet compatible control systems.

  • Full 3D: can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

  • Integrated speaker: A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

  • USB-Power: Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
  • AV mute: Stay in control of your presentation; direct your audience's attention away from the screen by blanking the image when not needed.
  • Quick resume: This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
  • Auto power off: To help save energy, this feature automatically turns off the projector after a set period of time if it is not being used
  • Direct power on: The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a "master" power switch.
  • Direct power off: Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
  • 24/7 operation: Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation — standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.

Specifications

DISPLAY/IMAGE
Display Technology
 DLP™ 0.65"
Resolution
 1080p Full HD (1920x1080)
Brightness
4,200 lumens
Contrast ratio
 300,000:1
Native aspect ratio
 16:9
Aspect ratio - compatible
 4:3
Keystone correction - horizontal
 ±15°
Keystone correction - vertical
 ±15°
Has vertical auto keystone correction
 Yes
Displayable colors
 1073.4 millions
Uniformity
 80%
Horizontal scan rate
 15.375 ~ 91.146 KHz
Vertical scan rate
 50 ~ 120 Hz
Screen size
 36.4" ~ 300.5" diagonal

LIGHT SOURCE INFO
Light source type
 Laser
LASER life
 30,000 hours

OPTICAL
Throw ratio
 0.5:1
Projection distance
 15.75"–129.92"
Zoom type
 Fixed
F/stop
 2.8
Focal length
 7.51 mm / 0.296"
Native offset
 115%

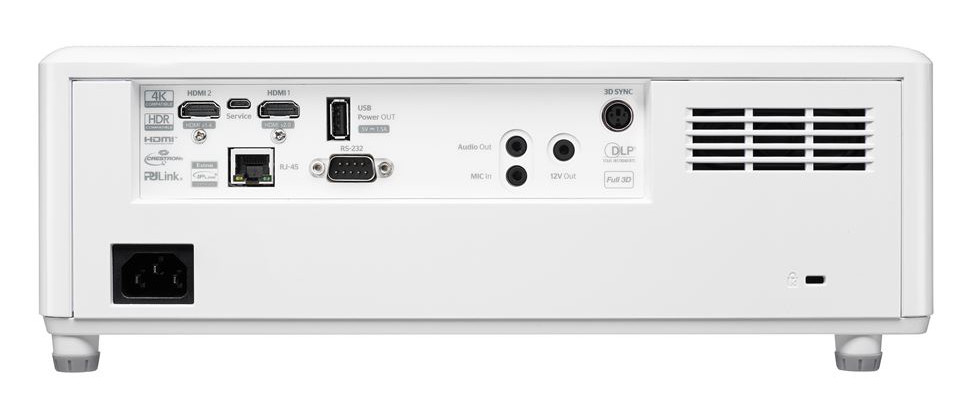

CONNECTIVITY
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x Mic 3.5 mm
Outputs 1 x Audio 3.5 mm, 1 x USB-A power 1.5A
Control 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x 3D sync

GENERAL
Noise level (typical)
 30 dB
Noise level (max)
 32 dB
PC compatibility
 UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
 NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
 Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
3D
 Full 3D
Security
 Security bar, Kensington Lock, Password protected interface
IP rating
 IP6X
OSD / display languages
 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions
 5°C ~ 40°C / 41°F ~ 104°F, max humidity 85%, max altitude 3000 m /9843 ft
Remote control
 Backlit ProAV remote
Heat dissipation
 918 BTU/hour
Speaker count
 2
Watts per speaker
 10 W
In the box
  • ZH406STx projector
  • AC power cord
  • Remote control with 2 AAA batteries
  • Basic user manual
Optional wireless models
 UHDCast Pro, QuickCast Bundle, QuickCast starter kit
NETWORKING
LAN - control
 Yes
POWER
Power supply
 100 ~ 240 V, 50 ~ 60 Hz
Power consumption (standby)
 < 0.5 W
Power consumption (min)
 206 W
Power consumption (max)
 269 W
WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
 13.27" x 10.43" x 4.82" (337 x 265 x 122 mm)
Weight
 10.03 lb (4.55 kg)

Accessories

Downloads

Warranty

Limited Warranty

  • 2 years on projector parts and labor
  • 5 years or 12000 hour on light source (whichever is sooner)

DuraCare Warranty

Optoma's additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.

12,000 hour re-manufacture service:

  1. Replacement of laser light source
  2. Replacement of critical components and moving parts
  3. Internal inspection and cleaning
