Optoma CS200T
Overview

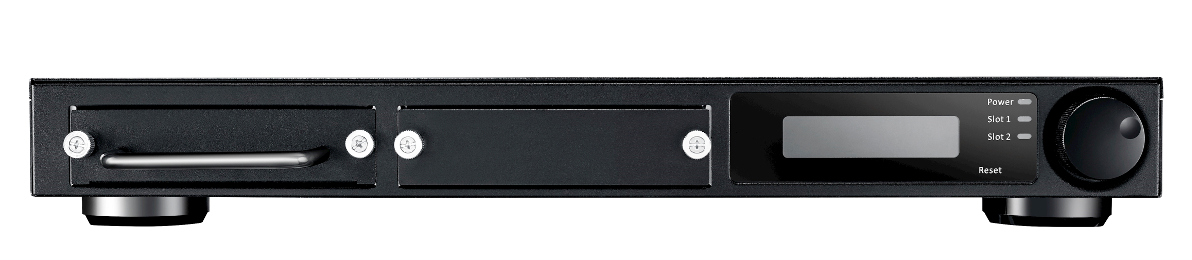

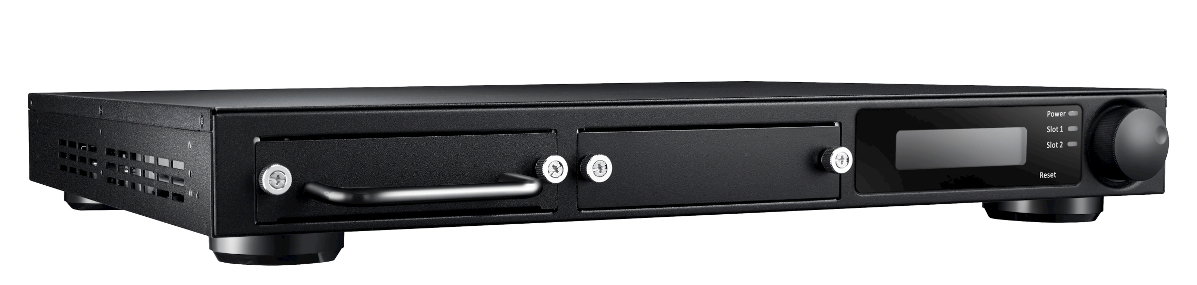

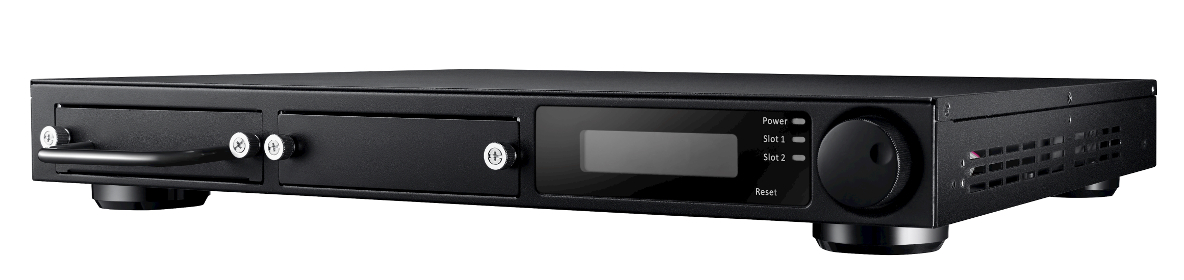

Optoma CS200T
Cropping box for ZH420UST ultra short throw projectors
Combine two ZH420UST projectors with the CS200T cropping box to provide automatic 2-channel edge blending and cropping using the projectors' built-in camera. Expand your system to 4 channels using the CRPT-2K expansion card. (Crop and blend up to four ZH420UST projectors total per CS200T).
Software application is available on Windows OS.
HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs. Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable (capable up to 328 feet/100 meters without signal loss) makes installation hassle-free.
Key Features:
- Cropping box for ZH420UST ultra short throw projectors
- Enables easy auto blending using ZH420UST built-in camera
- Compact 1U form factor for rack mounting installations
- Two outputs — connection and control of two ZH420UST projectors as standard, expandable to four with optional expansion cards
Features
Other Features
-
Up to 4K@60Hz input resolution
-
Up to 4 ports 1920x1200@60Hz output resolution
-
Image Cropping
-
Stereo Audio Output and Input
-
Audio pass-through or mixer mode to HDMI output ports
-
HDMI 2.0 Loop through port for image cascade to next CS200T
-
Modular design for cropping/HDBaseT function
-
DHCP for IP setting
-
Built-in Ethernet Switch
Specifications
| GENERAL | |
|---|---|
| Dimensions (W x D x H) | 16.7" x 12.3" x 1.75" (425 x 313 x 44.5 mm) |
| Weight | 14.1 lb (6.4 kg) |
| Power supply | Universal AC 100–240V 50/60 Hz with PFC input |

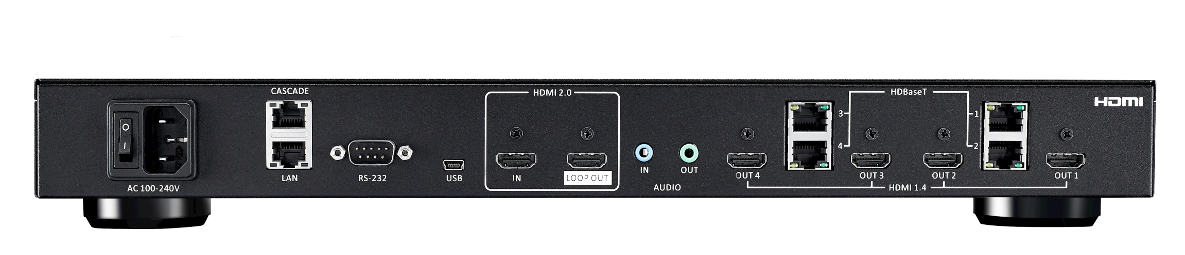

| Connections | Inputs: 1 x HDMI UHD 4K Outputs: 1 x HDMI UHD 4K, 2 x HDMI, 2 x HDBaseT |
See more detailed Specifications PDF on Downloads tab.
Downloads
Compatibility
To check whether this item is compatible with your equipment, use the form below.
