Optoma ZH507+

Laser DLP Projector, 1080p, 5500 Lumens, D:W 1.4-2.24:1, Vert. Lens Shift
Item #0601-3957 Model #ZH507+

Overview

Optoma ZH507+

High brightness smart DuraCore laser projector

The ZH507+ projector offers true convenience with low maintenance and longer-life laser technology in a small and lightweight chassis with an impressive 5500 lumens brightness.

With 1.6 zoom, vertical lens shift and built-in 10W speakers, the ZH507+ is part of a range of products that come with the added control flexibility of Crestron. It supports built-in Smart functions such as CreativeCast Pro, allowing for wireless presentations and the shift to "bring your own devices" (BYOD). Support of Optoma Management Suite Cloud allows you to control and manage the ZH507+ from any location.

Suitable for a wide variety of applications, the Full HD 1080p ZH507+ is 16:9 native, making it perfect for large venues, education, museums, houses of worship and anywhere a sharp and bright image is required.



Key Features:
  • Bright Full HD 1080p DuraCore laser projector: 5500 lumens
  • Versatile: 1.6x zoom, vertical lens shift and portrait mode
  • Built-in smart functions: CreativeCast Pro and Optoma Management Suite Cloud compatible
  • Ultimate control: Crestron, Extron, AMX, PJ-Link and Telnet LAN commands

Features

  • DuraCore: Industry leading long lifetime is achieved using Optoma’s DuraCore technology, implementing advanced laser diode cooling techniques and an innovative dust resistant design.

  • Connect any device: Wirelessly broadcast, share or stream your content to the big screen with CreativeCast Pro™. Screen mirror high-quality images, video, documents and audio from your smartphone, laptop or PC — all with the touch of a button.

  • Remote support with Management Suite solution: Teachers can have peace of mind knowing their IT managers can support them remotely using Optoma’s Management Suite (OMS) solution. IT managers can monitor and diagnose issues with any AV display so teachers aren't left in the dark. Teachers can also set alerts and broadcast emergency announcements.

  • Full HD 1080p (1920×1080) resolution: gives you sharp and detailed images from HD content without downscaling or compression, perfect for watching Blu-ray movies, HD broadcasting and playing video games.
  • IP6X Airtight optical engine: Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability — paramount for 24/7 maintenance-free operation in challenging environments.
  • HDR compatibility: Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth. It’s like looking through a window.
  • Superior contrast: Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks. Images come alive and text appears crisp and clear  — ideal for business and education applications.
  • Amazing colors: Optoma projectors provide reliable color performance suitable for any content and environment, from accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.
  • Vertical Lens Shift: simplifies installation by providing a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
  • Four corner correction: lets you adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and requires installation at an angle.
  • Portrait projection: Ideal for digital signage applications. You can rotate your projector 90 degrees to project a portrait image.
  • 360 projection: Images can be projected over a 360° range along the projector’s horizontal axis. (For more information please refer to the user manual.)
  • Wide range of options let you control and monitor the projector remotely:
    • RS232: Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system
    • AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
    • Crestron RoomView: Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
    • Extron IPLink compatible: Allows for easy installation with Extron control systems

  • PJLink protocol: incorporated into the projector to allow for easy installation with PJLink compatible control systems.

  • Telnet: This model is able to receive commands via telnet allowing for easy installation with Telnet compatible control systems.

  • Full 3D: Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3D media servers.

  • Integrated speaker: A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
  • USB-Power: Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
  • AV mute:  Direct your audience's attention away from the screen by blanking the image when not needed.
  • Quick resume: This feature allows the projector to be instantly powered on again if it is accidentally switched off.
  • Auto power off: To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used.
  • Direct power on: The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
  • Direct power off: Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.
  • 24/7 operation: designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

Specifications

DISPLAY/IMAGE
Display Technology DLP™
Resolution
 1080p Full HD (1920x1080)
Brightness
 5,500 lumens
Contrast ratio
 300,000:1
Native aspect ratio
 16:9
Aspect ratio - compatible
 4:3
Keystone correction - horizontal
 ±30°
Keystone correction - vertical
 ±30°
Has vertical auto keystone correction
 Yes
Displayable colors
 1073.4 millions
Horizontal scan rate
 15.375 ~ 91.146 Khz
Vertical scan rate
 50 ~ 85 Hz (120 Hz for 3D)
Uniformity
 80%
Screen size
 20.2" ~ 320.4" diagonal

LIGHT SOURCE INFO
Light source type
 Laser
LASER life
 30,000 hours
OPTICAL
Throw ratio
 1.4:1 ~ 2.24:1
Projection distance
39.37"–393.7"
Zoom
 1.6
Zoom type
 Manual
Focal length
 20.91 ~ 32.62 mm / 0.823" ~ 1.284"
Lens shift
 Vertical +16%
Native offset
 100%
CONNECTIVITY

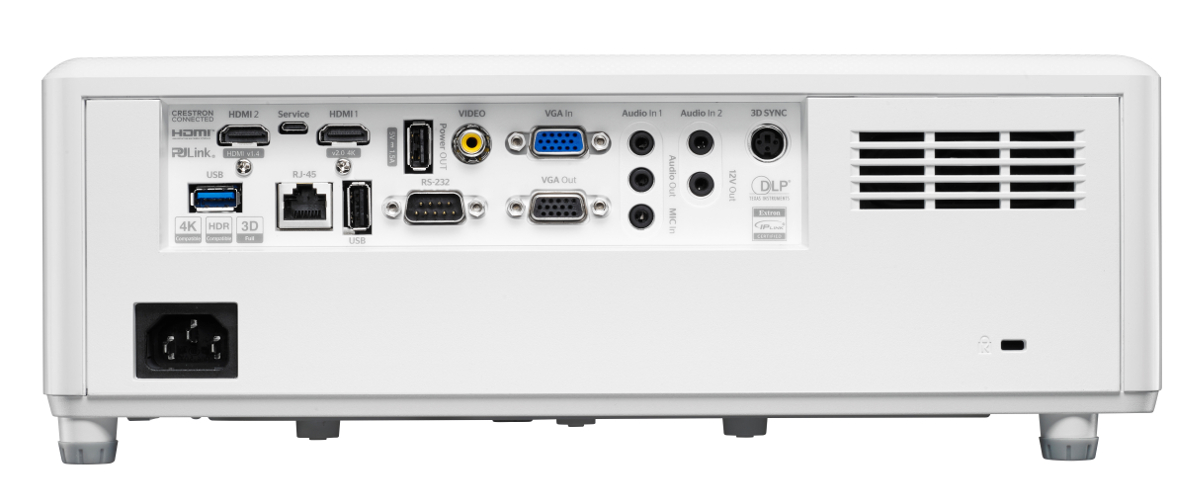

Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5 mm, 1 x Mic 3.5 mm, 1 x Composite video
Outputs 1 x VGA, 1 x Audio 3.5 mm, 1 x USB-A power 1.5 A
Control 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x 3D sync

GENERAL
Noise level (typical)
 30 dB
Noise level (max)
 32 dB
PC compatibility
 UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
 NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
 Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
 Full 3D
Security
 Security bar, Kensington Lock, Password protected interface
IP rating
 IP6X
OSD / display languages
 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
 Yes
360° operation
 Yes
Operating conditions
 41°F~104°F / 5°C~40°C, max altitude 9843 ft / 3000 m, max humidity 85%
Remote control
 Data remote with mouse function
Speaker count
 2
Watts per speaker
 10 W
Input lag
 16.20 ms
Optional wireless models
 UHDCast Pro, QuickCast Bundle, QuickCast starter kit



NETWORKING
LAN - control
 Yes



POWER
Power supply
 100 ~ 240 V, 50–60 Hz
Power consumption (standby)
 < 0.5 W
Power consumption (min)
 227 W
Power consumption (max)
 282 W
WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
 13.27" x 10.43" x 4.82" (337 x 265 x 122 mm)
Net weight
 9.92 lb (4.5 kg)

What's in the Box:

  • ZH507+ projector
  • AC power cord
  • Remote control
  • 2x AAA batteries
  • Basic user manual
