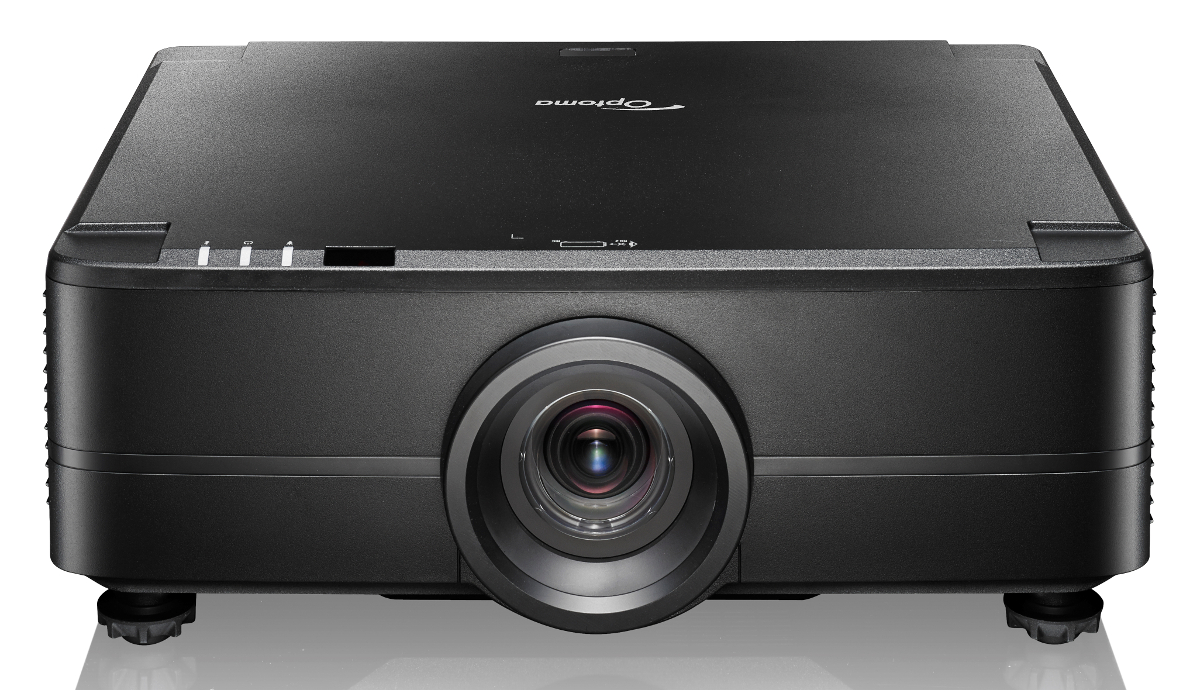

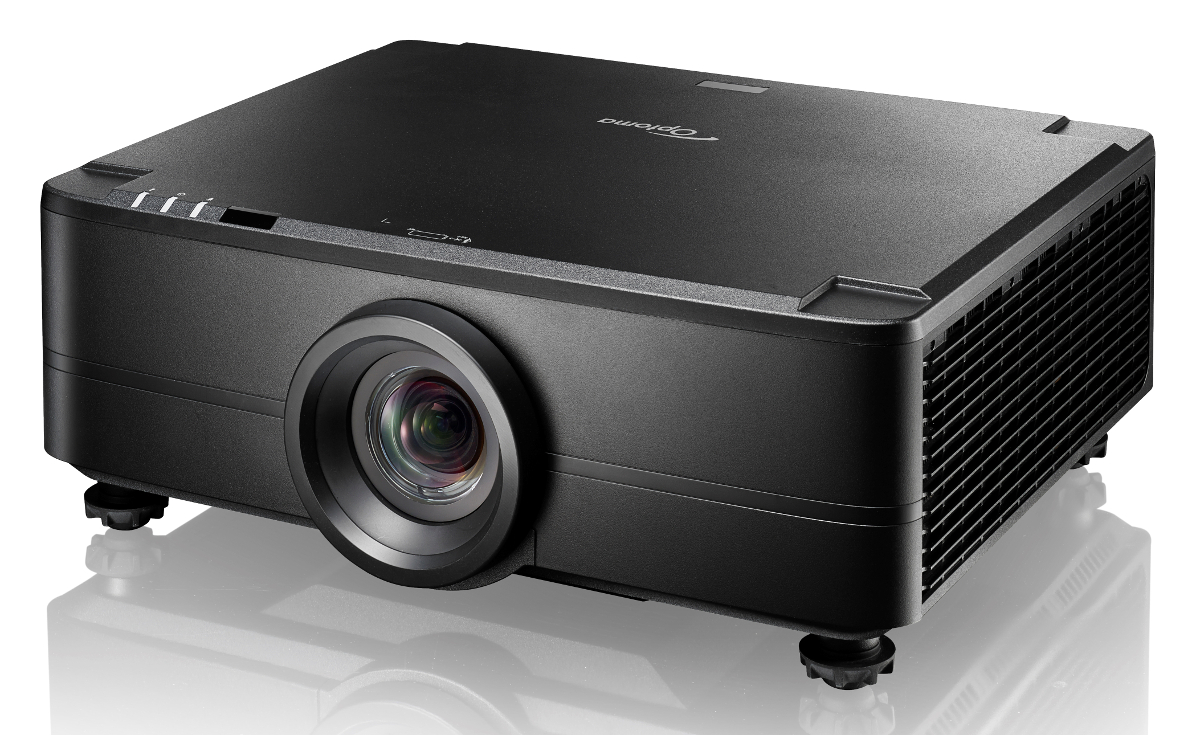

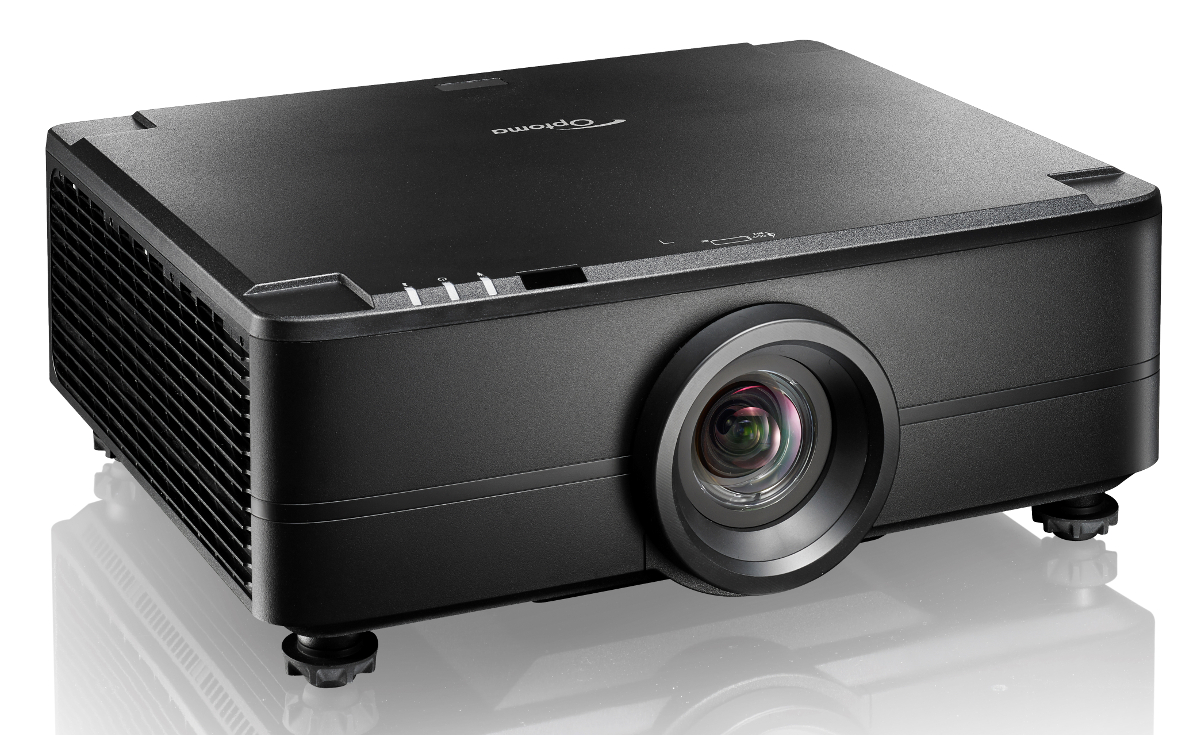

Optoma ZU725TST

Laser DLP Projector, WUXGA, 7200 Lumens, D:W 0.75-0.95:1, Motorized Lens Shift and Zoom, 3-year warranty, first year express advance replacement, 5-year/12K-hour light source warranty
Item #0601-3960 Model #ZU725TST

Overview

Optoma ZU725TST

Ultra bright 7200-lumen professional installation laser projector

At 7200 lumens with 4K and HDR compatibility, the ZU725TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include motorized zoom and focus, full motorized lens shift, and built-in dual 10W speakers.

High brightness, color precision and quiet operation, alongside a 1.26x zoom, make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.

The added control flexibility of HDBaseT and LAN make this projector an affordable install-and-forget solution.


Key Features:
  • 7200-lumen DuraCore laser projector — ultra bright for immersive installations
  • Full motorized lens shift — ideal for a simple setup
  • Large zoom range  1.26x motorized zoom expands placement opportunities
  • 30,000 hours of virtually maintenance-free operation

Features

  • DuraCore: Industry-leading lifetime is achieved using Optoma’s DuraCore technology by implementing advanced laser diode cooling techniques and an innovative dust resistant design.
  • Full lens shift: makes installation simple and hassle-free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.
  • Four corner correction: Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image, making it ideal for image stacking, uneven walls or where projector placement requires installation at an angle.
  • IP5X dust-resistant optical engine: Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry-leading durability — paramount for 24/7 maintenance-free operation in challenging environments.
  • HDBaseT™: Uncompromising, uncompressed Full HD video, audio, network and control commands are all delivered on a single CAT-type cable up to 100 meters/328 feet without signal loss, making installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity, saving time and reducing costs.
  • HDR compatible: Capable of receiving and displaying HDR meta data, Optoma HDR-compatible projectors allow you to see far more detail and texture. Objects look more solid and lifelike, and the extra detail creates a greater sense of depth. It’s like looking through a window.
  • Portrait projection: Ideal for digital signage applications, you can rotate your projector 90 degrees to project a portrait image.
  • 360 projection: Images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
  • Integrated warping and edge blending processor: enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projector's on-screen display or with PC software, depending on the model.

    (Note: Compatible multi output graphics card with overlap function is required.)

  • Color Management System (CMS): Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings of your projector for optimal precision.

  • True AV mute: enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality, no light is emitted from the projector, giving 100% blackout on screen.
  • Full 3D: Optoma projectors can display true 3D content from almost any 3D source, including 3D-compatible graphics cards, 3D broadcasting, and the latest generation 3D media servers.
  • Wired remote: The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector — invaluable when using multiple units during live events.
  • Direct power off: Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
  • Constant power: Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life, or anywhere in-between.
  • Constant brightness: Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time — ideal for ensuring constant brightness for fine-tuned installations
  • Telnet: This model is able to receive commands via telnet allowing for easy installation with Telnet-compatible control systems.
  • Wide range of options to control and monitor the projector remotely:
    • RS232: Optoma projectors come with an extensive set of RS232 commands, making it easy to manage using any control system.
    • AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
    • Crestron RoomView: Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
    • Extron IPLink compatible: Allows for easy installation with Extron control systems.

Specifications

DISPLAY/IMAGE
Display technology
DLP
Resolution
WUXGA (1920x1200)
Brightness
7,200 lumens
ANSI brightness
6,000 lumens
Contrast ratio
3,000,000:1
Contrast ratio - full on/off
1,100:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3, 16:9; 16:10
Keystone correction - horizontal
30°
Keystone correction - vertical
15°
Displayable colors
1073.4 millions
Uniformity
95%
Screen size

50" ~ 300" (1.27 m ~ 7.62 m) diagonal

LIGHT SOURCE INFO
Light source type
DuraCore Laser
LASER life
30,000 hours
OPTICAL
Throw ratio

0.75:1 ~ 0.95:1

Projection distance

31.1" – 244.5" (0.79 m –  6.21 m)

Zoom
1.26x
Zoom type
Motorized
Focal length

11.11 ~ 14.16 mm

Lens shift

Vertical: ±50%, Horizontal: ±15%

CONNECTIVITY
Inputs

1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5 mm

Outputs

1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5 mm

Control

1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232

GENERAL
Noise level (typical)

34 dB

Noise level (max)
36 dB
3D
Full 3D
Security
Security bar, Kensington Lock
IP rating
IP5X
OSD / display languages

9 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional)

24/7 operation
Yes
360° operation
Yes
Remote control

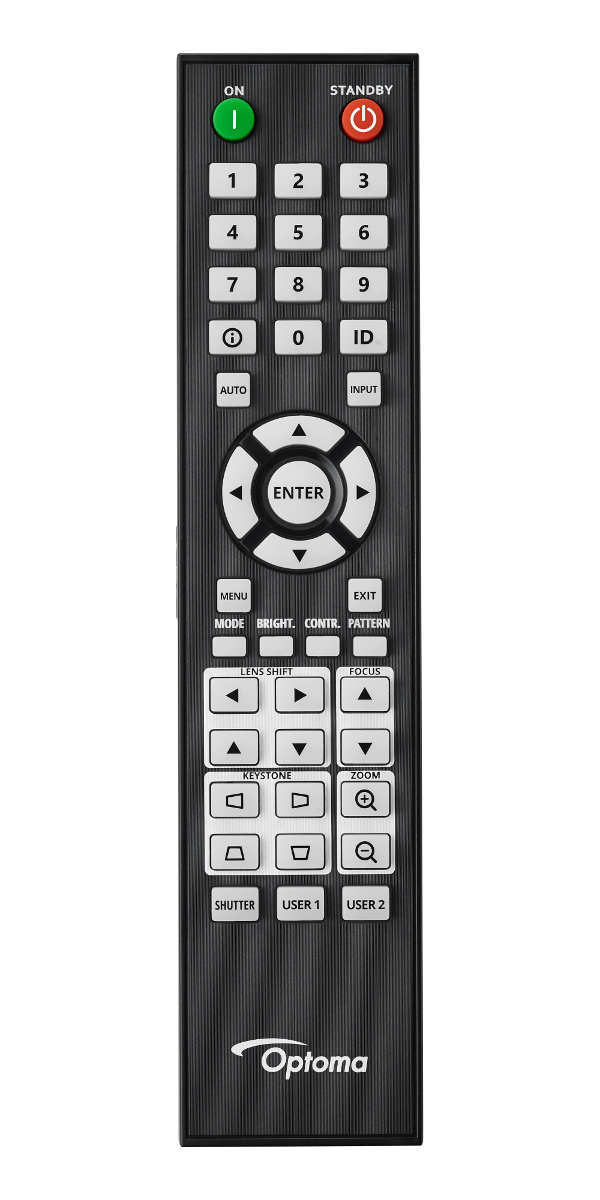

Backlit ProAV remote

Speaker count
2
Watts per speaker
10 W

NETWORKING
LAN - wireless networking
No
LAN
Yes
POWER
Power supply

AC 90–264 V, 50/60 Hz with PFC input

Power consumption (min)

260 W

Power consumption (max)

520 W

Power consumption (standby)
0.5 W
WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
19.13" x 15.53" x 6.93" (486 x 394.5 x 176.0 mm) without feet
19.13" x 15.53" x 7.30" (486 x 394.5 x 185.5 mm) with feet
Weight

27.8 lb (12.6 kg)

Warranty

  • 3-year parts and labor limited warranty on the projector, with first year express advance replacement
  • 5-year or 12,000-hour light source warranty (whichever comes first)
