Optoma ZU607TST

Laser DLP Projector WUXGA, 6000 Lumens, D:W 0.58:1, 3-Year Warranty
Item #0601-3982 Model #ZU607TST

Overview

Optoma ZU607TST

High Brightness Short-Throw Laser Projector

At 6000 lumens, with 4K and HDR compatibility, the Optoma ZU607TST features a dust resistant IP6X certified optical engine for 24/7 operational capabilities and low maintenance. The ZU607TST short-throw projector features extremely long-life laser technology, manual horizontal and vertical lens shift and built-in 15W speakers.

Suitable for a wide variety of applications, this high-brightness projector is perfect for any place that requires a clean bright image including large venues, classrooms, lecture halls, museums, houses of worship, digital signage or immersive installations.

The added control flexibility of HDBaseT 3.0 and LAN make the short-throw ZU607TST an affordable set-and-forget solution.

Key Features:
  • Bright short-throw WUXGA laser projector with 6000 lumens
  • 30,000 hours maintenance-free laser light source at full brightness
  • HDBaseT 3.0 connectivity
  • 4K, HDR and HLG Compatibility

Features

  • Lights on viewing: This versatile projector combines high brightness and vivid colors for vibrant, true-to-life visuals in any environment (with no direct sunlight or lights directed on screen). Make a lasting impression with bigger and bolder presentations any time of day.

  • HDR and HLG compatible: Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content, this Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
  • Superior contrast: Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich black. Images come alive and text appears crisp and clear — ideal for business and education applications.

  • Short Throw Lens: lets you project an impressive 100" image from just over 3.3 feet (1 meter) away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.

  • DuraCore Technology: achieves industry-leading long lifetime by implementing advanced laser diode cooling techniques and an innovative dust resistant design.

  • Auto keystone: automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat. (Auto keystone only adjusts the image in the vertical plane.)

  • Four corner correction: Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and requires installation at an angle.

  • Game mode: optimizes your projector for maximum contrast and vivid colors to capture every detail, leaving you time to focus on winning.

  • HDBaseT™: Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT-type cable capable up to 100 meters/328 feet, without signal loss, make installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity, saving time and reducing costs.

  • Full 3D: Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3D media servers.

  • Control: A wide range of options let you control and monitor the projector remotely.
    • RS232: Optoma projectors come with an extensive set of RS232 commands, making it simple and easy to manage using any control system.
    • AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
    • Crestron RoomView: Using the compatible RoomView® software, you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
    • Extron IPLink compatible: Allows for easy installation with Extron control systems
  • Telnet: This model is able to receive commands via telnet allowing for easy installation with Telnet compatible control systems.
  • MHL: Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos and share photos on the big screen.
  • USB-Power: Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
  • Integrated speaker: A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
  • IP6X Airtight optical engine: Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry-leading durability, paramount for 24/7 maintenance-free operation in challenging environments.
  • Auto power off: To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used.
  • Direct power on: The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a "master" power switch.
  • 360° projection: images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
  • Portrait projection: Ideal for digital signage applications, you can rotate your projector 90 degrees to project a portrait image.
  • 24/7 operation: Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24-hour terms and conditions.

24/7 Operation — Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours.

Specifications

DISPLAY/IMAGE
Display technology
 DLP
Resolution
 WUXGA (1920x1200)
Brightness
 6,000 lumens
Contrast ratio
 300,000:1
Native aspect ratio
 16:10
Aspect ratio - compatible
 4:3, 16:9; 16:10
Keystone correction - horizontal
 ±15°
Keystone correction - vertical
 ±15°
Has vertical auto keystone correction
 Yes
Displayable colors
 1073.4 millions
Horizontal scan rate
 5 ~ 140 kHz
Vertical scan rate
 24 ~ 120 Hz
Uniformity
 85%
Screen size
 30" ~ 300" diagonal
LIGHT SOURCE INFO
Light source type
 Laser
LASER life
 30,000 hours
OPTICAL
Throw ratio
 0.58:1
Projection distance
 14.96"–147.64"
Zoom type
 Fixed
Focal length
 8.51 mm
Lens shift
 Vertical -100 ~ 110%, Horizontal: ±4%
Native offset
 110%

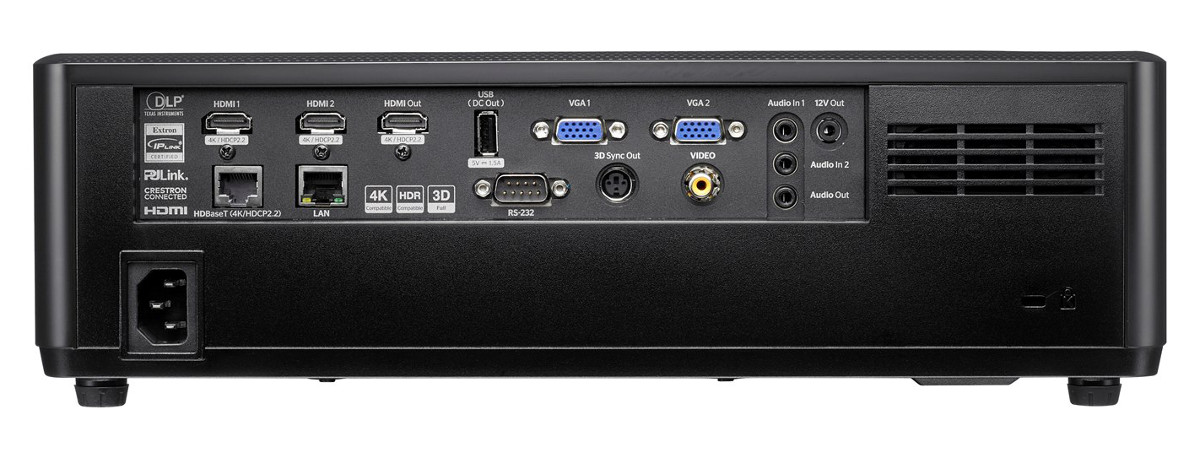

CONNECTIVITY
Inputs
 2 x HDMI 2.0, 2 x VGA, 1 x Composite video, 2 x Audio 3.5 mm, 1 x USB-A power 1.5A
Outputs

1 x HDMI 2.0, 1 x Audio 3.5 mm, 1 x 3D sync, 1 x 12V trigger
Control

1 x HDBaseT 4K, 1 x RJ45, 1 x RS232

GENERAL
Noise level (min)

33 dB
Noise level (max)
 36 dB
3D
 Full 3D
Security
 Security bar, Kensington Lock, Password protected interface
IP rating
 IP6X
OSD / display languages
 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
360° operation
 Yes

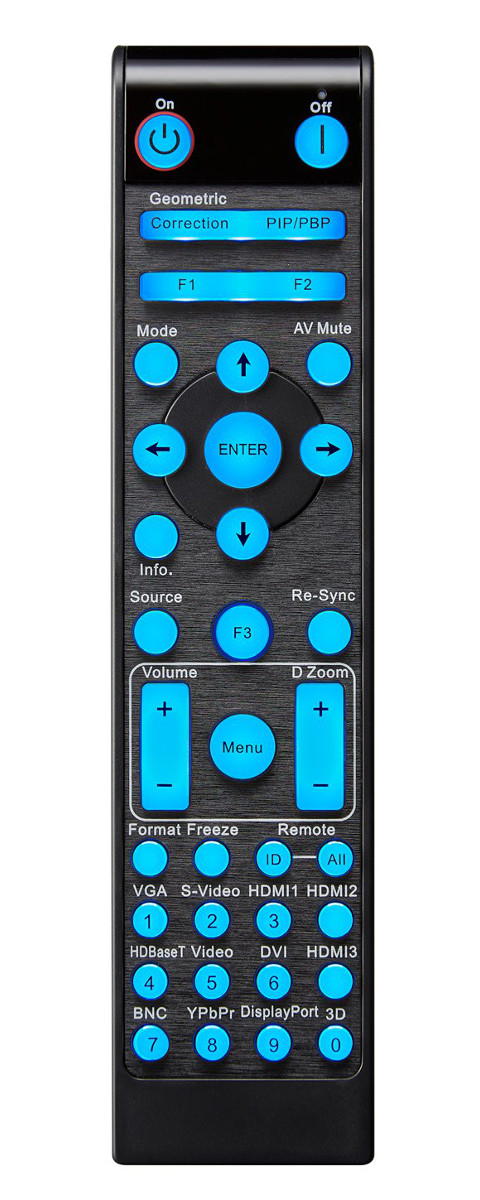

Remote control

Backlit ProAV remote
Heat dissipation

883 BTU/hour
Speaker count
 2
Watts per speaker
 15 W

NETWORKING
LAN - control
 Yes
LAN - wireless networking
 No
LAN
 Yes
POWER
Power supply

Universal AC 100–240V± 10% ~ 50/60 Hz with PFC input
Power consumption (min)

240 W
Power consumption (max)

366 W
Power consumption (standby)
 < 0.5 W
WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
 14.72" x 11.89" x 4.61" (374 x 302 x 117 mm)
Weight

13.89 lb (6.3 kg)

In the Box

  • ZU607TST projector
  • AC power cord
  • Remote control
  • 2x AAA batteries
  • Basic user manual

Warranty

  • 3-year parts and labor limited warranty on the projector
